All_in_one_Tablet

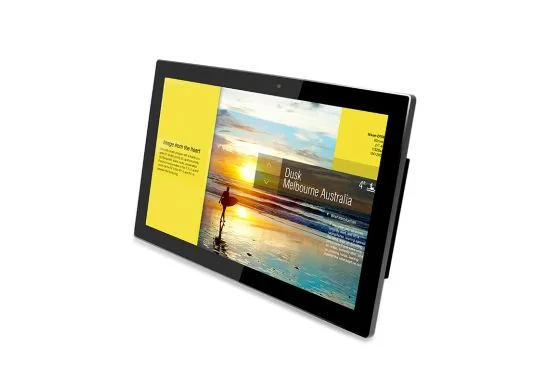

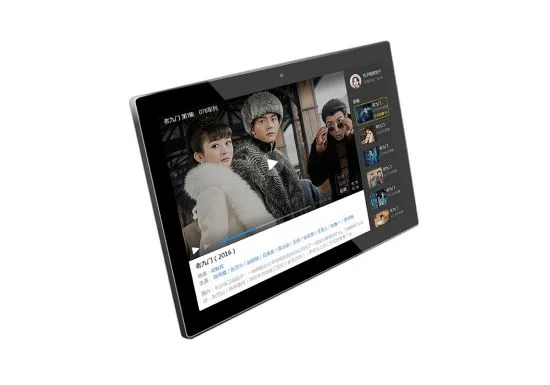

18.5"Smart Signage Tablet Android All-In-One_SWRT185A
Quick Specifications
- ModelSWRT1851
- Display screen18.5" TFT 1366*768
- Touch screen18.5-inch capacitive touchscreen with 10-point support (optional)
- CPURK3399 is standard (RK3566/RK3568 optional)
- Multi-mediaHigh-definition video decoder (4K@60fps and FHD 1080p@60fps) HD video encoder (up to 1080@30fps) The graphics processor supports 3D graphics through OpenGL ES 1/2/3.0, OpenVG 1.1, and DirectX 11. 2D/3D GPU (Mali T764) Power Management Unit (PMU) I2S Host and Slave Interface Audio
- DDRFlash Dual Channel DDR3/L 4G DDR eMMC/NAND flash 32G
Product Overview
Detailed description is not available.
Technical Specifications
Model
SWRT1851
Display screen
18.5" TFT 1366*768
Touch screen
18.5-inch capacitive touchscreen with 10-point support (optional)
CPU
RK3399 is standard (RK3566/RK3568 optional)
Multi-media
High-definition video decoder (4K@60fps and FHD 1080p@60fps) HD video encoder (up to 1080@30fps) The graphics processor supports 3D graphics through OpenGL ES 1/2/3.0, OpenVG 1.1, and DirectX 11. 2D/3D GPU (Mali T764) Power Management Unit (PMU) I2S Host and Slave Interface Audio
DDR
Flash Dual Channel DDR3/L 4G DDR eMMC/NAND flash 32G
Three-axis
Freescale MMA8452Q
Microphone
Built-in microphone
Operating system
OS Android (optional Linux)
Wi-Fi
WiFi Ap6330 Module (Broadcom IEEE 802. 11 a/b/g/n, with built-in wireless network (2.4G/5G) and Bluetooth 4.0)
Ethernet
RJ45 RTL8211E 10M/100M /1000M
Standard Application
Supports music formats MP3,WMA,WAV,OGG,AAC,FLAC,3GP …
Supported video formats
MPEG1/2/4,AVI,WMV,MKV,MOV,VP8, H.263/264/265…
Supported image formats
JPG,BMP,PNG…
Browser
IE browser
Application store
Google Play Store
Adobe Flash Player
V11. 1 or later
HTML5
Support
DLNA
Support
Multiwindow
Support
Inputoutput port
Mini USB 1
Supports data transfer
USB type USB2.0x2
Source
DC 12V 3A,4mm diameter
Push-button
Power button
HDMI
HDMI IN/OUT (optional)
SD card slot
SD
Earphone
20 mW @16Ω, stereo, 3.5mm headphone jack
Loudspeaker
2 built-in 4Ω/3W speakers
Front-facing camera
300,000 or 2,000,000
Size and other
Size 462 mm x 282.5 mm x 37.5 mm
Net weight
2.6 kg
Rough weight
4 kg
Packing measurement
513 mm x415 mm x82 mm
Sheathing material
Standard plastic (ABS+PC) / Metal optional
VESA wall mounting hole
75 millimeters x 75 millimeters
Cell
12.6 V 10,000 mA (optional)
