All_in_one_Tablet

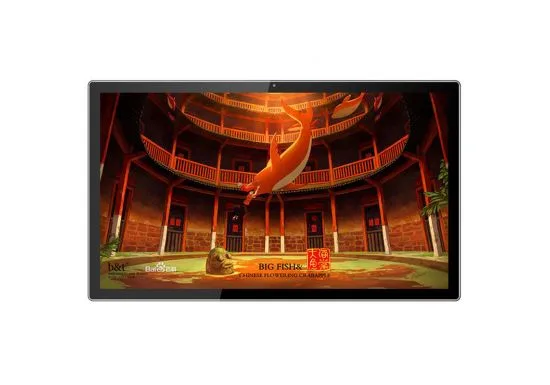

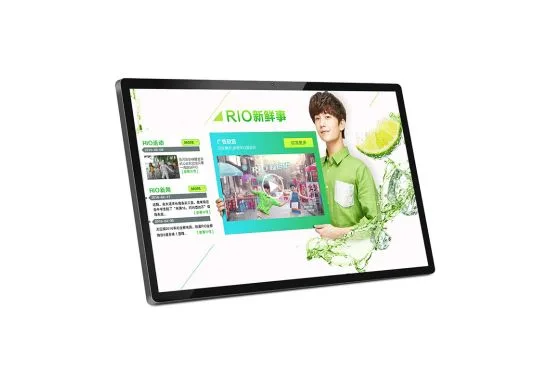

32"Smart Signage Tablet Android All-In-One_SWRT320A
Quick Specifications
- MODEL NO.SWRT320A
- LCD32" TFT 1920*1080 IPS
- TOUCH PANEL32" capacitive touch screen,Support 10-points multi-touch.
- CPURK3399 as standard (RK3566/RK3568 optional)
- MultimediaHD video decoder (4K@60fps and FHD 1080p@60fps) HD video encoder (1080p @ 30fps) GPU offers 3D graphic with OpenGL ES1/2/3.0 and OpenVG 1.1 DriectX11 2D/3D GPU (Mali T764) Strong Power Manage Unit(PMU) I2S Master & Slave Interface for Audio
- DDR/FlashDual Channel DDR3/L 4G DDR
Product Overview
Detailed description is not available.
Technical Specifications
MODEL NO.
SWRT320A
LCD
32" TFT 1920*1080 IPS
TOUCH PANEL
32" capacitive touch screen,Support 10-points multi-touch.
CPU
RK3399 as standard (RK3566/RK3568 optional)
Multimedia
HD video decoder (4K@60fps and FHD 1080p@60fps) HD video encoder (1080p @ 30fps) GPU offers 3D graphic with OpenGL ES1/2/3.0 and OpenVG 1.1 DriectX11 2D/3D GPU (Mali T764) Strong Power Manage Unit(PMU) I2S Master & Slave Interface for Audio
DDR/Flash
Dual Channel DDR3/L 4G DDR
eMMC/NAND flash
32G
Three-axis
Freescale MMA8452Q Micophone Built-in microphone
Operation System
OS Android OS (Linux optional)
Wi-Fi
WiFi AP6330 Module(Broadcom IEEE 802.11 a/b/g/n, Built-in WiFi(2.4G/5G)+Bluetooth 4.0 )
Ethernet
RJ45 RTL8211E 10M/100M /1000M
Standard Applications
Mini USB port 1 MP3,WMA,WAV,OGG,AAC,FLAC,3GP…
USB TYPE A
MPEG1/2/4,AVI,WMV,MKV,MOV,VP8, H.263/264/265…
DC Power
JPG,BMP,PNG…
Button
Internet browse
SD card slot
Apps in Google Play Store
Earphone
V11.1 or later
Speaker
Support
Camera
Digital Living Network Alliance
Multi Window
Support
I/O
Micro USB port 1 For OTG( TP control signal out as HDMI input)
USB TYPE A
USB2.0*2
DC Power
DC 19V 3A, Diameter 5mm
Button
Power
HDMI
HDMI OUT/IN(OPTIONAL)
Micro SD card slot
For SD card
Earphone
20mW @ 16 Ohms ,Stereo,Diameter 3.5mm earphone jack
Speaker
Built-in speaker upto 4Ω/5W x 2
Camera
Optional front camera 30W Or 200W
Size & Other
Size 794.9*444.6*37mm（MAX)
Net Weight
11.03KG
VESA wall mounting
200 mm x 170 mm
Gross Weight
12.86KG
Package Size
850mmx540mmx140mm
Housing materia
Metal
