Wall_Mounted_AD_Display

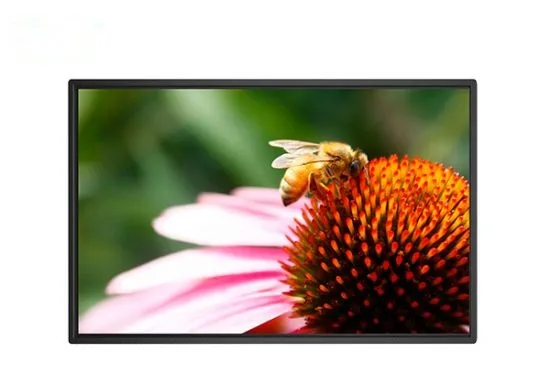

43 Inch Internet wall mounte AD Player_AD4301
Quick Specifications
- Diagonal size43 inches
- typeTFT-LCD
- resolution ratio1920×1080@60Hz
- Brightness (default)300cd/m²
- Contrast (default value)1200:1
- Viewing Angle (V/H)178°/178°
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal size
43 inches
type
TFT-LCD
resolution ratio
1920×1080@60Hz
Brightness (default)
300cd/m²
Contrast (default value)
1200:1
Viewing Angle (V/H)
178°/178°
Response time (gray scale)
8ms
Visible area
939.8mm*527.5mm
colour gamut
73%
be in a poor light
LED
Display scale
16:9
life span
＞30000H
System version
Android
CPU
Standard configuration: RK3566, quad-core ARM Cortex-A 55 & Mali G52 Optional: RK3288/RK3399/RK3576/RK3588
GPU
Mali-G52
basic frequency
1.8G Hz
Memory (DDR4)
2G (4G optional)
Flash memory
16GB (8GB/32GB/64GB available)
Network support
Ethernet, WiFi, wireless peripheral expansion, 3G/4G (optional)
suona
2*8Ω/5W (built-in)
I/O
2 USB 2.0 ports, 1 RJ45 port, 1 HDMI port, 1 TF card slot, and 1 headphone jack
power input
AC/100V~240V
standby power consumption
≤1W Power consumption (typical value): 100 W Physical dimensions of bare machine: 978mm×568mm×62mm (including the hanging bracket)
packing measurement
1110mm*700mm*200mm Wall-mounted bracket hole position: 400mm×200mm Product weight without accessories: 1 6.5 kg
Post-packaged product weight
20 kg
Appearance color
black
cover glass
armoured glass
Installation method
Wall-mounted/Embedded
working temperature
‐5℃~40℃
working humidity
10%RH~90%RH
Display Mode
S-IPS, always-on display, transmissive
