Smart Home Panels

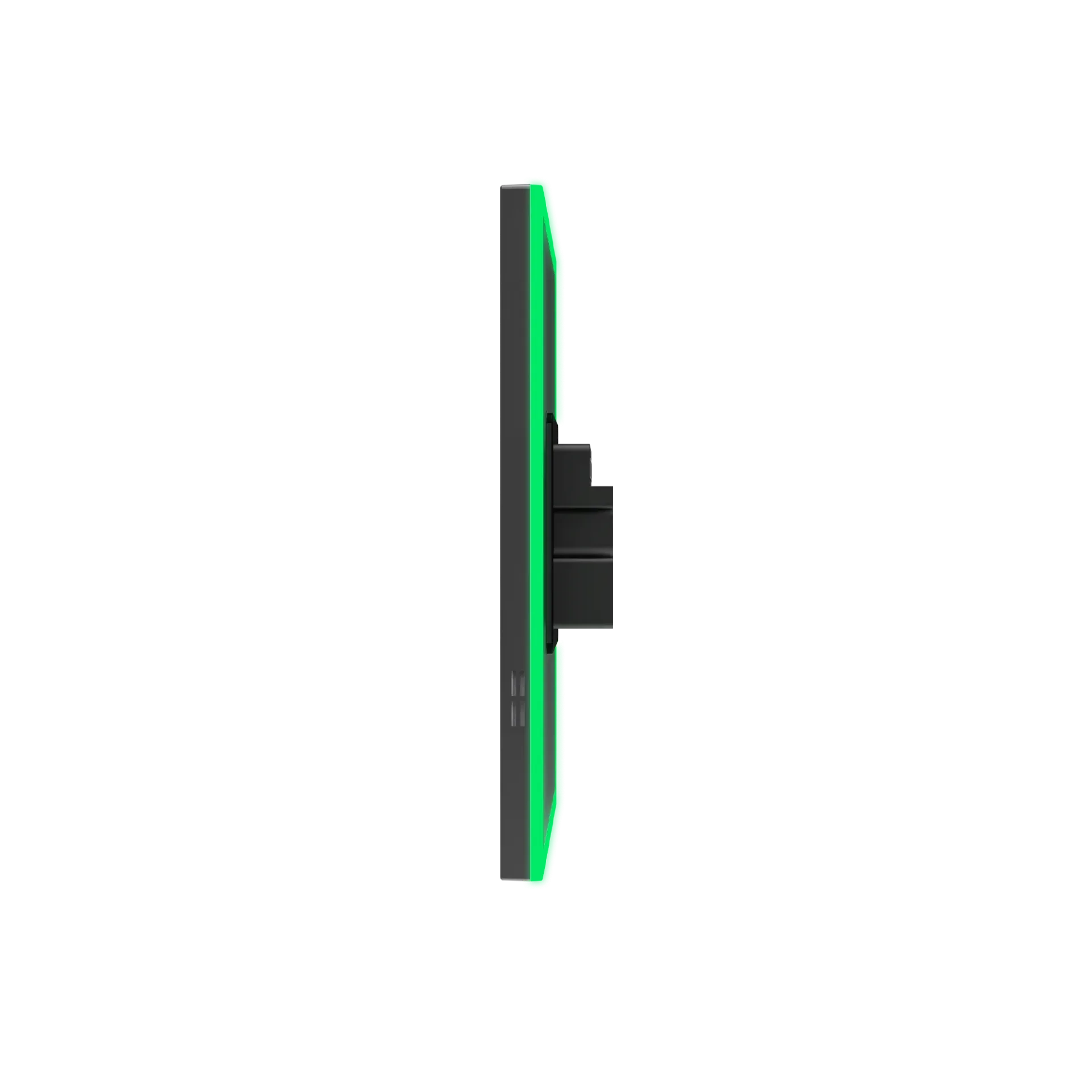

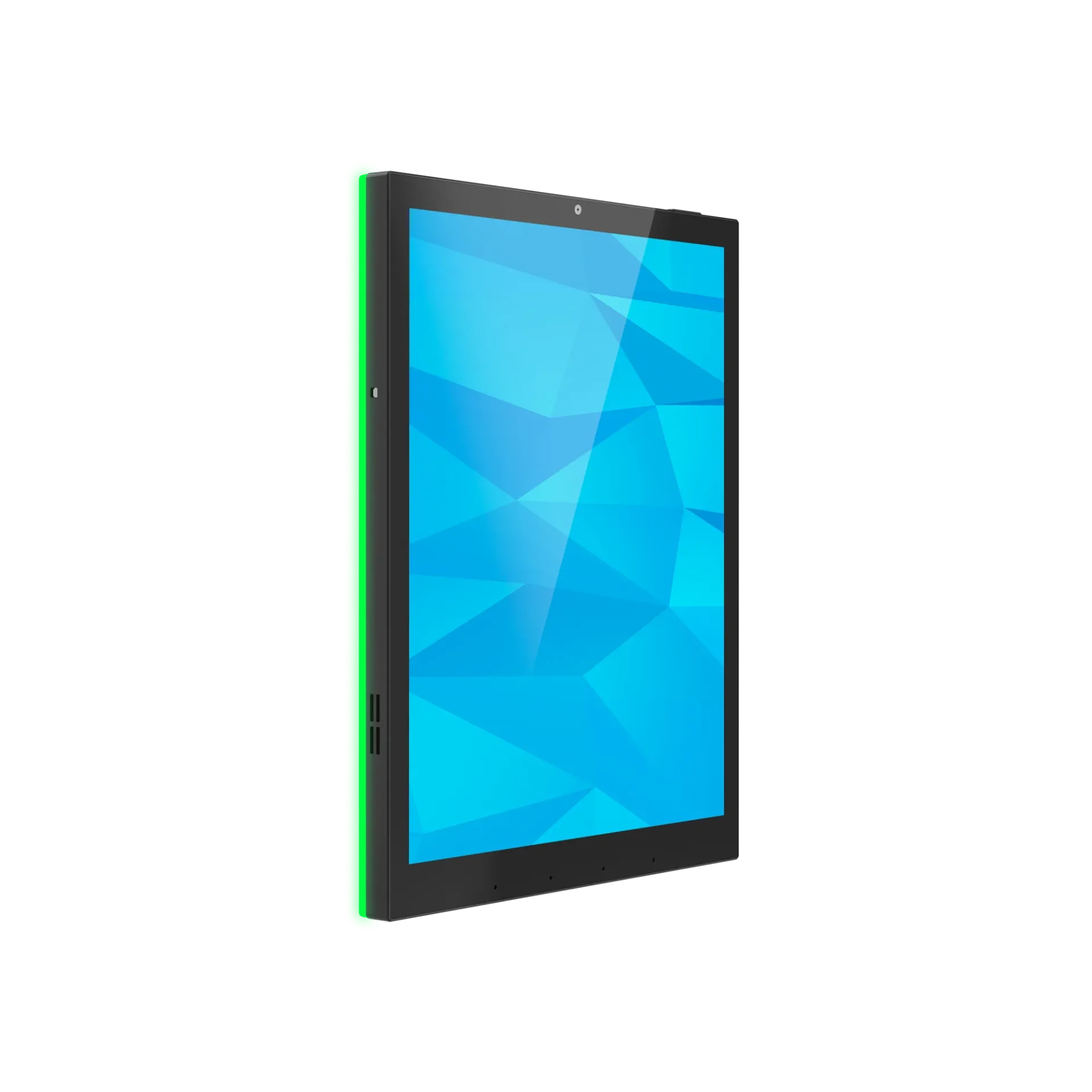

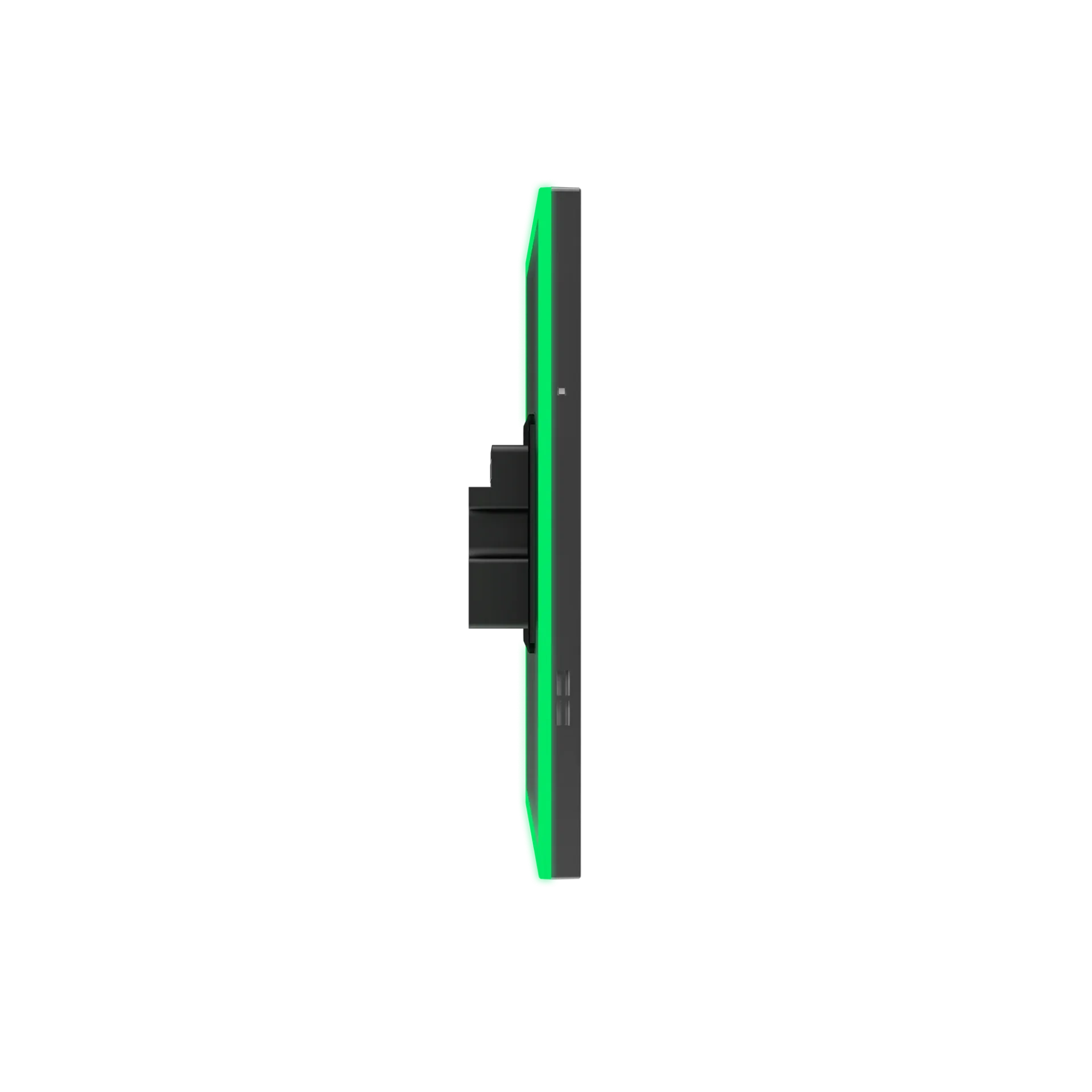

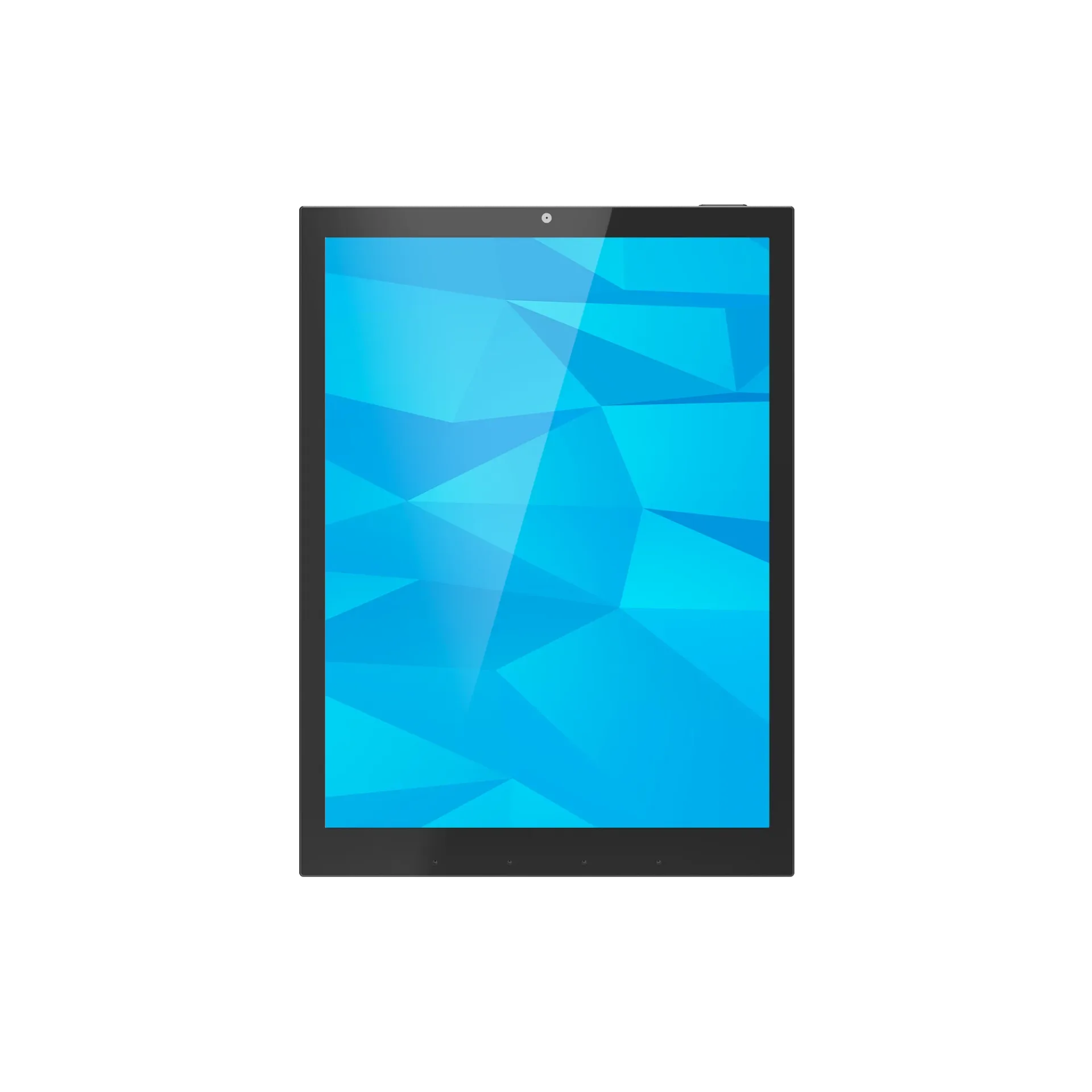

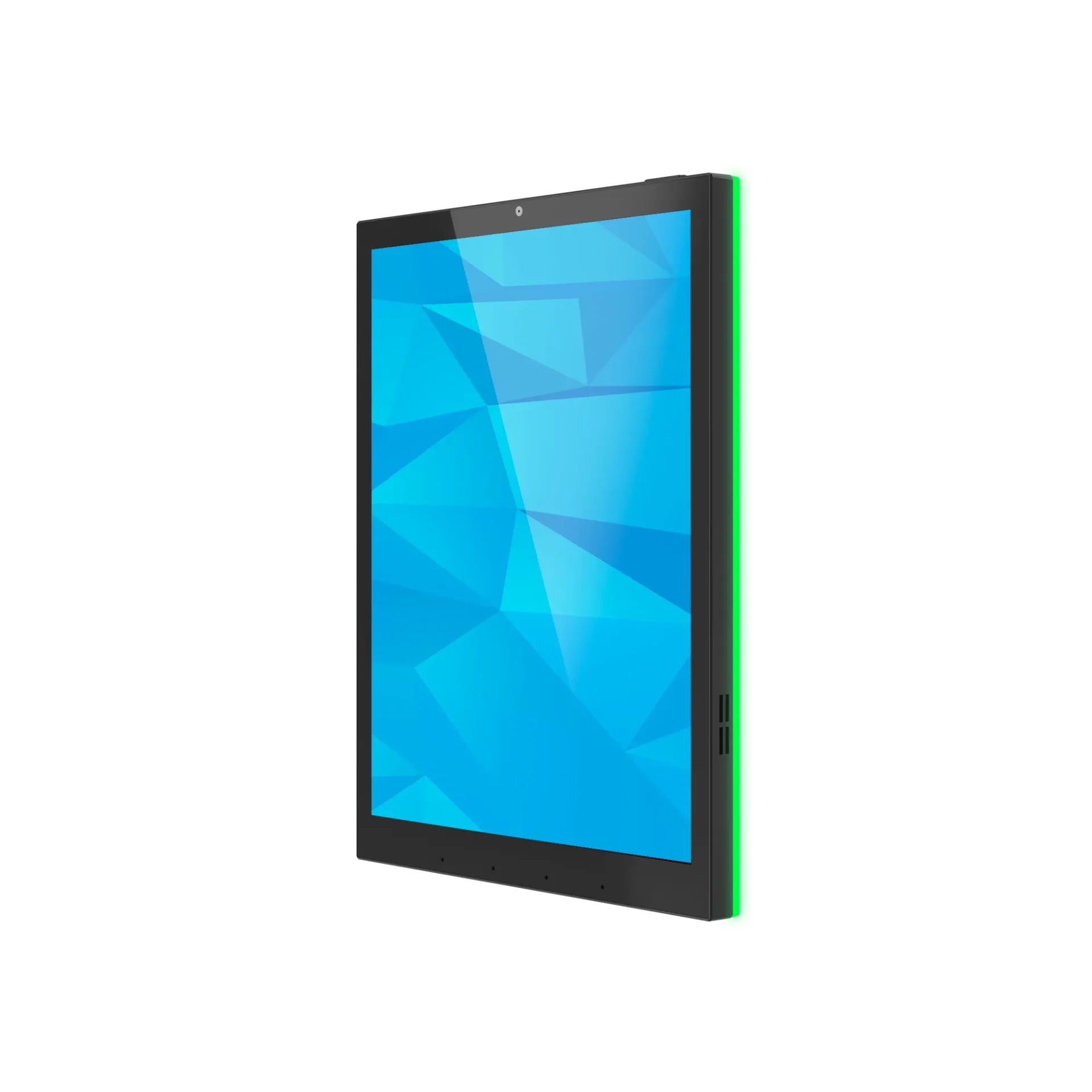

SMT97 9.7" Smart Home Panel
Quick Specifications
- Diagonal Size9.7-inch
- Panel Type9.7 "high-definition full view screen full lamination
- Resolution1536 x 2048 pixels
- Aspect Ratio4:3
- Viewing AngleR/L 85/85, U/D 85/85
- Display ModeNormally black
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
9.7-inch
Panel Type
9.7 "high-definition full view screen full lamination
Resolution
1536 x 2048 pixels
Aspect Ratio
4:3
Viewing Angle
R/L 85/85, U/D 85/85
Display Mode
Normally black
Contrast Ratio
900:1
Luminance
250 nits
Number of Points
10-point
CPU
RK3566 Quad-core cortex A55
RAM
2GB (Optional 4GB)
ROM
32GB (Optional 64GB)
Operating System
Android 13
Dimensions
169.47 x 225.53 x 13.6 mm (L × W × D)
WiFi
IEEE 802.11a/b/g/n/ac/ax (WiFi 6E), 802.15.4/Thread
USB Type-C
USB2.0 supports OTG functionality

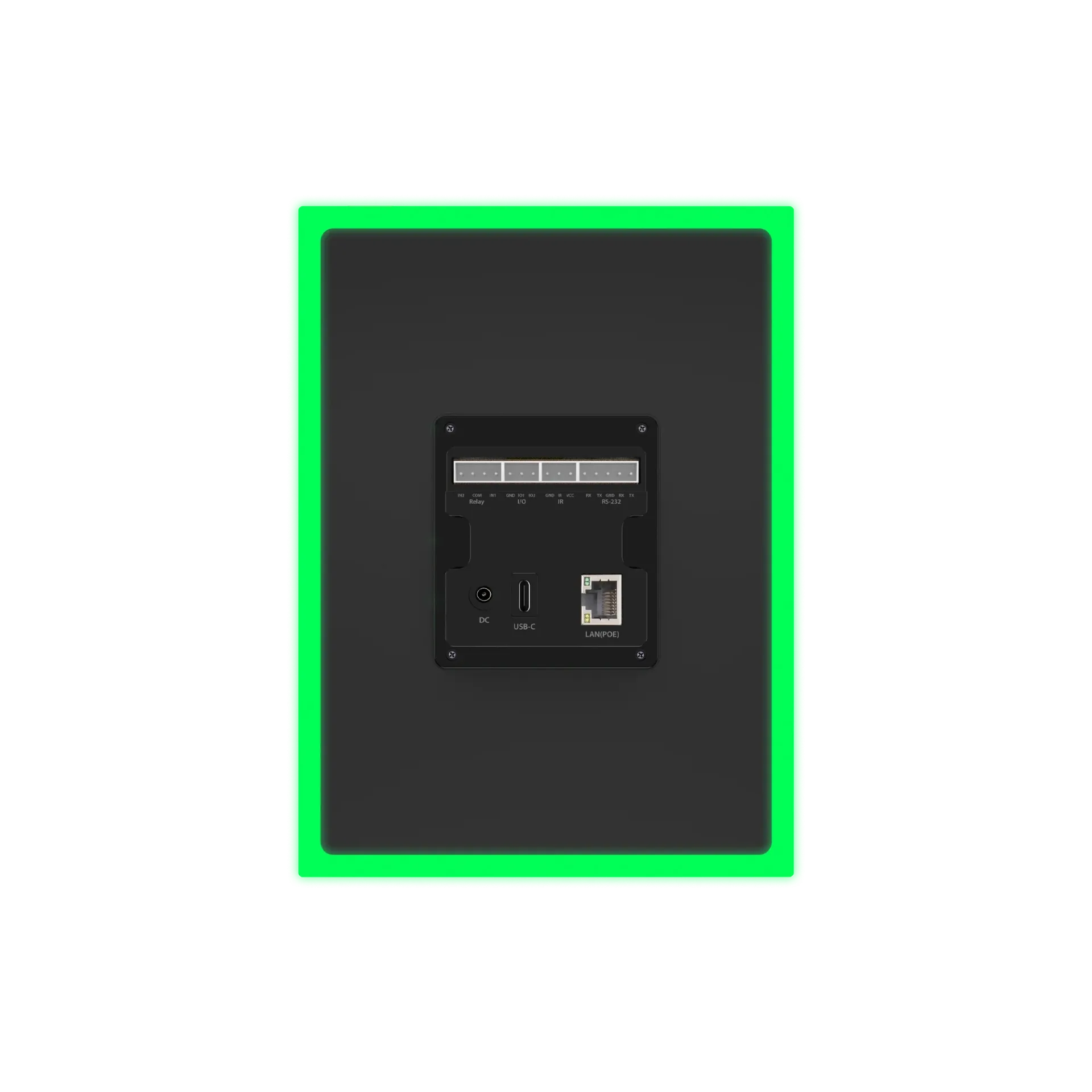

Relay Port
Control home devices that support Relay connections
IR Port
Used for infrared remote control, with an external plug-in receiver, which can control the device
RJ45
Ethernet interface (POE function standard IEEE802.3at, POE+, class 4, 25.5W)
Power Port
DC power input
Video Format
MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc.
Audio Format
MP3/WMA/AAC, etc
JPEG
Color
Black
G-sensor
Support 90 degrees
Speaker
2*2W BOX chamber horn
Microphone
Four microphones
LED light strip
RGB
Camera
5MP from a conventional perspective
Language
Multi-language
Certificates
CCC/CE/FCC/ROHS
Operating Temperature
0℃-40℃
Related
You May Also Like
Smart Home Panels

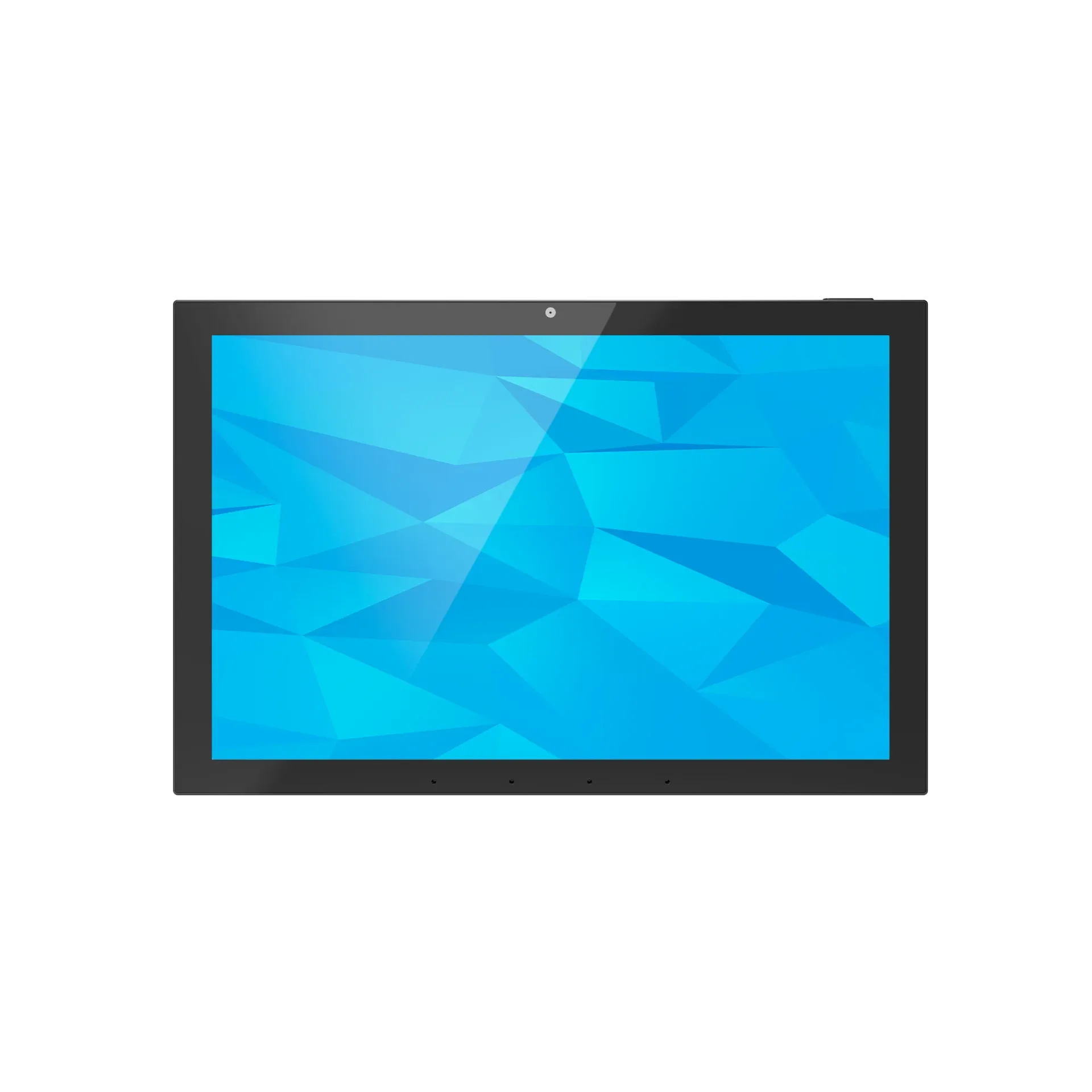

SMT101 10.1" Smart Home Panel
