Desktop Signages

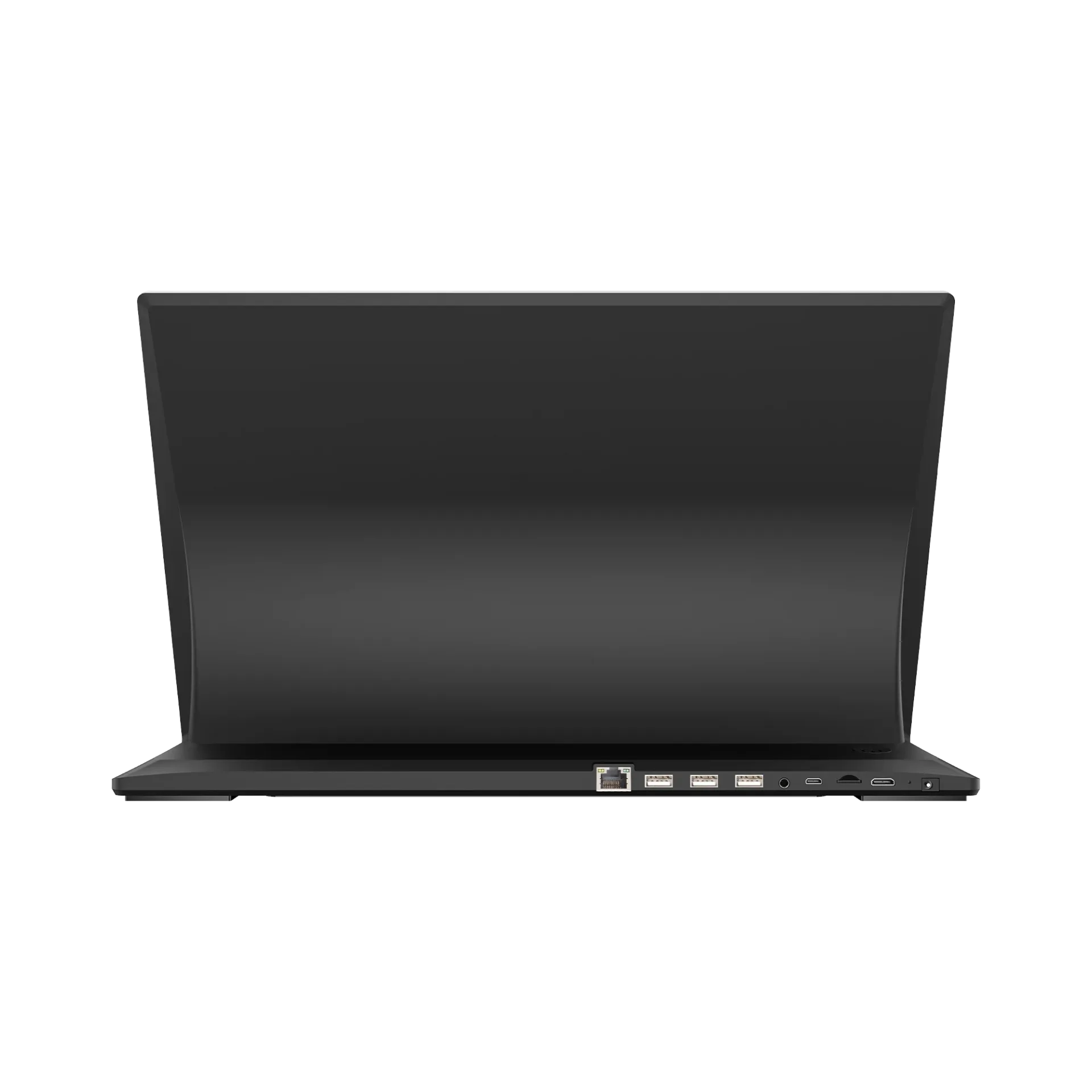

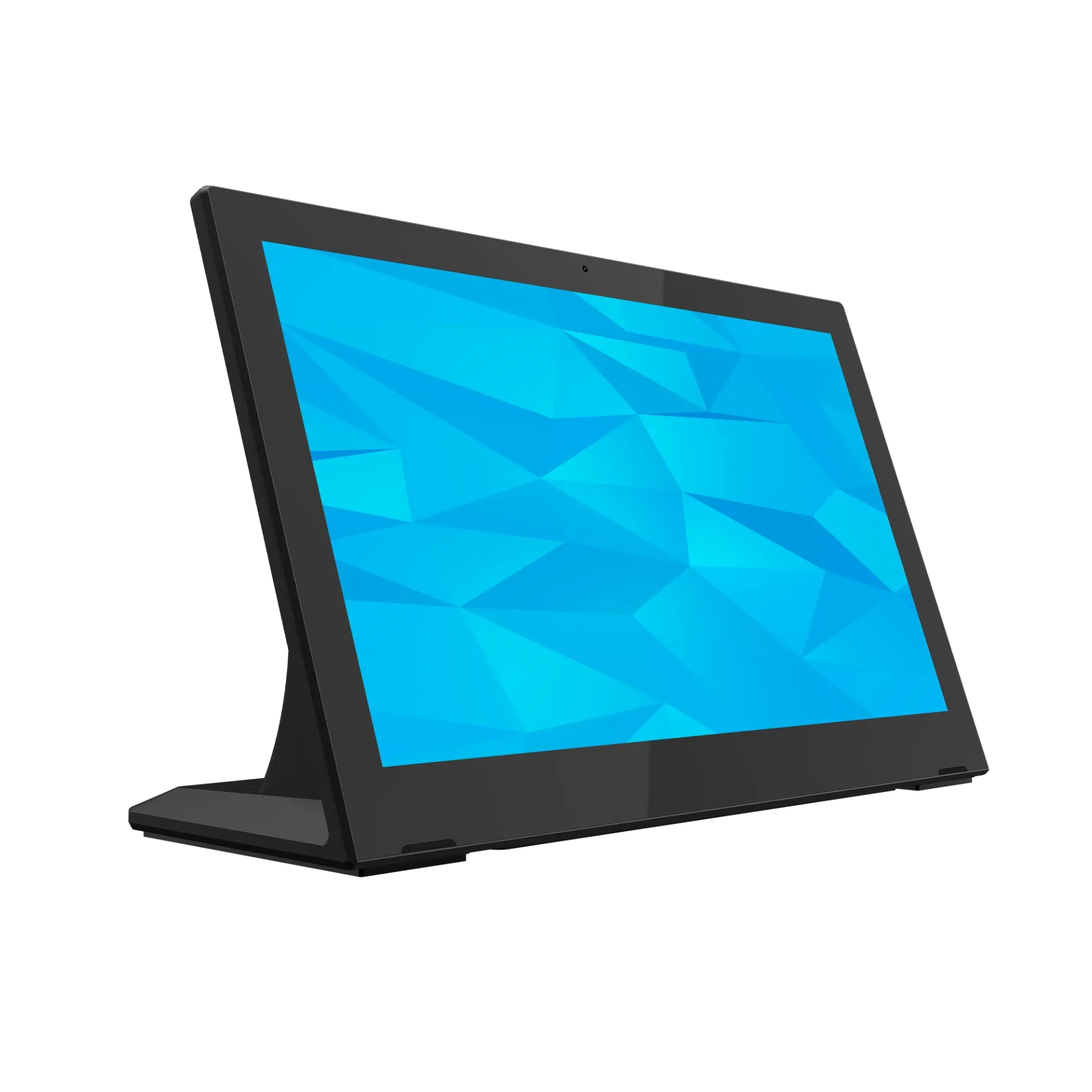

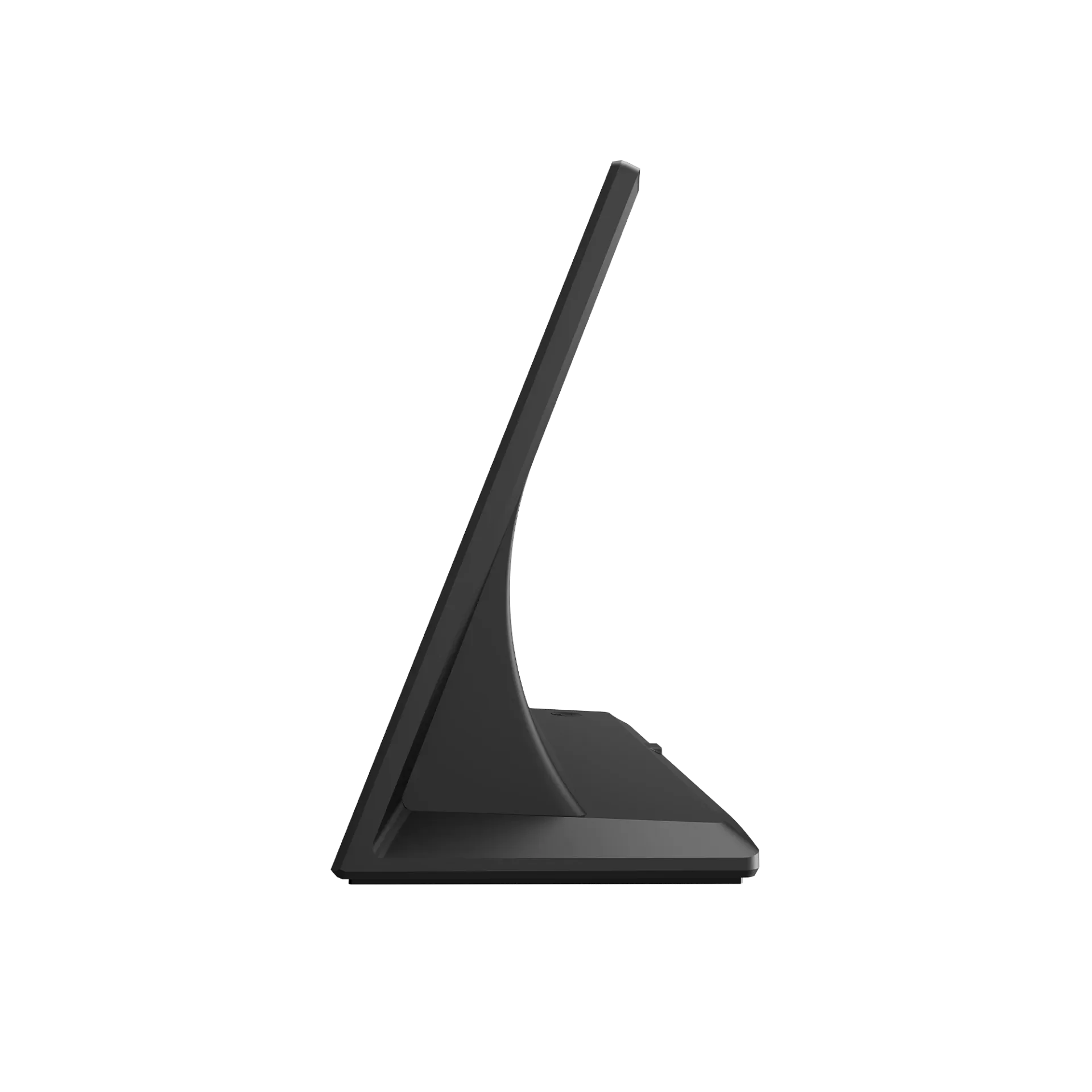

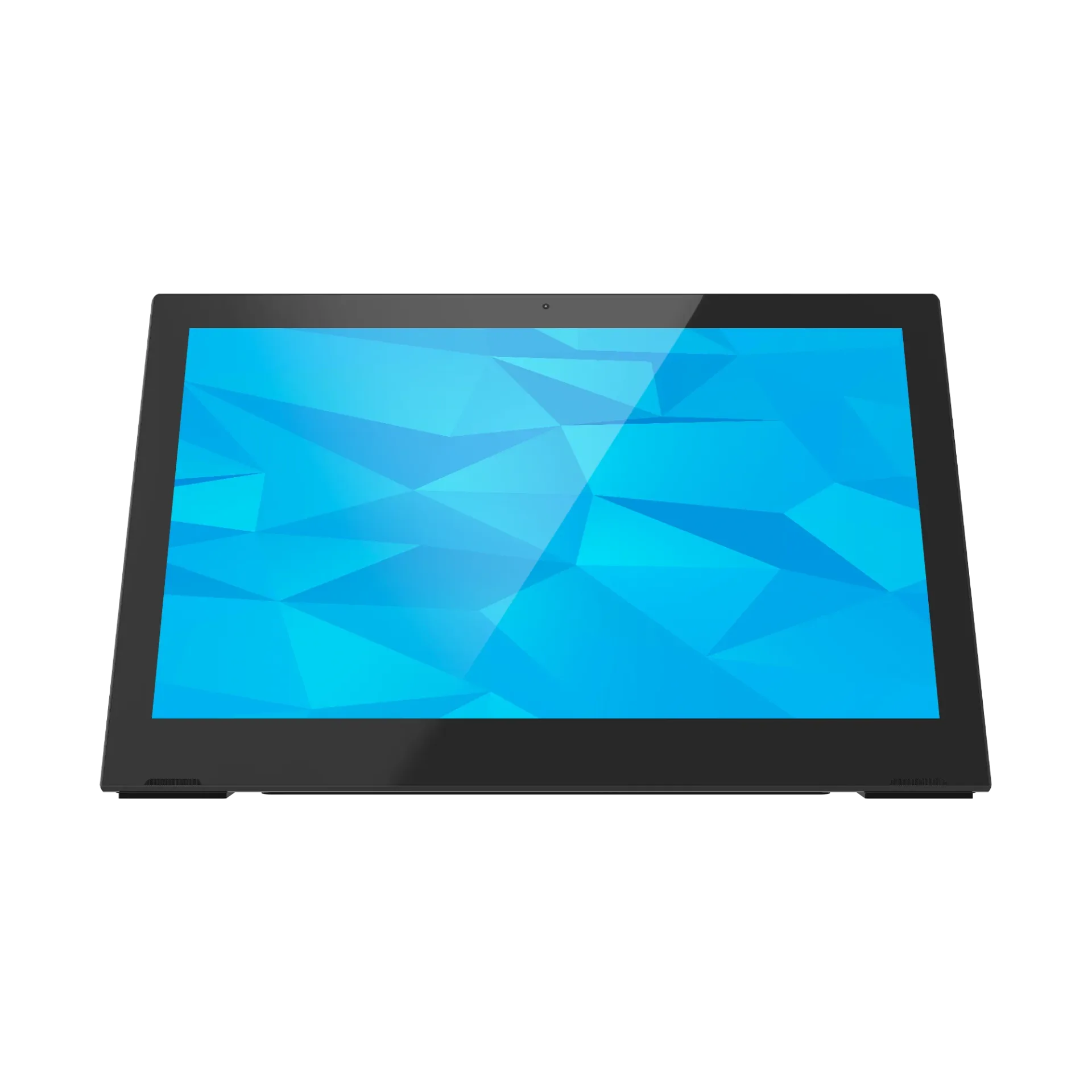

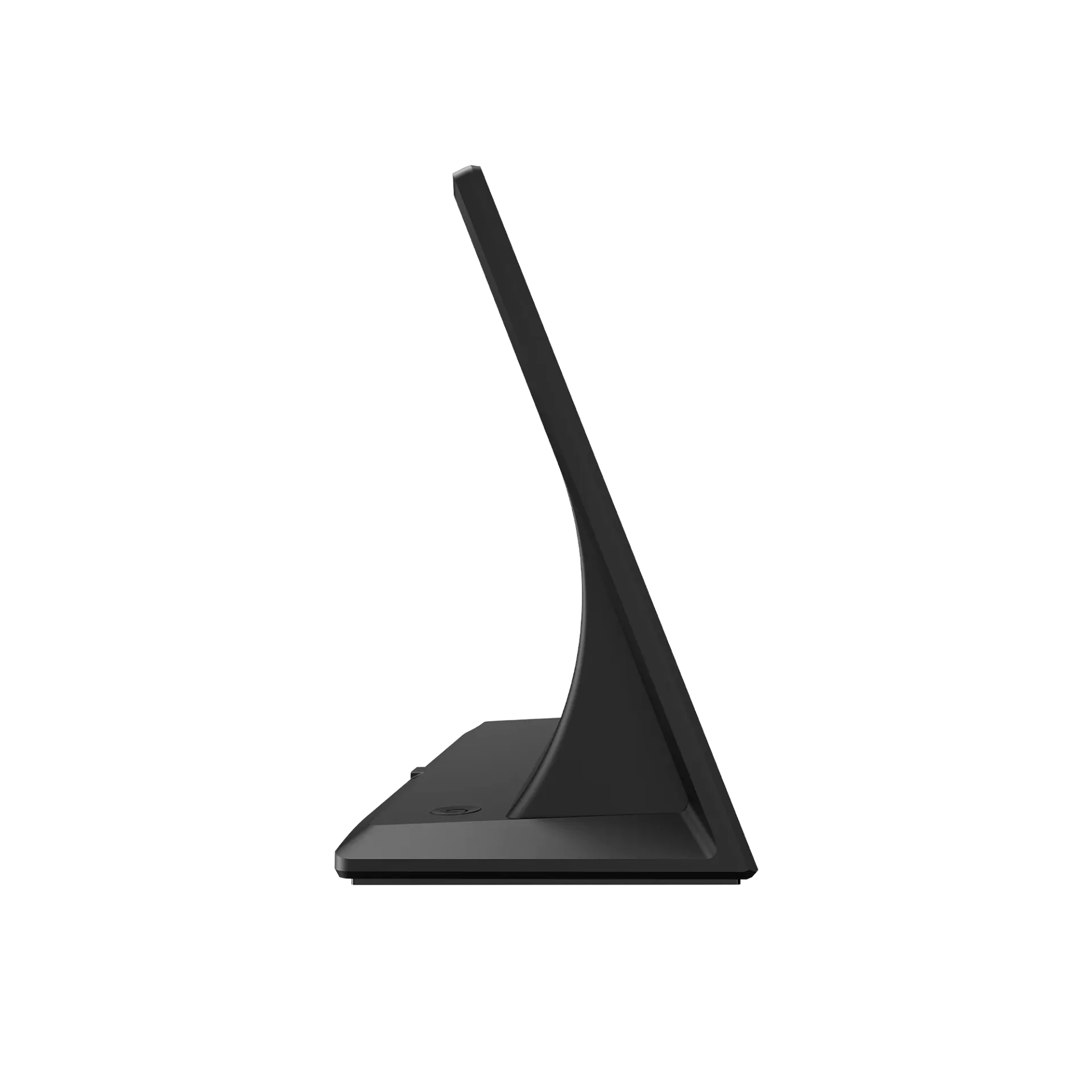

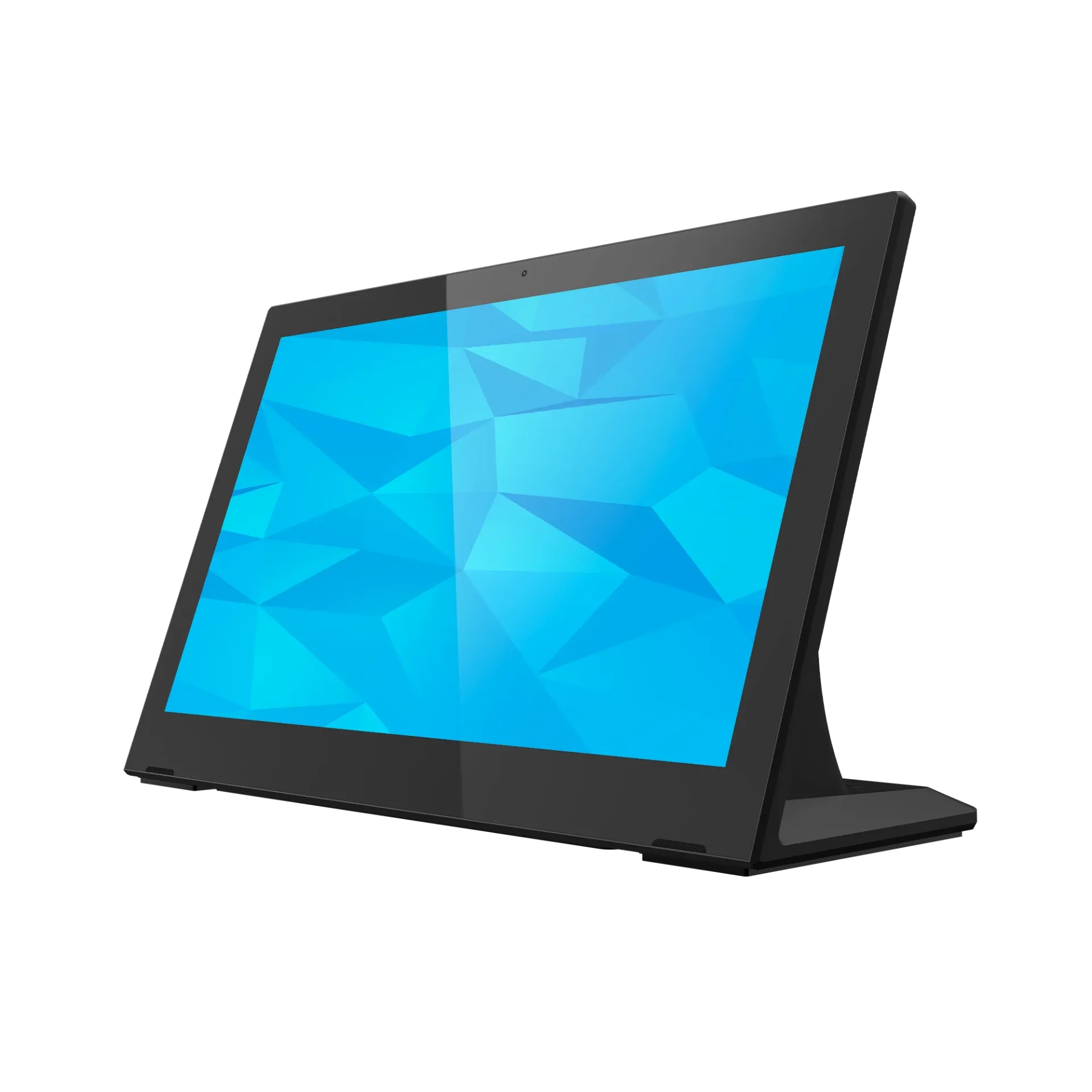

WL1512T 15.6" Desktop Signage
Quick Specifications
- Diagonal Size15.6-inch (LCD)
- Resolution1920 x 1080 pixels
- Aspect Ratio16:9
- Viewing AngleR/L 85/85, U/D 85/85
- Display ModeNormally black
- Contrast Ratio800:1
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
15.6-inch (LCD)
Resolution
1920 x 1080 pixels
Aspect Ratio
16:9
Viewing Angle
R/L 85/85, U/D 85/85
Display Mode
Normally black
Contrast Ratio
800:1
Luminance
250 nits
Number of Points
10-point
CPU
WL1512T: RK3288 Quad-core cortex A17WL1513T: RK3399 Dual-core A72+Quad-core A53WL1516T: RK3566 Quad-
RAM
WL1512T: 2GBWL1513T: 2GB (Optional 4GB)WL1516T: 2GB (Optional 4GB)WL1518T: 2GB (Optional 4GB)
ROM
WL1512T: 16GBWL1513T: 16GB (Optional 32GB)WL1516T: 16GB (Optional 32GB)WL1518T: 16GB (Optional 32GB)
Operating System
WL1512T: Android 8.1/10.0WL1513T: Android 7.1/10.0WL1516T: Android 11WL1518T: Android 11
Dimensions
389.16 x 242.92 x 142.3 mm (L × W × D)
Battery Capacity
Optional 4500mAh
WiFi
WL1512T: IEEE 802.11b/g/nWL1513T: IEEE 802.11a/b/g/n/acWL1516T: IEEE 802.11b/g/nWL1518T: IEEE 802.11
USB
WL1512T: USB for serial port (RS232 format)WL1513T: USB for serial (RS232 format)WL1516T: USB for se
HDMI
HDMI output, support 4K
Power Port
DC power input
Video Format
WL1512T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4KWL1513T: MPEG-1, MPE
Audio Format
MP3/WMA/AAC, etc
WL1512T: JPEGWL1513T: JPEGWL1516T: JPEG/PNGWL1518T: JPEG/PNG
Speaker
2W*2
Microphone
Single microphone
NFC
Optional, NFC 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica
Camera
Routine angle 5.0MP
Language
Multi-language
Certificates
CE/FCC
Operating Temperature
0℃-40℃
