Desktop Signages

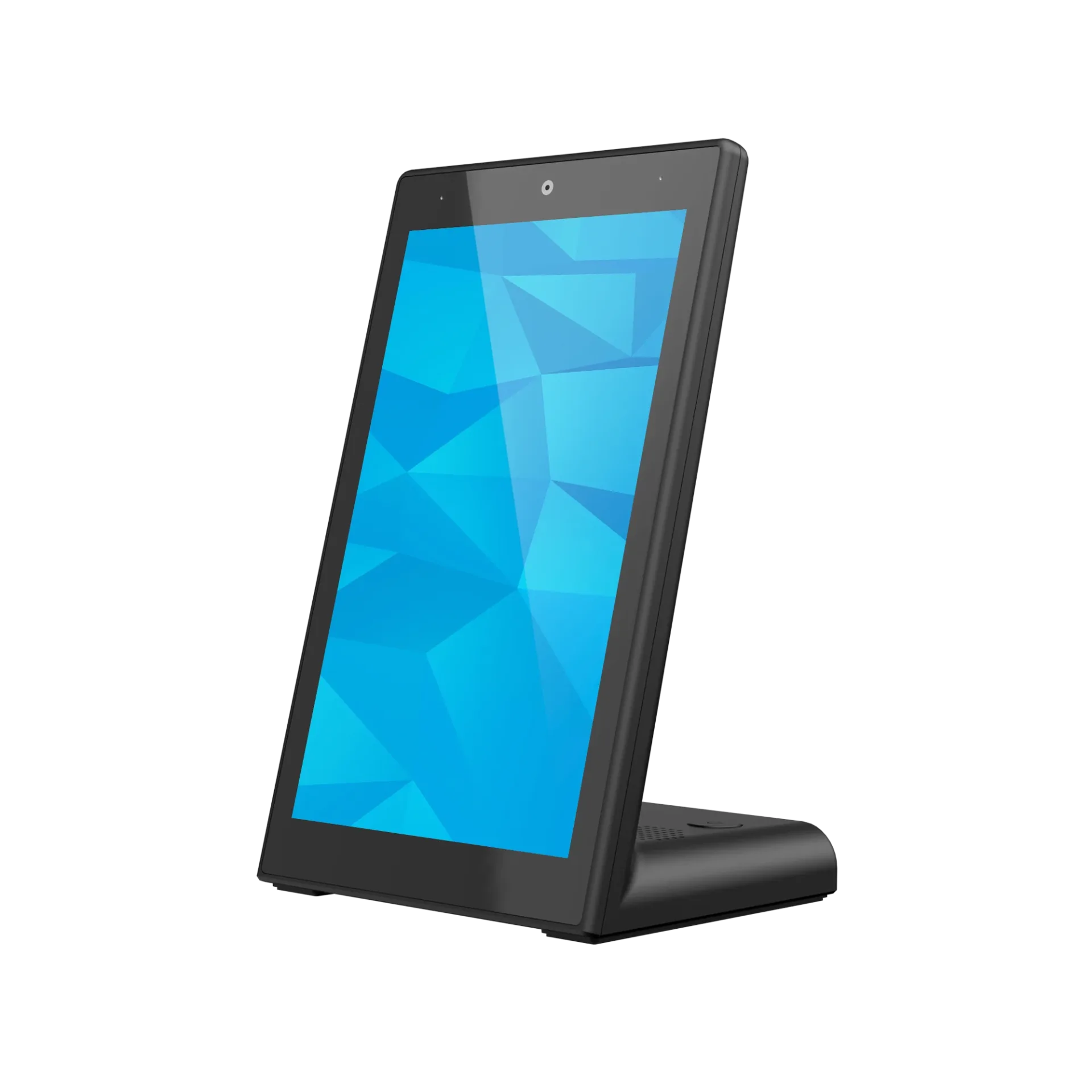

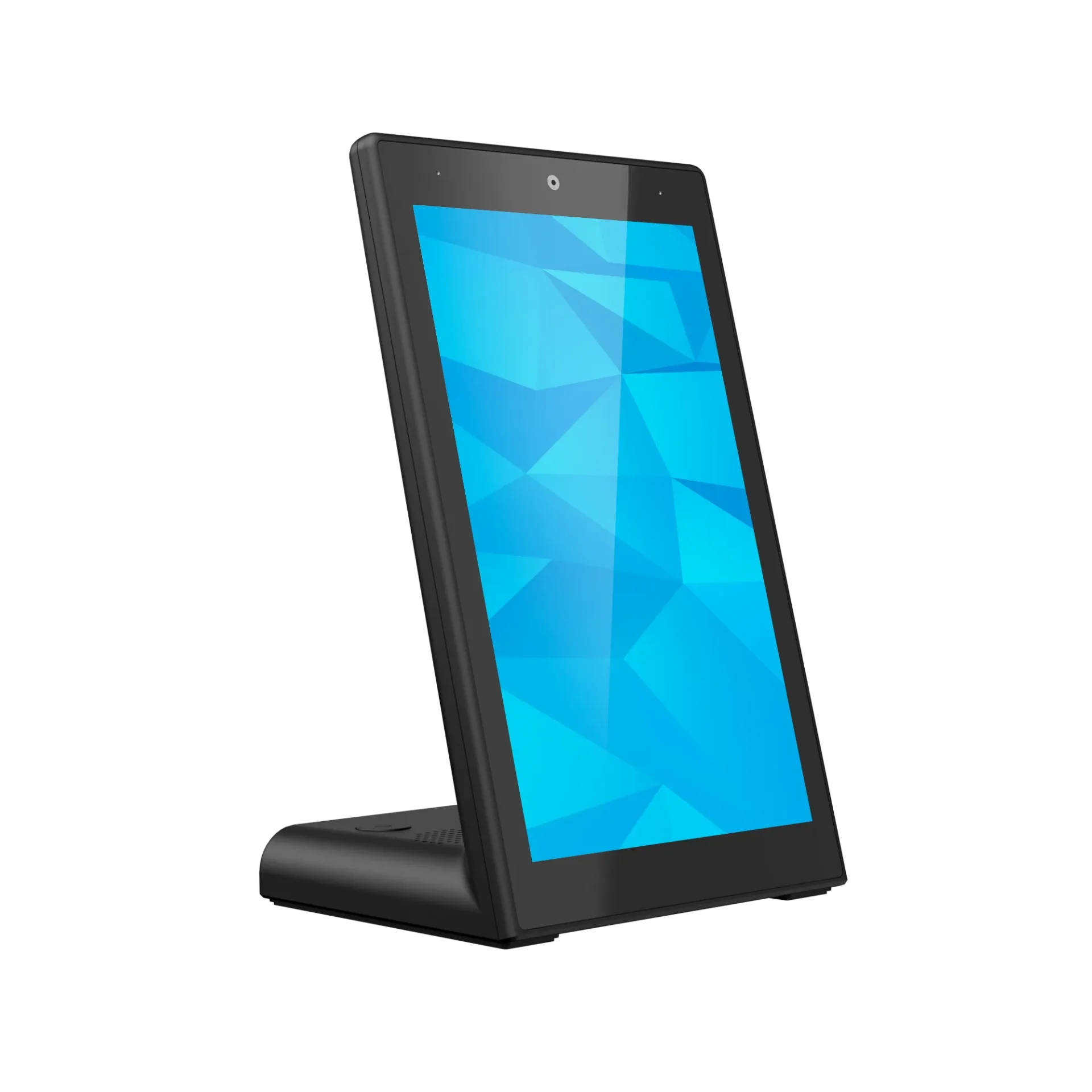

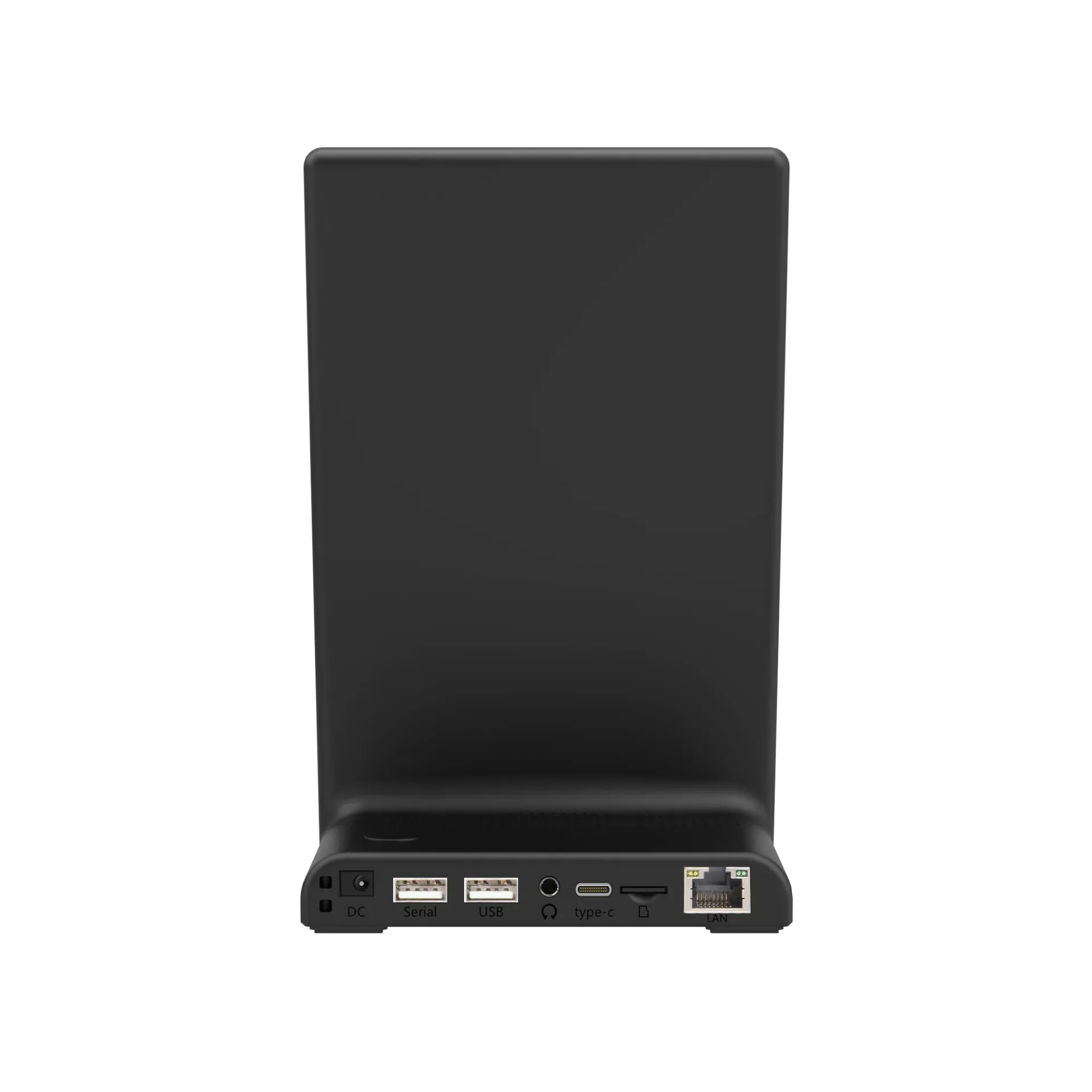

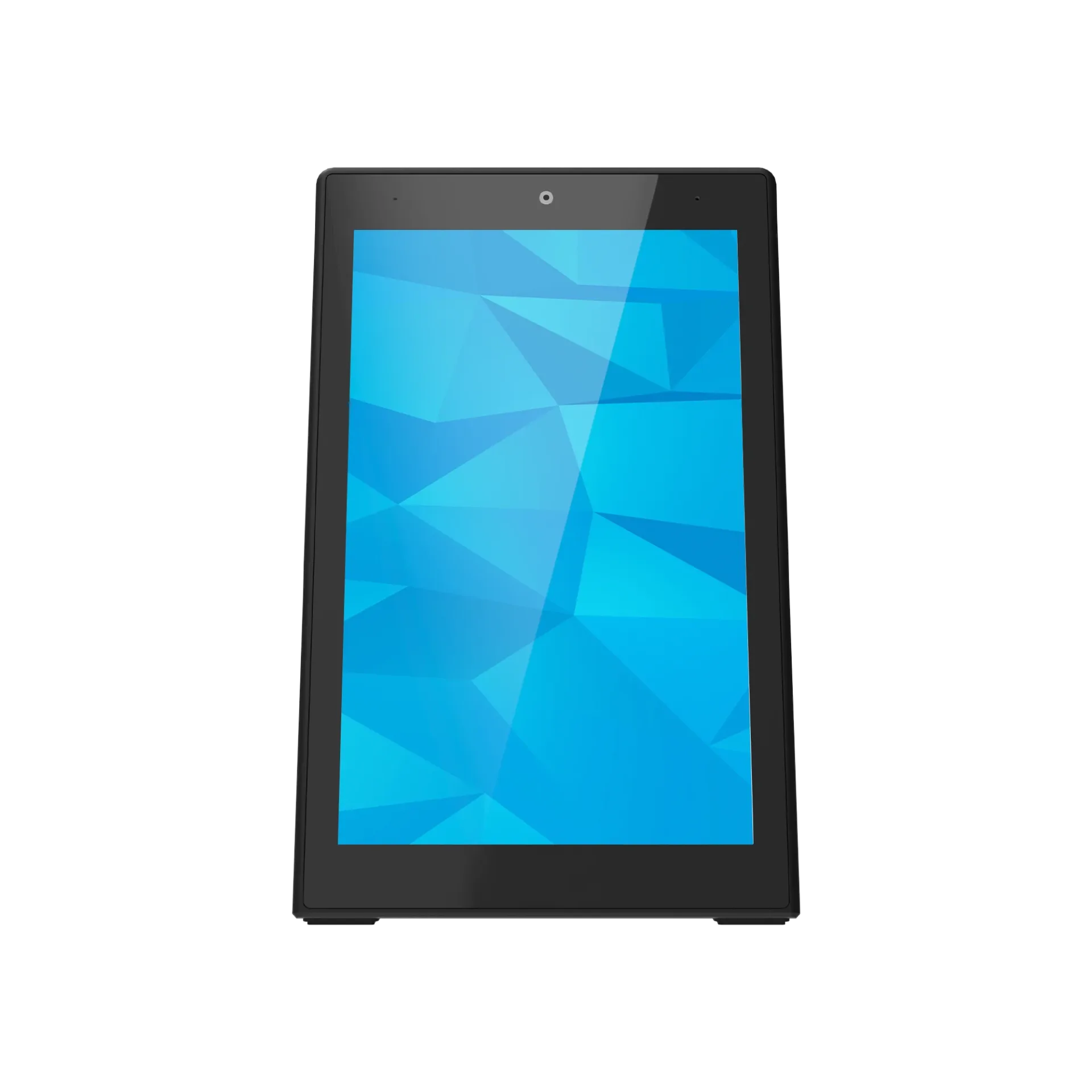

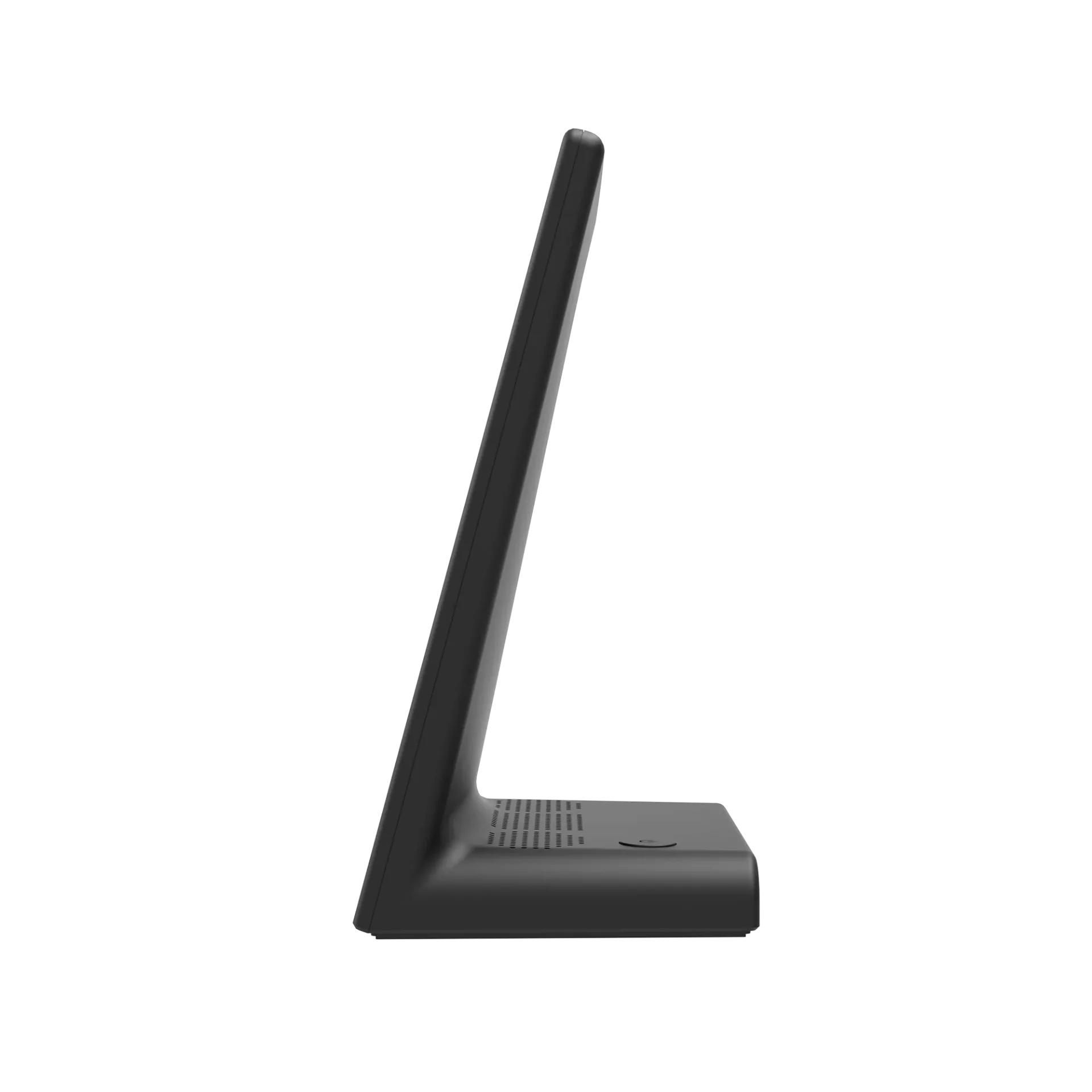

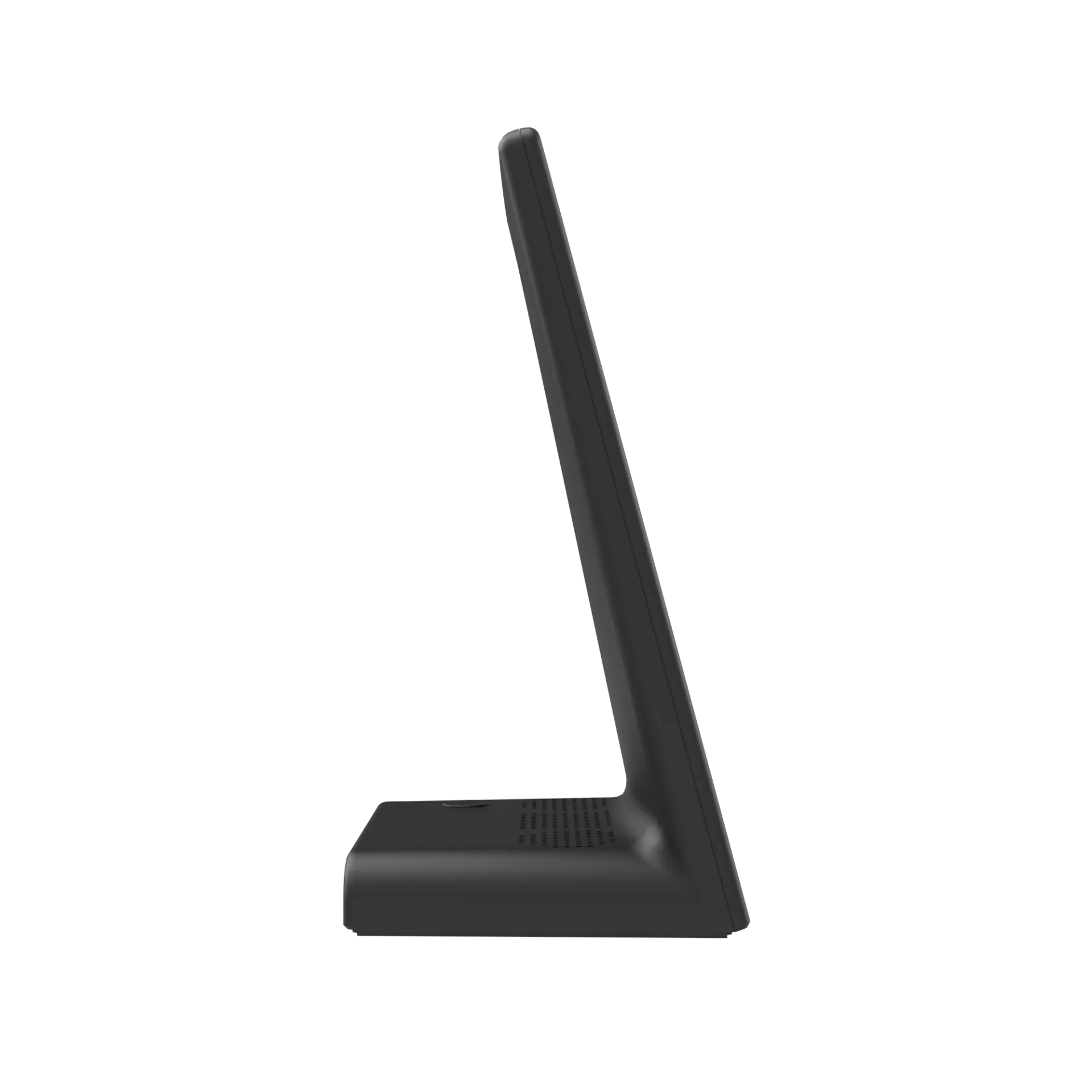

WL8012T 8" Desktop Signage
Quick Specifications
- Diagonal Size8-inch (LCD)
- Resolution800 x 1280 pixels
- Aspect Ratio10:16
- Viewing AngleR/L 85/85, U/D 85/85
- Display ModeNormally black
- Contrast Ratio800:1
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
8-inch (LCD)
Resolution
800 x 1280 pixels
Aspect Ratio
10:16
Viewing Angle
R/L 85/85, U/D 85/85
Display Mode
Normally black
Contrast Ratio
800:1
Luminance
WL8012T: 250 nitsWL8013T: 250 nitsWL8016T: 250 nitsWL8017T: 300 nitsWL8018T: 250 nits
Number of Points
5-point
CPU
WL8012T: RK3288 Quad core cortex A17WL8013T: RK3399 Dual-core A72+Quad-core A53WL8016T: RK3566 Quad-
RAM
WL8012T: 2GBWL8013T: 2GB (Optional 4GB)WL8016T: 2GB (Optional 4GB)WL8017T: 1GBWL8018T: 2GB (Optional
ROM
WL8012T: 16GBWL8013T: 16GB (Optional 32GB/64GB)WL8016T: 16GB (Optional 32GB/64GB)WL8017T: 16GBWL8018
Operating System
WL8012T: Android 8.1/10.0WL8013T: Android7.1/10.0WL8016T: Android 11WL8017T: Android 6.0WL8018T: And
Dimensions
132 x 211.8 x 104.03 mm (L × W × H)
WiFi
WL8012T: IEEE 802.11b/g/nWL8013T: IEEE 802.11ac/a/b/g/n 2.4G+5GWL8016T: IEEE 802.11b/g/nWL8017T: IEE
USB
WL8012T: USB for serial (TTL Level)WL8013T: USB for serial (TTL Level), Optional USB hostWL8016T: US
USB Type-C
WL8012T: USB OTG onlyWL8013T: Support full function (Except for charging function)WL8016T: USB OTG o
Earphone
3.5mm earphone output
RJ45
Ethernet interface
Power Port
DC power input
Video Format
WL8012T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4KWL8013T: MPEG-1, MPE
Audio Format
MP3/WMA/AAC, etc
WL8012T: JPEGWL8013T: JPEG/PNGWL8016T: JPEG/PNGWL8017T: JPEGWL8018T: JPEG/PNG
Color
Black
Speaker
2W*2
Microphone
Single microphone
NFC
Optional, NFC 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica
Camera
Routine angle 5.0MP
Language
Multi-language
Certificates
CE/FCC
Operating Temperature
0℃-40℃
