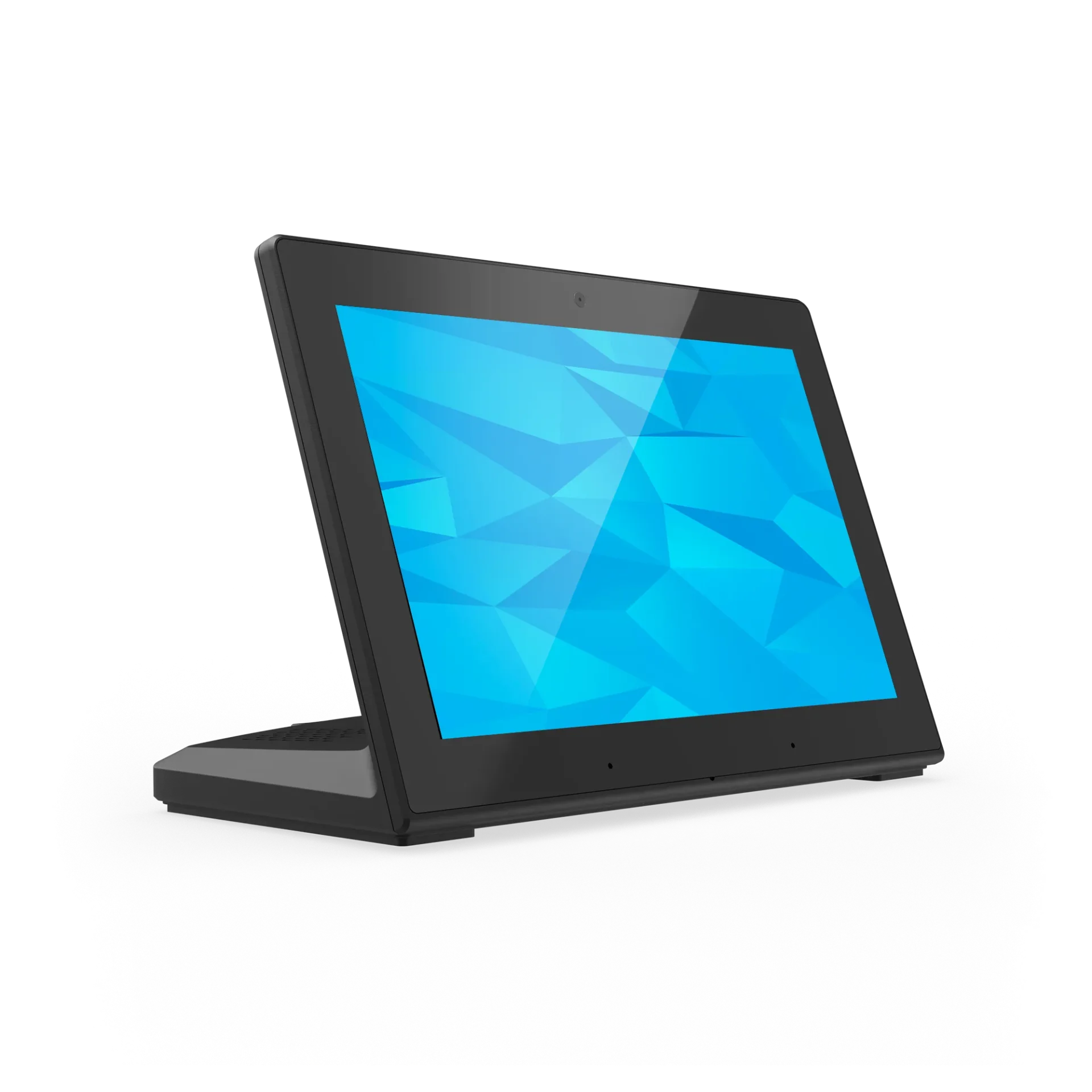

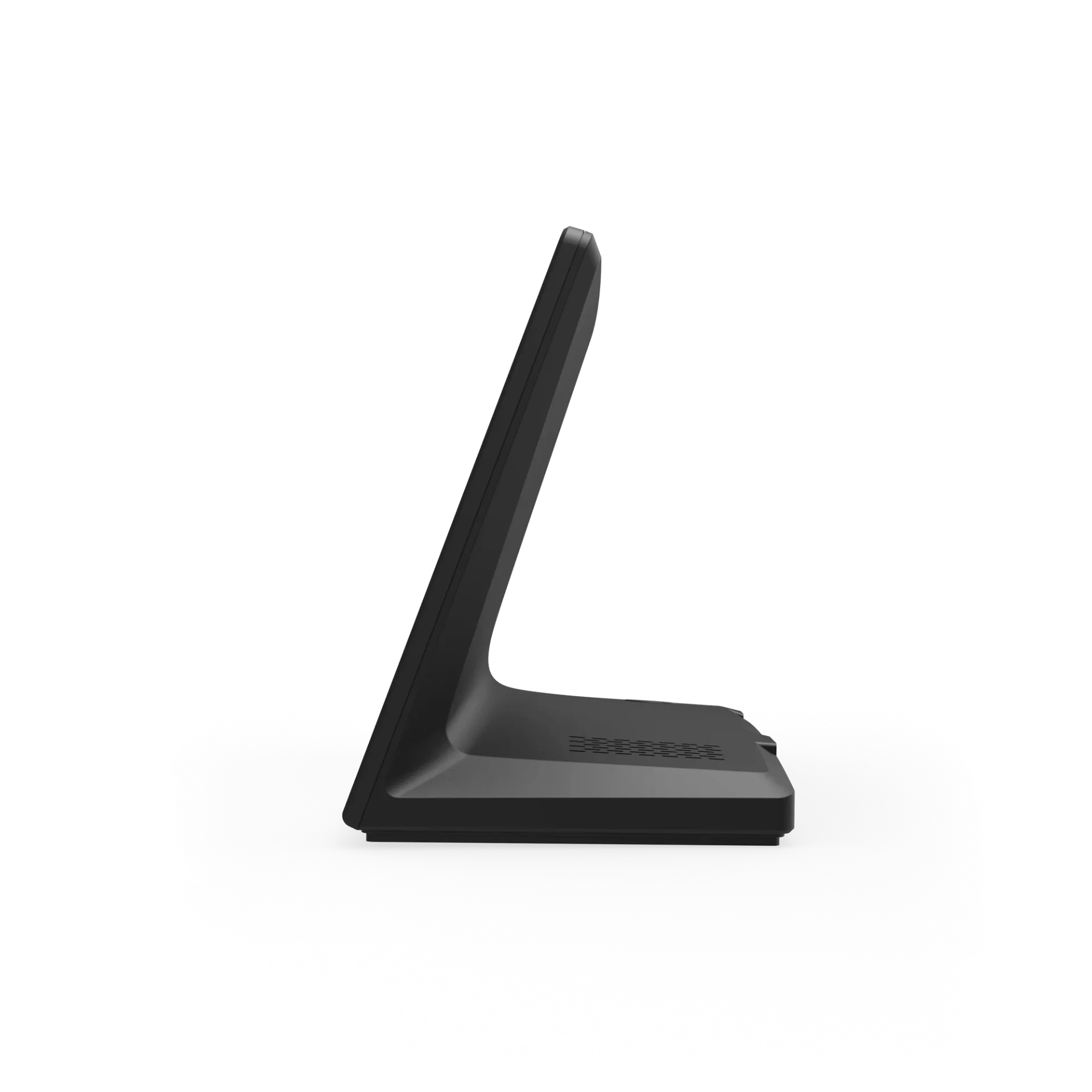

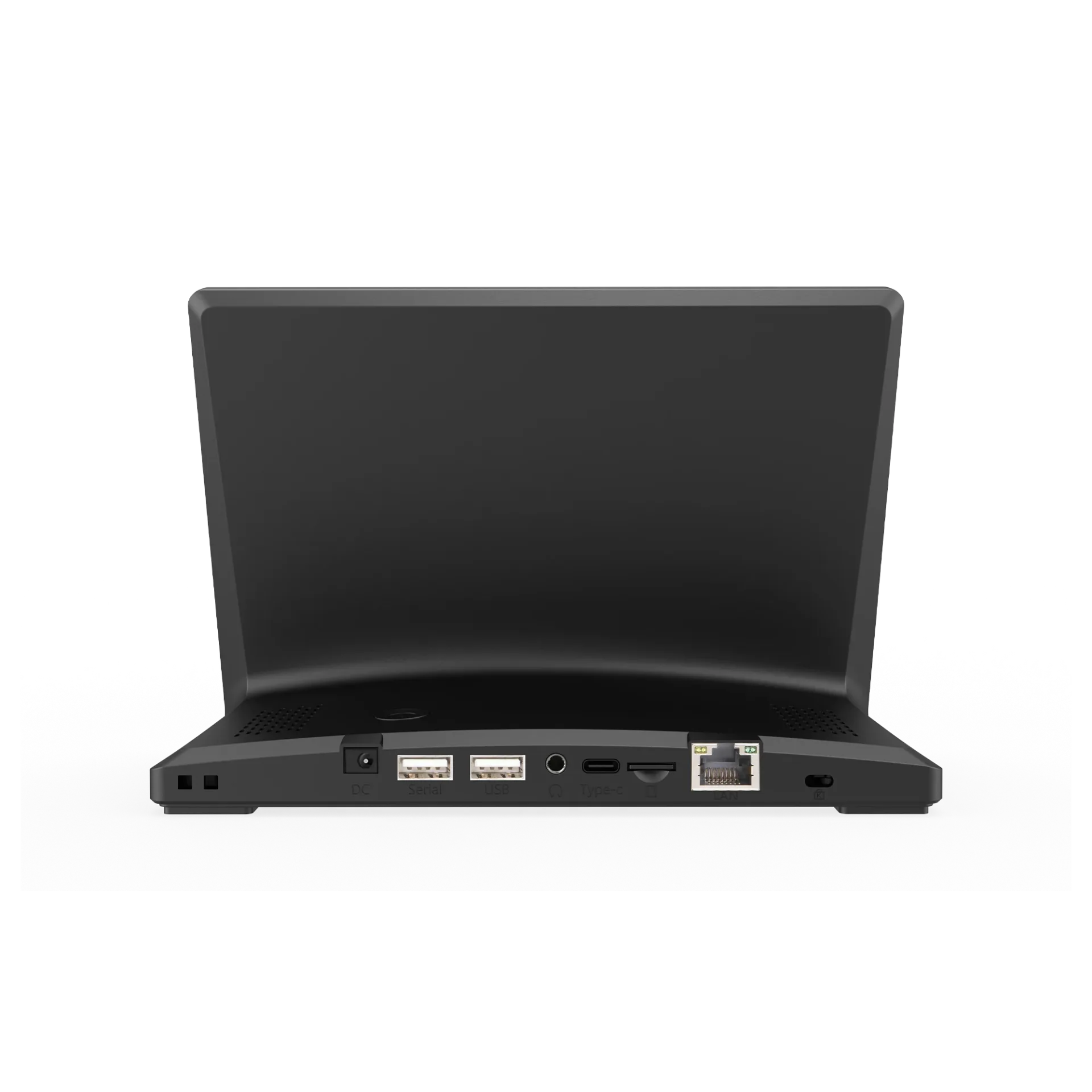

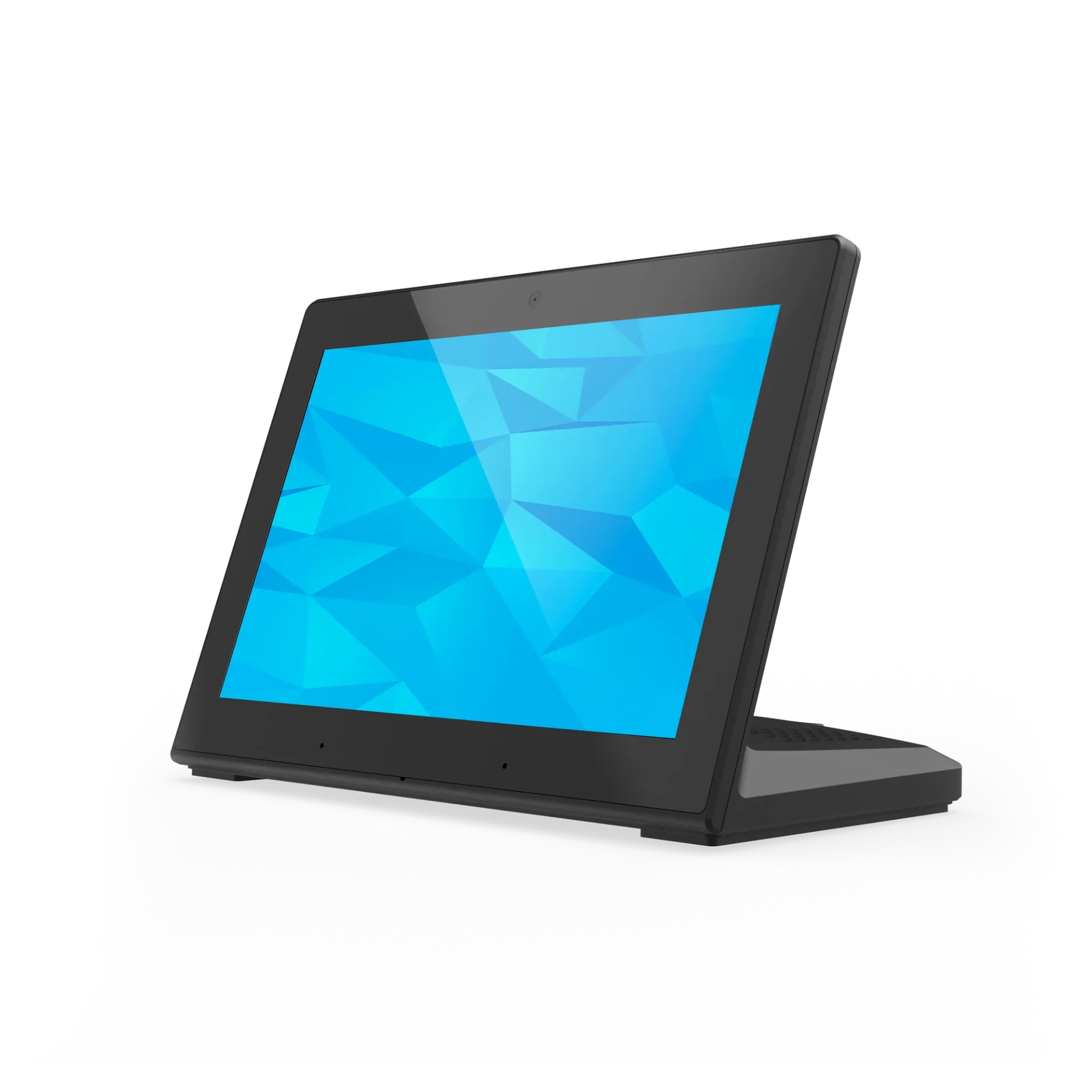

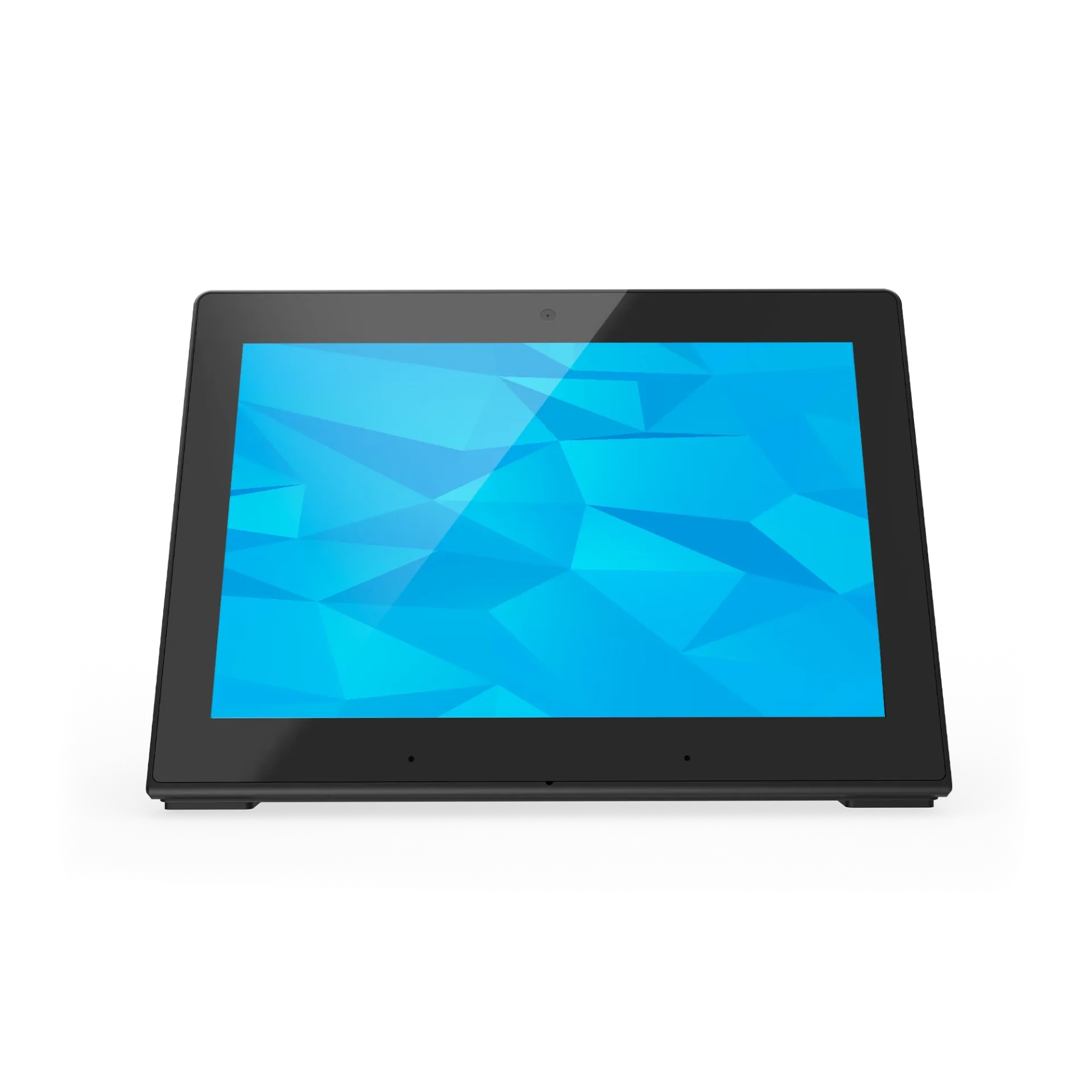

WL8022T 8" Desktop Signage
Quick Specifications
- Diagonal Size8-inch (LCD)
- Resolution1280 x 800 pixels
- Aspect Ratio16:10
- Viewing AngleR/L 85/85, U/D 85/85
- Display ModeNormally black
- Contrast Ratio800:1
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
8-inch (LCD)
Resolution
1280 x 800 pixels
Aspect Ratio
16:10
Viewing Angle
R/L 85/85, U/D 85/85
Display Mode
Normally black
Contrast Ratio
800:1
Luminance
WL8022T: 250 nitsWL8026T: 250 nitsWL8027T: 300 nitsWL8028T: 250 nits
Number of Points
5-point
CPU
WL8022T: RK3288 Quad-core cortex A17WL8026T: RK3566 Quad-core cortex A55WL8027T: RK3128 Quad-core co
RAM
WL8022T: 2GBWL8026T: 2GB (Optional 4GB)WL8027T: 1GBWL8028T: 2GB (Optional 4GB)
ROM
WL8022T: 16GBWL8026T: 16GB (Optional 32GB/64GB)WL8027T: 16GBWL8028T: 16GB (Optional 32GB/64GB)
Operating System
WL8022T: Android 8.1WL8026T: Android 11WL8027T: Android 6.0WL8028T: Android 11
Dimensions
236.1 x 63.3 x 156.8 mm (L × W × D)
WiFi
IEEE 802.11b/g/n
USB
WL8022T: USB for serial (TTL Level)WL8026T: USB for serial (TTL Level), Optional USB hostWL8027T: US
USB Type-C
Support USB OTG Only
Power Port
DC power input
Video Format
WL8022T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4KWL8026T: MPEG-1, MPE
Audio Format
MP3/WMA/AAC, etc
WL8022T: JPEGWL8026T: JPEG/PNGWL8027T: JPEGWL8028T: JPEG
Color
Black
Speaker
2W*2
Microphone
WL8022T: Single microphoneWL8026T: Standard single microphone, Optional dual microphoneWL8027T: Sing
NFC
Optional, NFC 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica
Language
Multi-language
Operating Temperature
0℃-40℃
