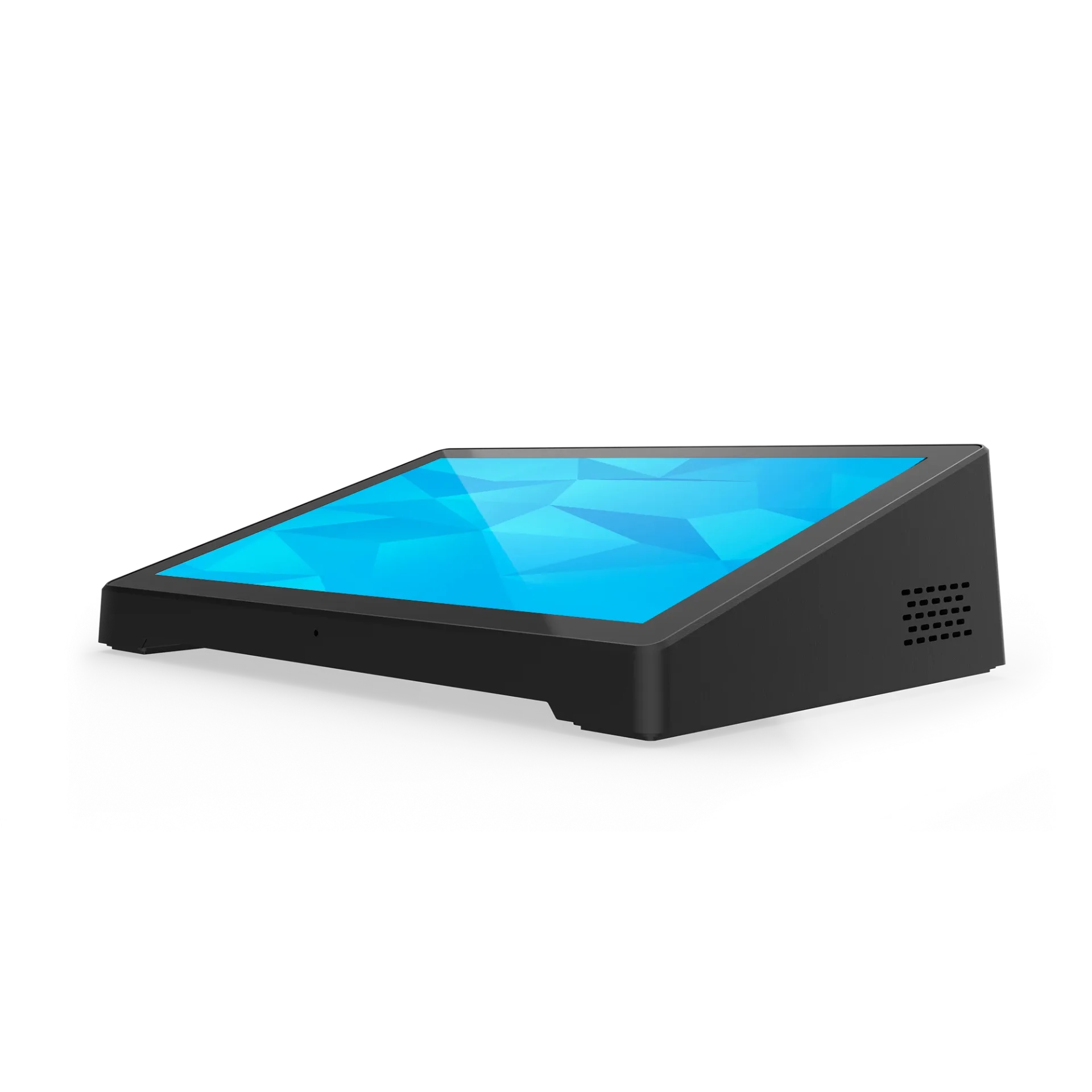

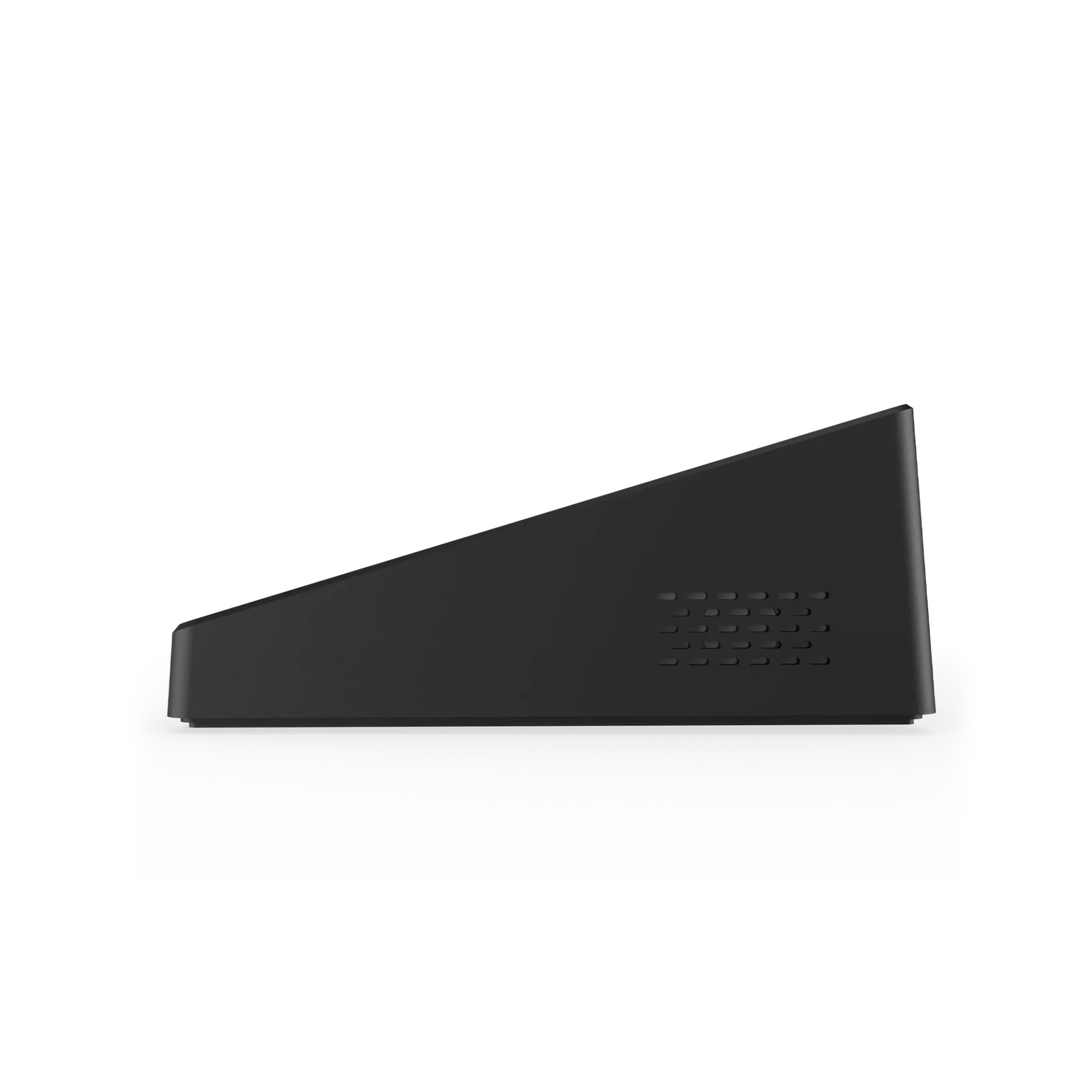

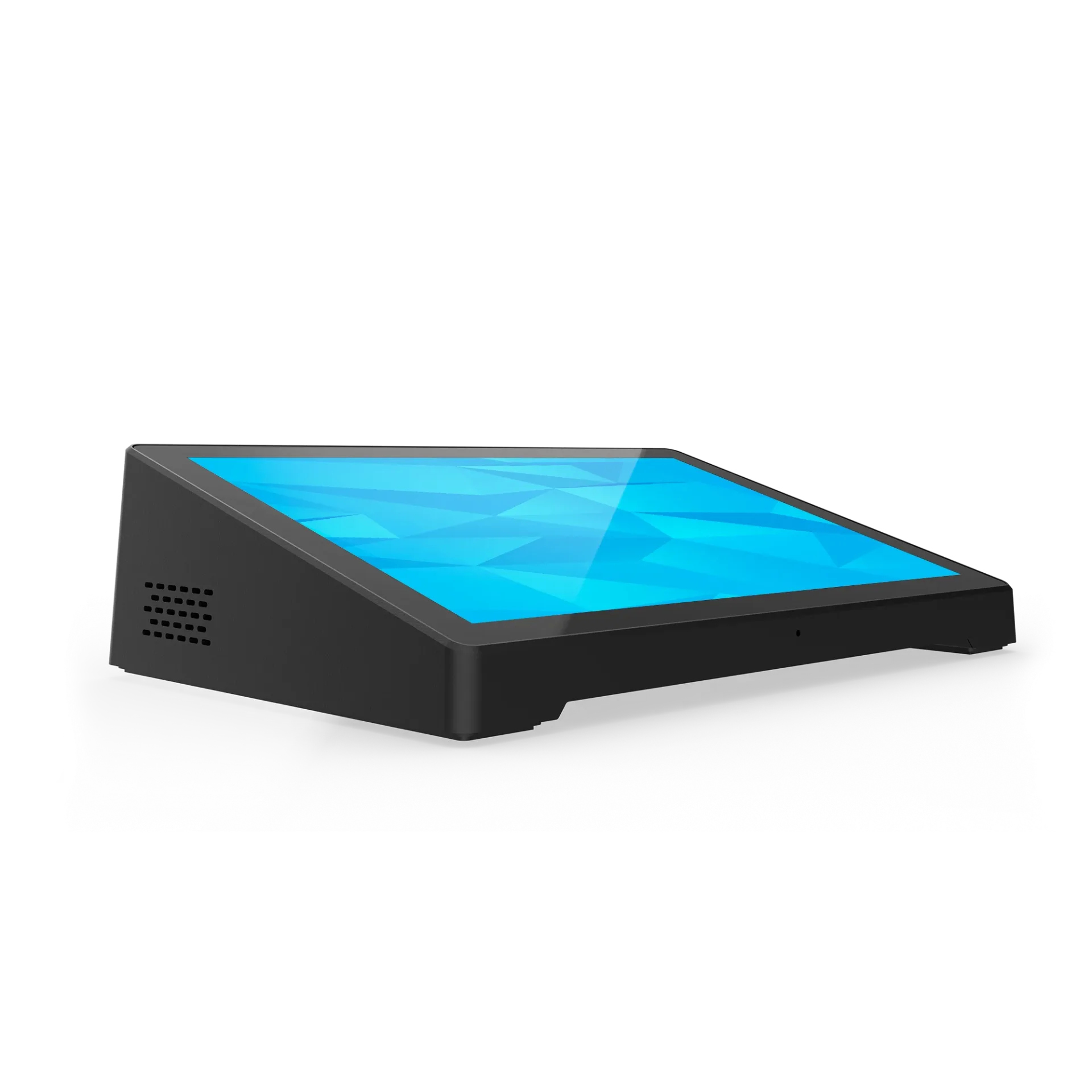

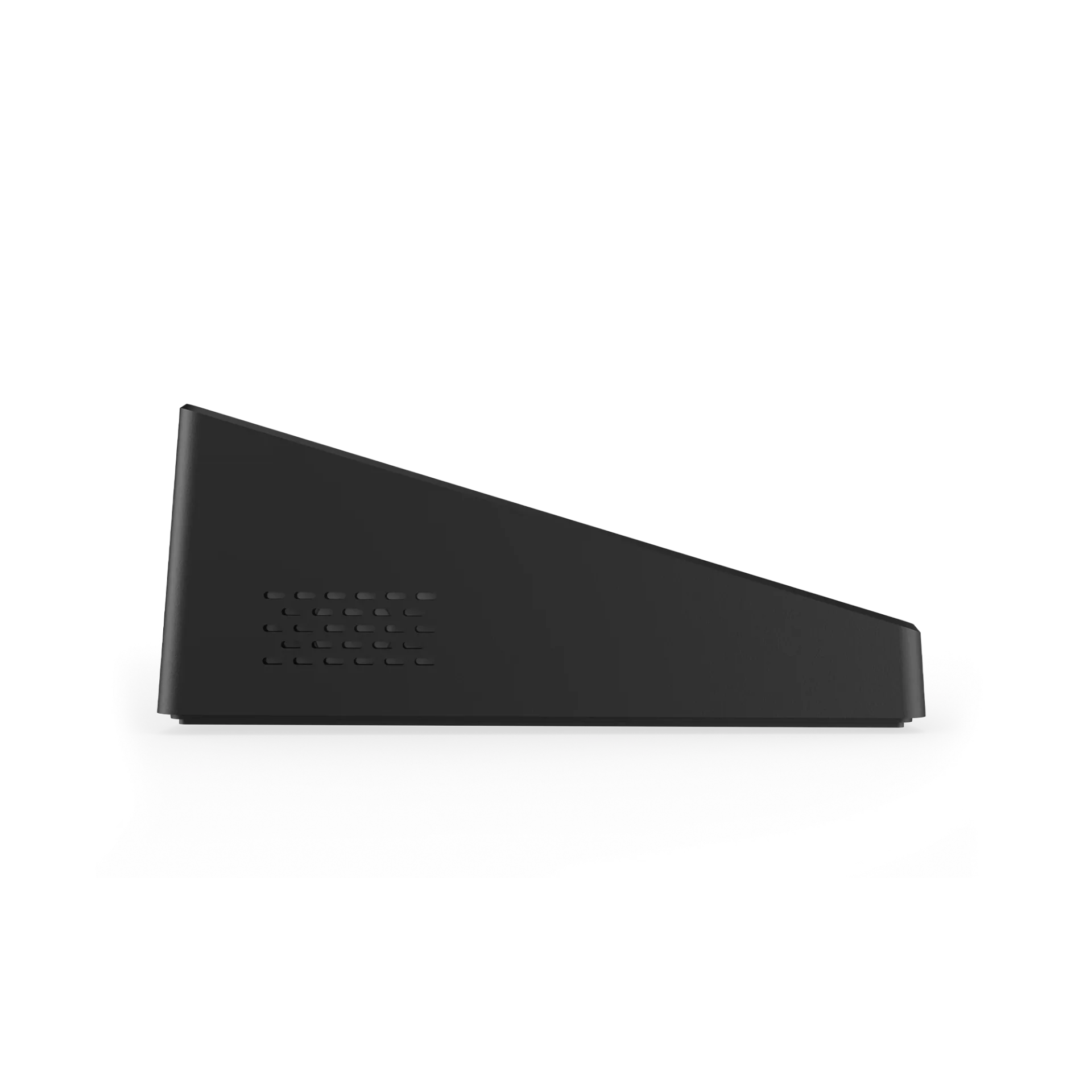

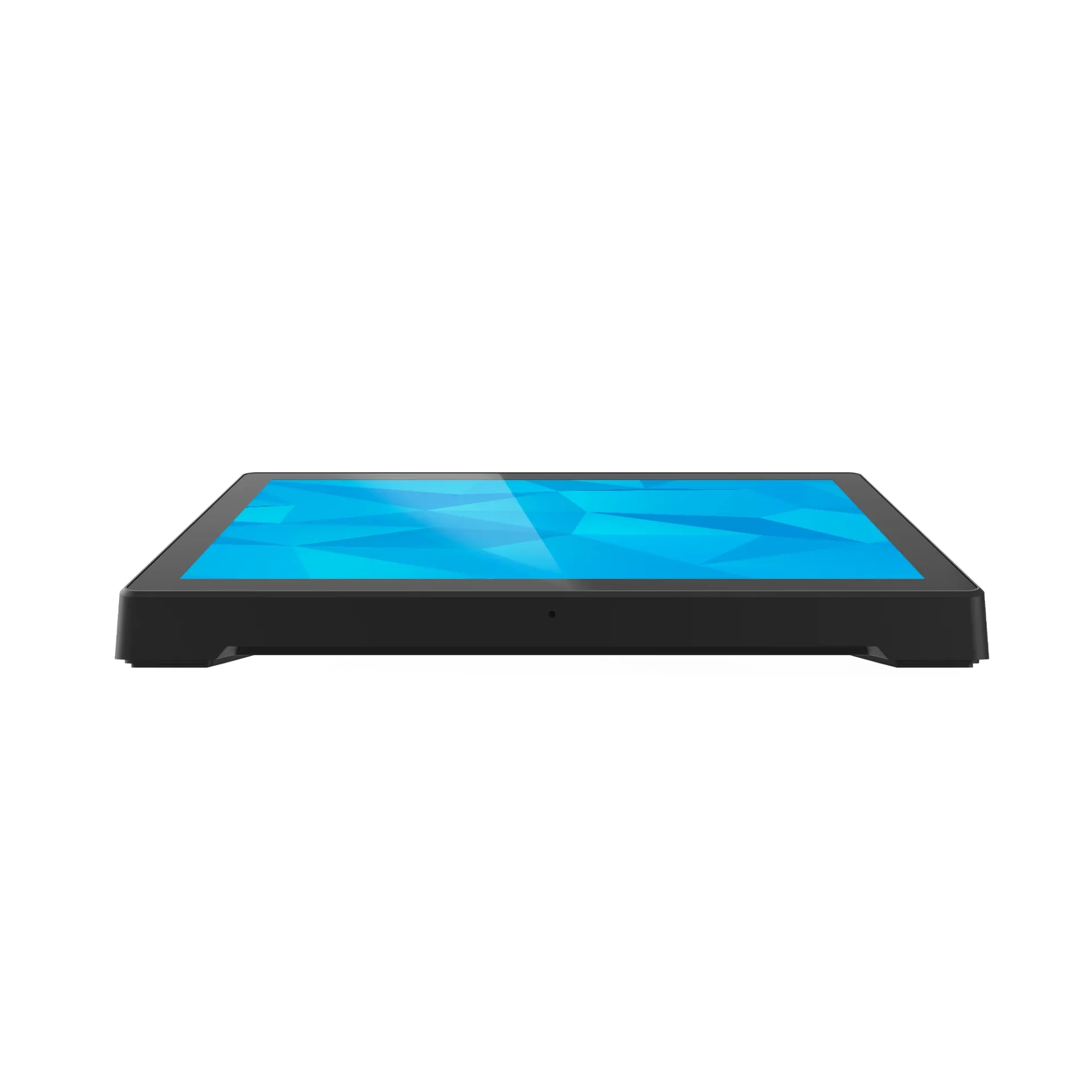

WT8012T 8" Desktop Signage
Quick Specifications
- Diagonal Size8-inch (LCD)
- Resolution1280 x 800 pixels
- Aspect Ratio16:10
- Viewing AngleR/L 85/85, U/D 85/85
- Display ModeNormally black
- Contrast Ratio800:1
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
8-inch (LCD)
Resolution
1280 x 800 pixels
Aspect Ratio
16:10
Viewing Angle
R/L 85/85, U/D 85/85
Display Mode
Normally black
Contrast Ratio
800:1
Luminance
250 nits
Number of Points
5-point
CPU
WT8012T: RK3288 Quad-core cortex A17WT8013T: RK3399 Dual-core A72+Quad-core A53WT8016T: RK3566 Quad-
RAM
WT8012T: 2GBWT8013T: 2GB (Optional 4GB)WT8016T: 2GB (Optional 4GB)WT8017T: 1GBWT8018T: 2GB (Optional
ROM
WT8012T: 16GBWT8013T: 16GB (Optional 32GB/64GB)WT8016T: 16GB (Optional 32GB/64GB)WT8017T: 16GBWT8018
Operating System
WT8012T: Android 8.1/10.0WT8013T: Android 7.1/10.0WT8016T: Android 11WT8017T: Android 6.0WT8018T: An
Dimensions
196.1 x 54.97 x 129.37 mm (L × W × D)
WiFi
WT8012T: IEEE 802.11 b/g/n WT8013T: IEEE 802.11 b/g/n WT8016T: IEEE 802.11 b/g/nWT8017T: IEEE 802.11

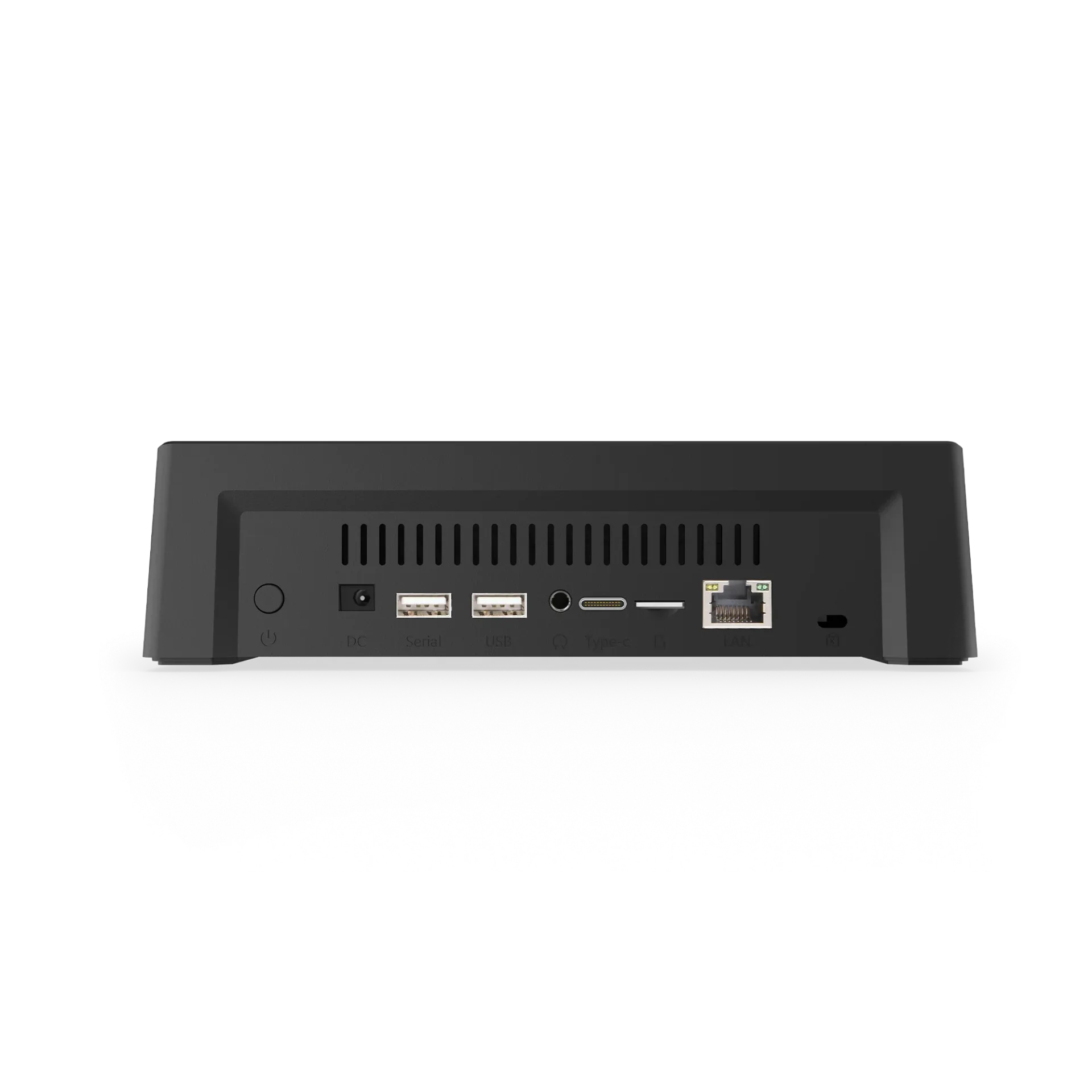

USB
WT8012T: USB for serial (TTL format), Optional USB HostWT8013T: USB for serial (TTL format), Optiona
USB Type-C
WT8012T: USB OTG onlyWT8013T: Support full functionWT8016T: USB OTG onlyWT8017T: USB OTG onlyWT8018T
Earphone
3.5mm earphone output
RJ45
Ethernet interface, (POE function optional, IEEE802.3at, POE+, class 4, 25.5W)
Power Port
DC power input
Video Format
WT8012T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4KWT8013T: MPEG-1, MPE
Audio Format
MP3/WMA/AAC, etc
WT8012T: JPEGWT8013T: JPEGWT8016T: JPEGWT8017T: JPEGWT8018T: JPEG/PNG
Color
Black
Speaker
2W*2
Microphone
Standard single microphone
NFC
WT8012T: Optional, 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felicaWT8013T: Optiona
Language
Multi-language
Certificates
CE/FCC
Operating Temperature
0℃-40℃
Related
You May Also Like
Desktop Signages

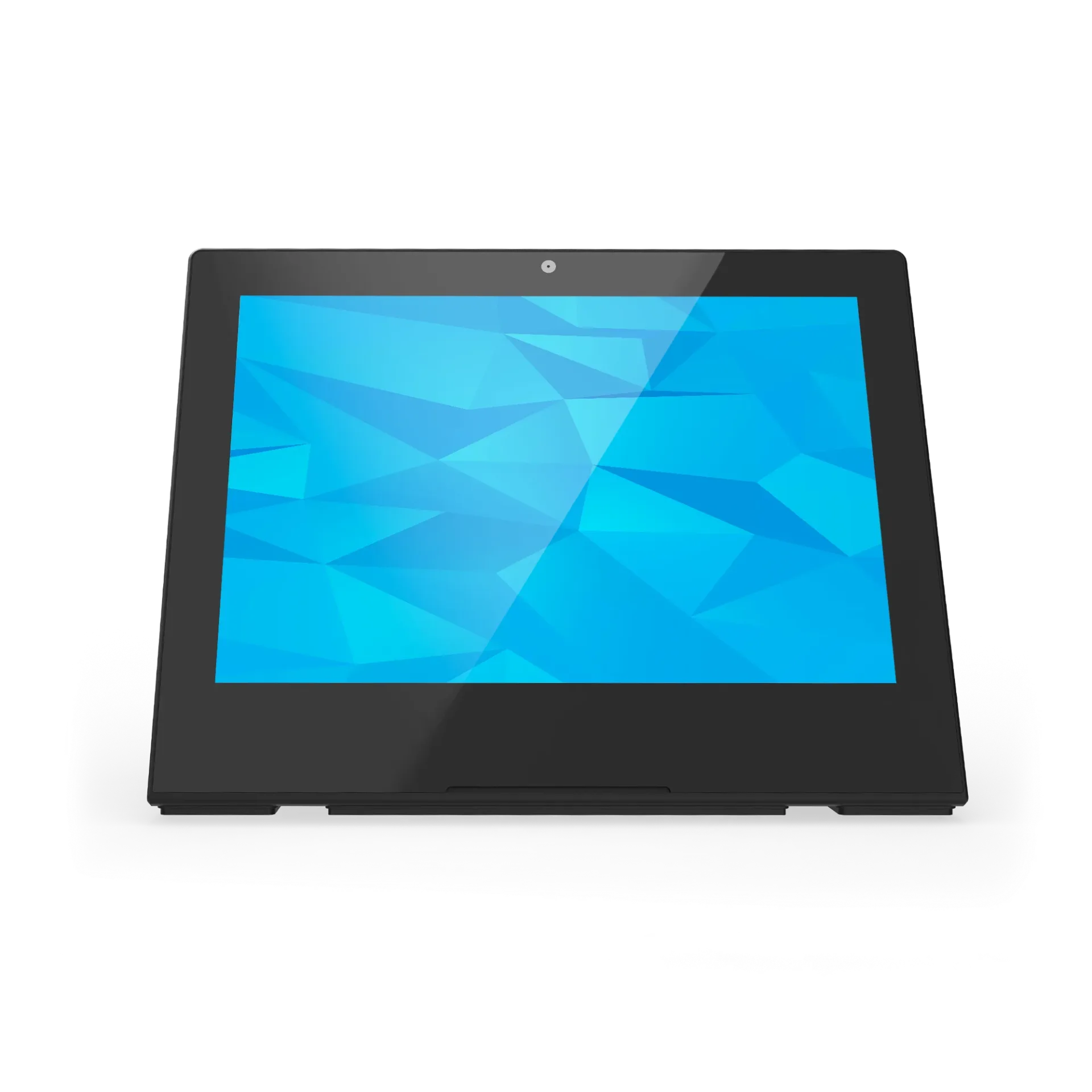

WL1012T 10.1" Desktop Signage
Desktop Signages

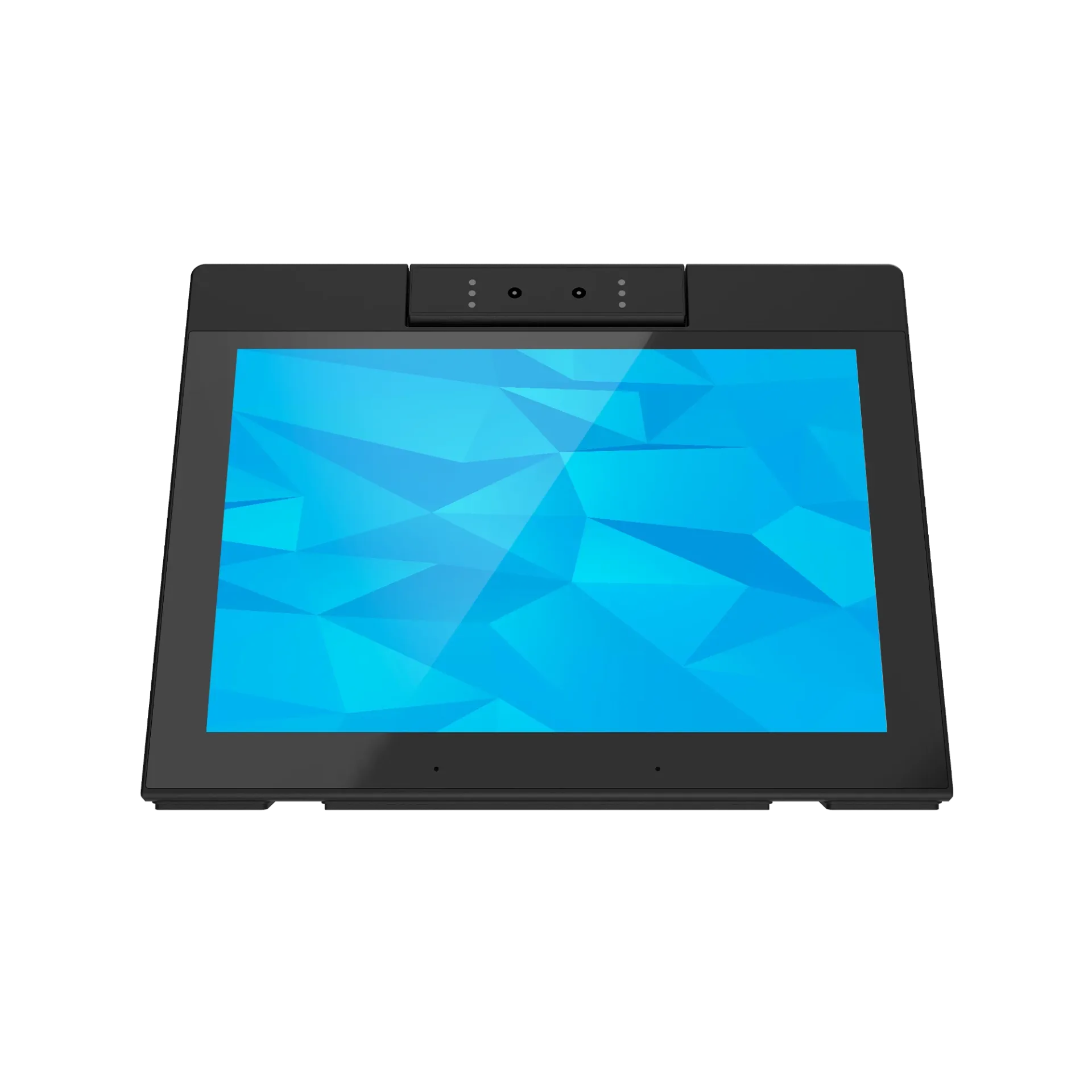

WL1022T 10.1" Desktop Signage
Desktop Signages

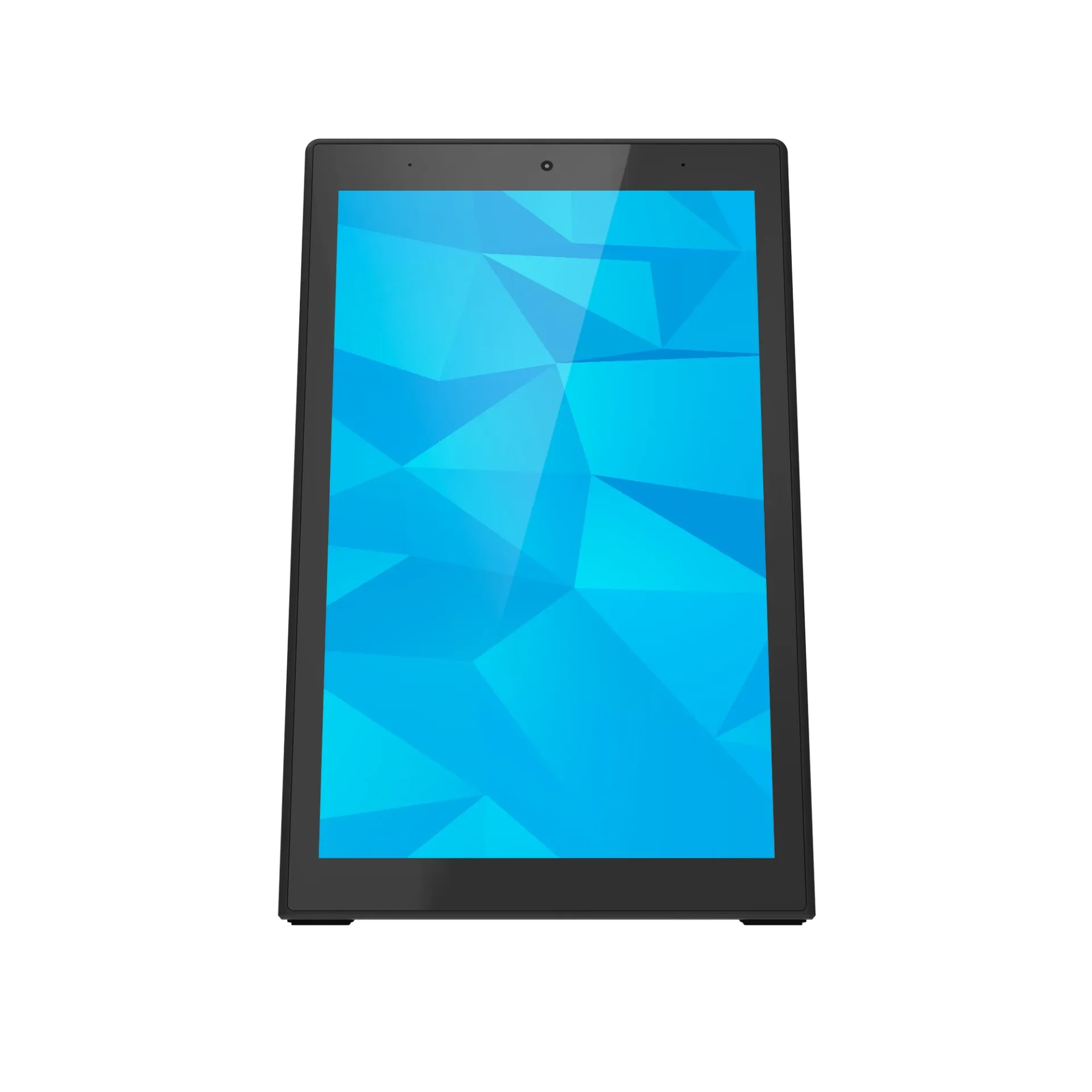

WL1032T 10.1" Desktop Signage
