Touchscreen Signages 8"-55"

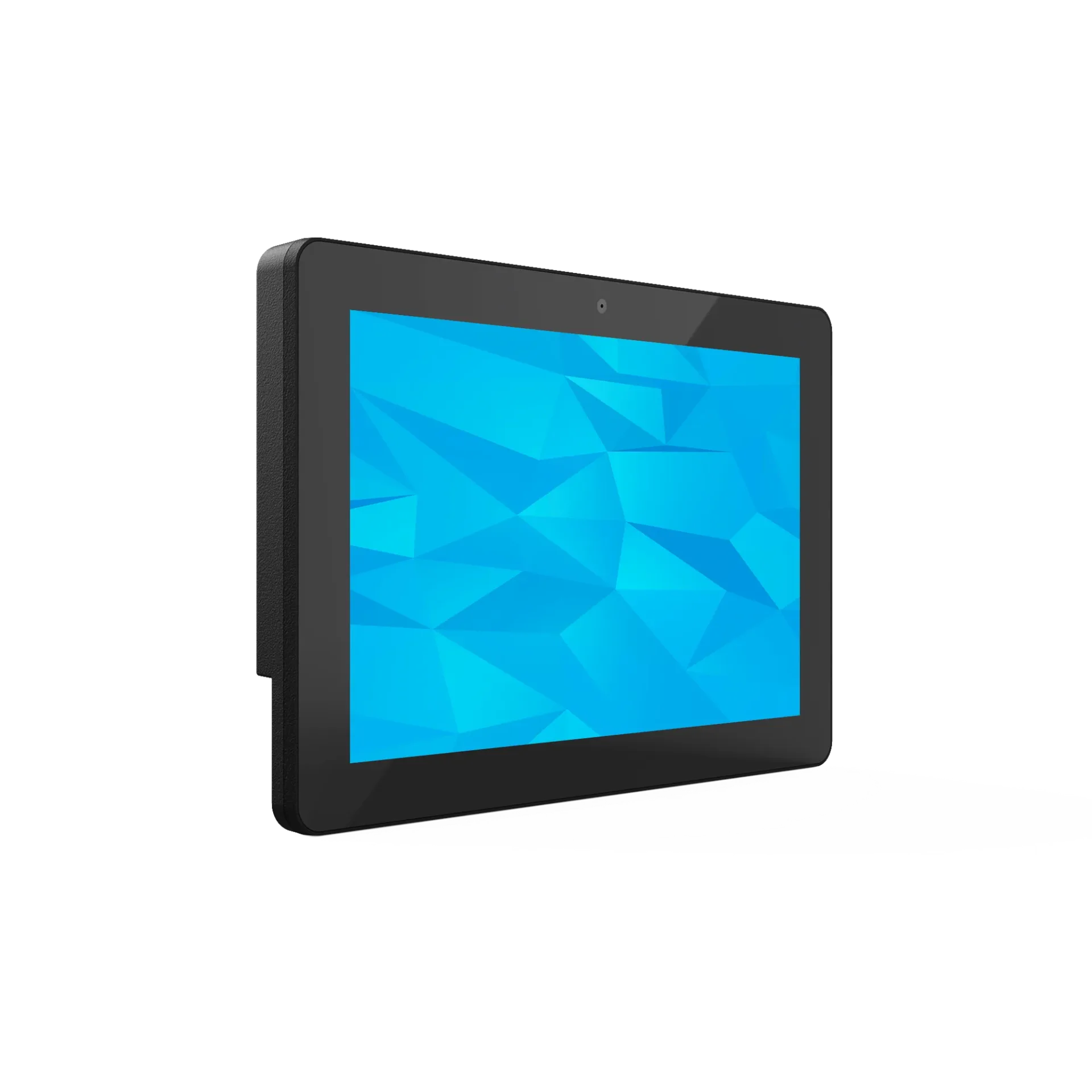

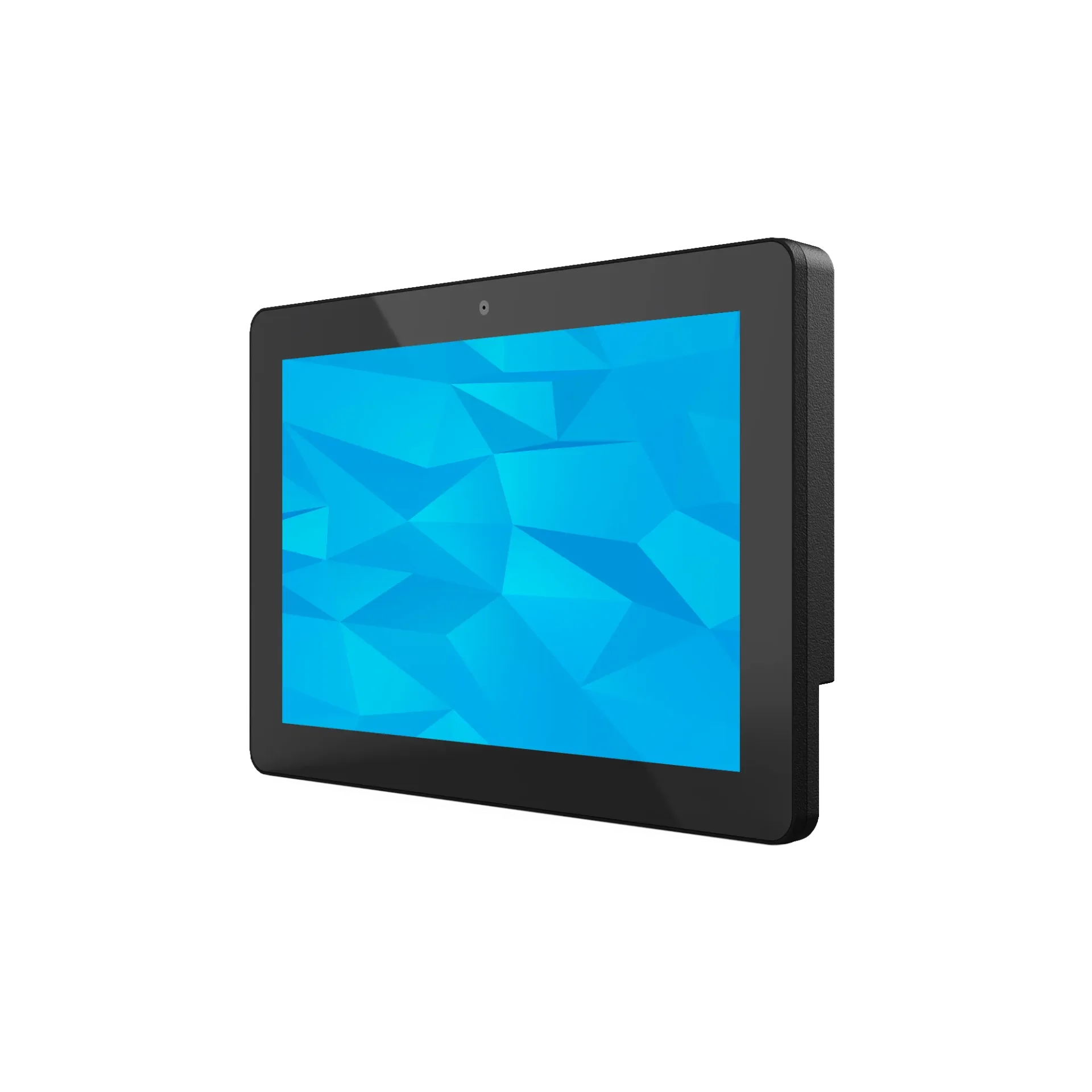

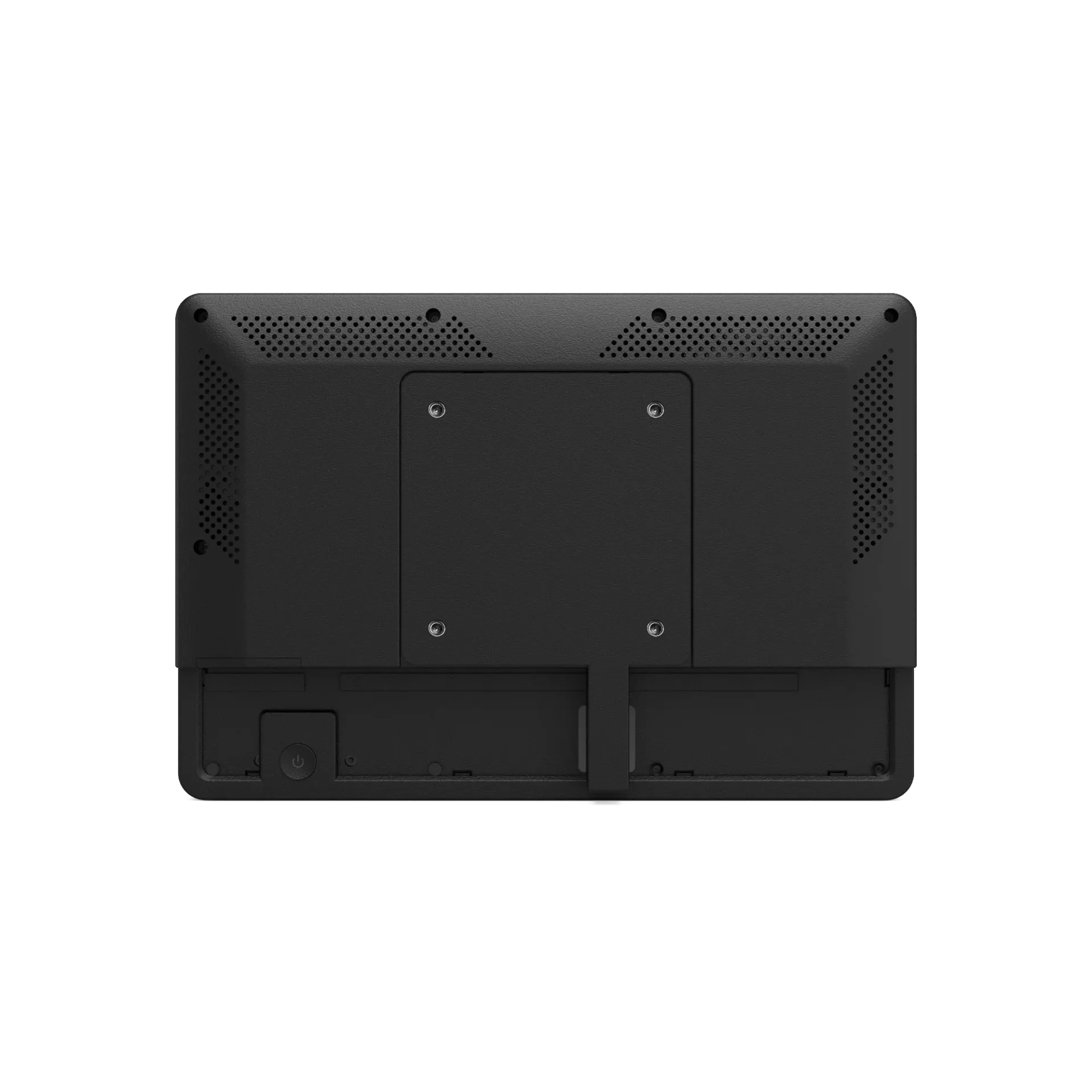

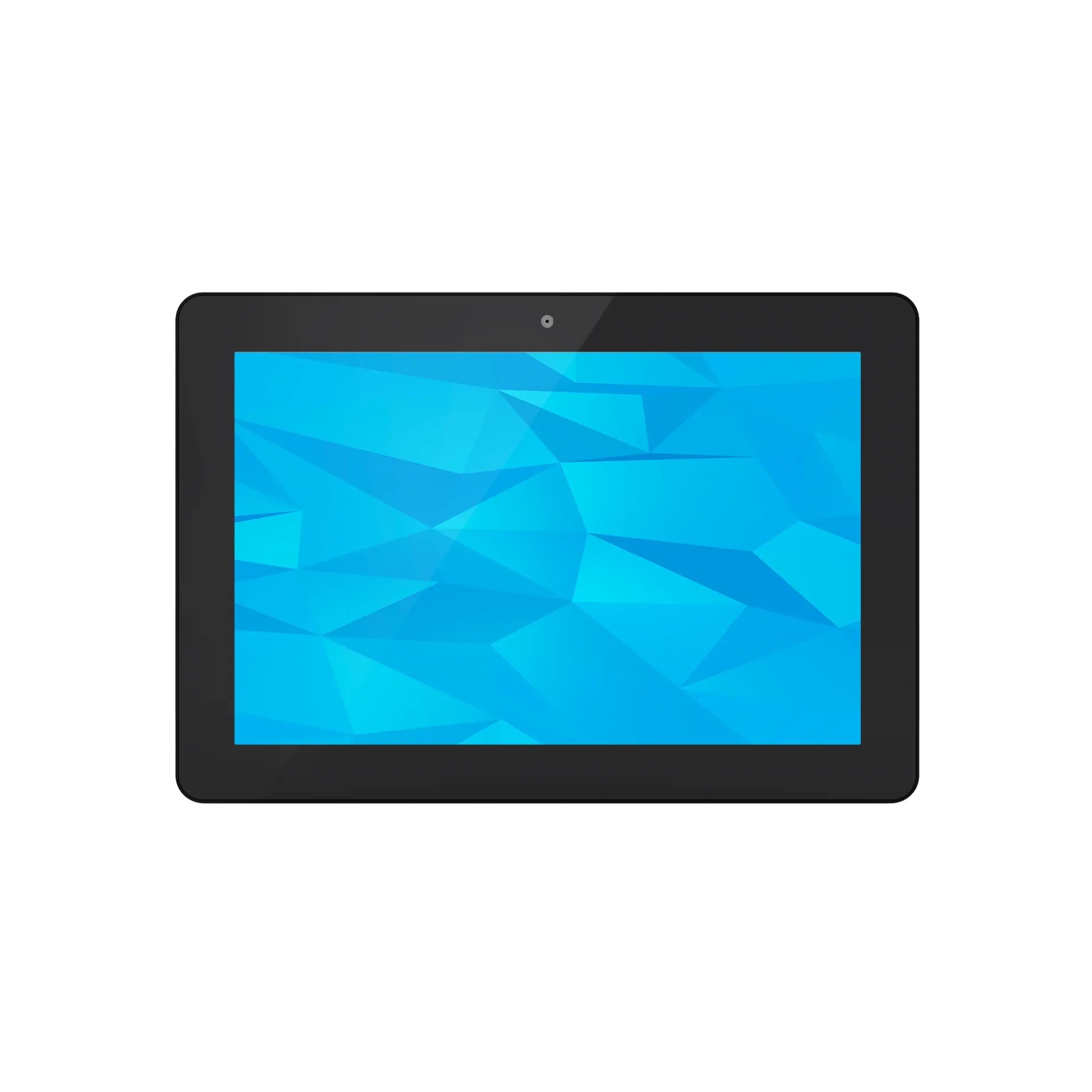

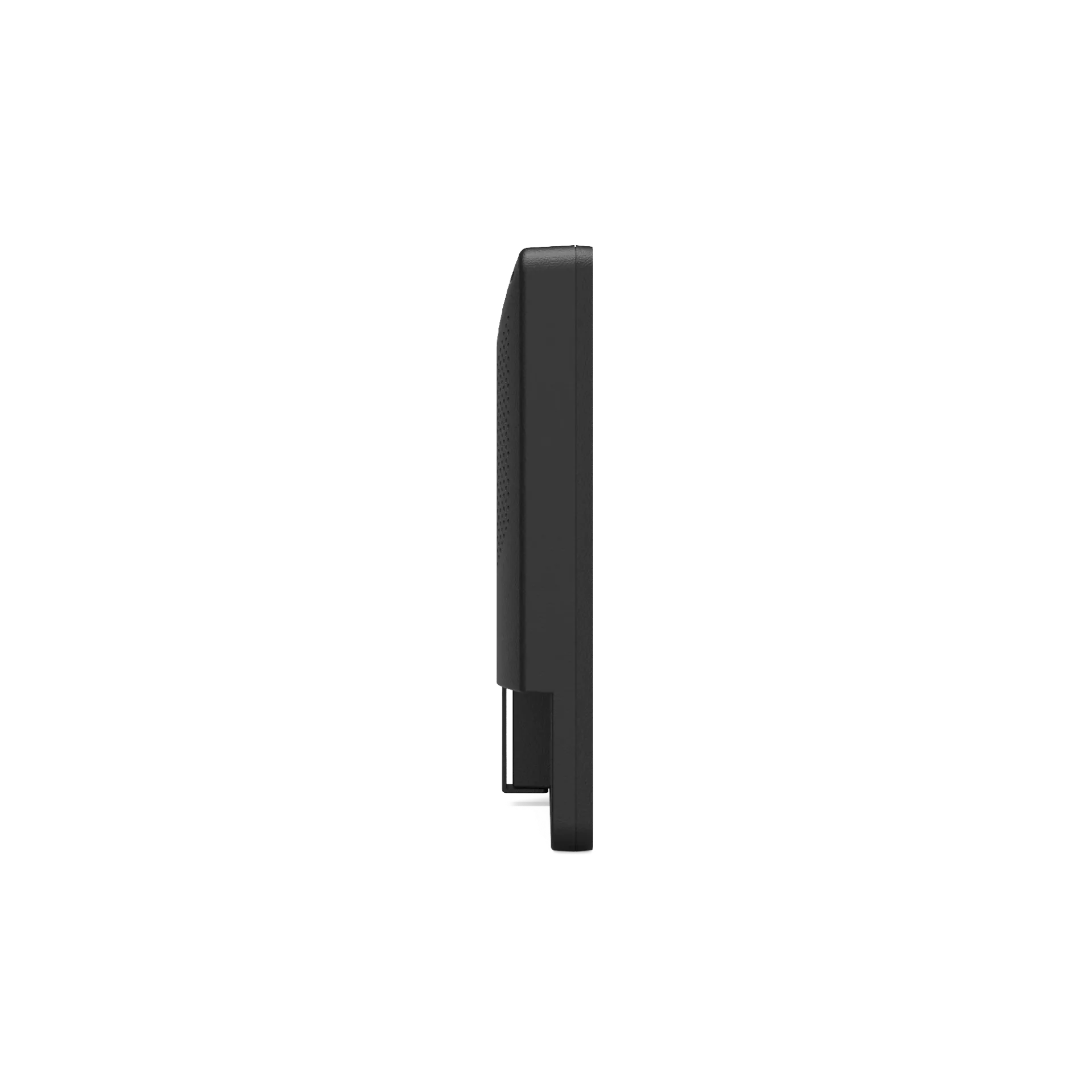

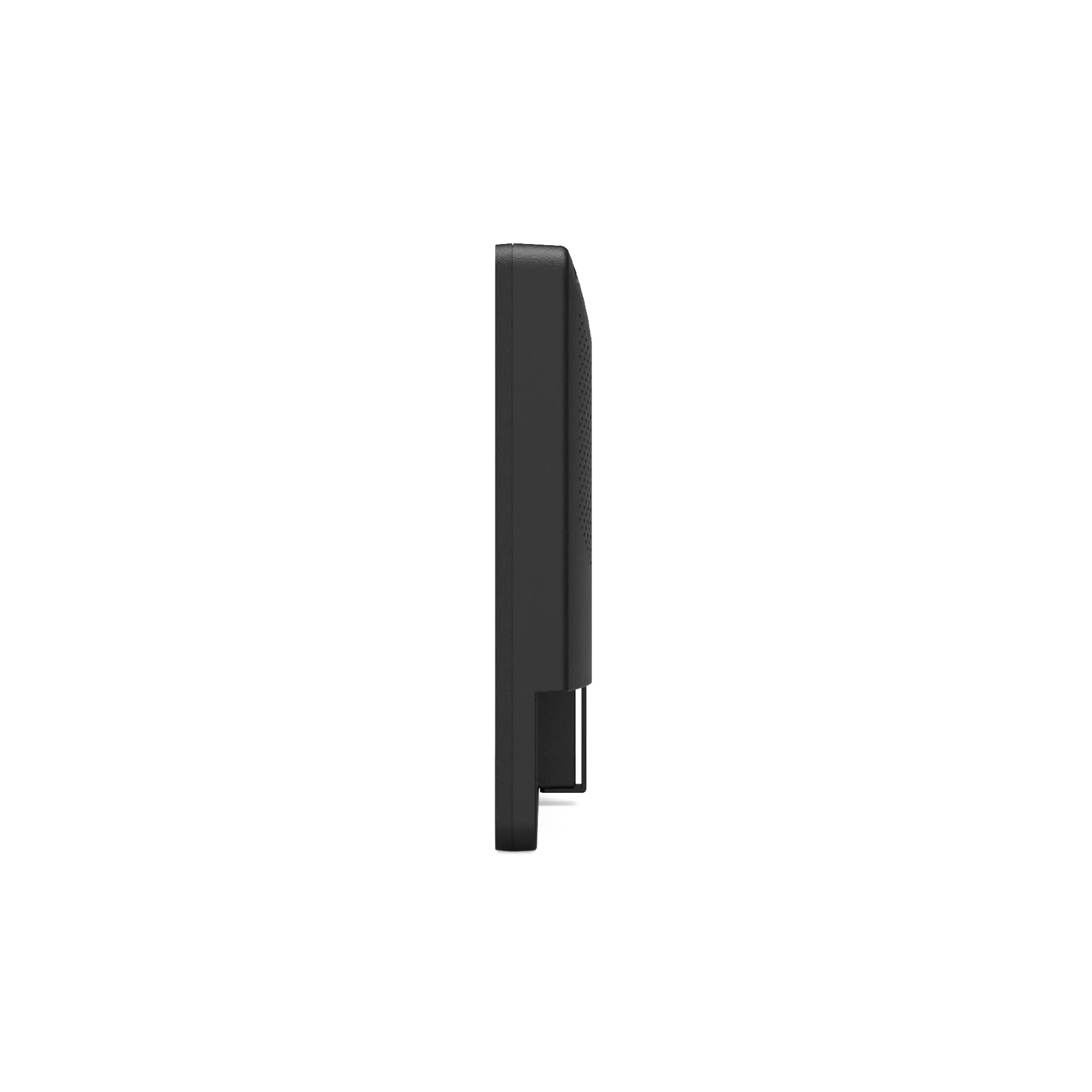

WF1032T 10.1" Touchscreen Signage
Quick Specifications
- Diagonal Size10.1-inch (LCD)
- Resolution1280 x 800 pixels
- Aspect Ratio16:10
- Viewing AngleR/L 85/85, U/D 85/85
- Display ModeNormally black
- Contrast Ratio800:1
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
10.1-inch (LCD)
Resolution
1280 x 800 pixels
Aspect Ratio
16:10
Viewing Angle
R/L 85/85, U/D 85/85
Display Mode
Normally black
Contrast Ratio
800:1
Luminance
250 nits
Number of Points
10-point
CPU
WF1032T: RK3288 Quad-core cortex A17WF1033T: RK3399 Dual-core cortex A72 + Quad-core cortex A53WF10
RAM
WF1032T: 2GBWF1033T: 2GB (Optional 4GB)WF1036T: 2GB (Optional 4GB)WF1038T: 2GB (Optional 4GB)
ROM
WF1032T: 16GBWF1033T: 16GB (Optional 32GB/64GB)WF1036T: 16GB (Optional 32GB/64GB)WF1038T: 16GB (Opti
Operating System
WF1032T: Android 5.1/8.1/10.0WF1033T: Android 7.1/10.0WF1036T: Android 11WF1038T: Android 11
Dimensions
259.36 × 178.36 × 28.70 mm (L × W × D)
WiFi
WF1032T: IEEE 802.11b/g/nWF1033T: IEEE 802.11a/b/g/n/acWF1036T: IEEE 802.11b/g/nWF1038T: IEEE 802.11
USB
WF1032T: USB for serial (RS232 Level), Optional USB HostWF1033T: USB for serial (RS232 Level), Optio
Micro USB
Micro USB OTG
Power Port
DC power input
Video Format
WF1032T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4KWF1033T: MPEG-1, MPE
Audio Format
MP3/WMA/AAC, etc
WF1032T: JPEGWF1033T: JPEGWF1036T: JPEGWF1038T: JPEG/PNG
VESA
75mm × 75mm
Speaker
2W*2
Microphone
Single microphone
NFC
WF1032T: Optional 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felicaWF1033T: Optional
Camera
Routine angle 5.0MP
Language
Multi-language
Certificates
CE/FCC
Operating Temperature
0℃-40℃
Adapter
12V/1.5A
User Manual
×1
