Touchscreen Signages 8"-55"

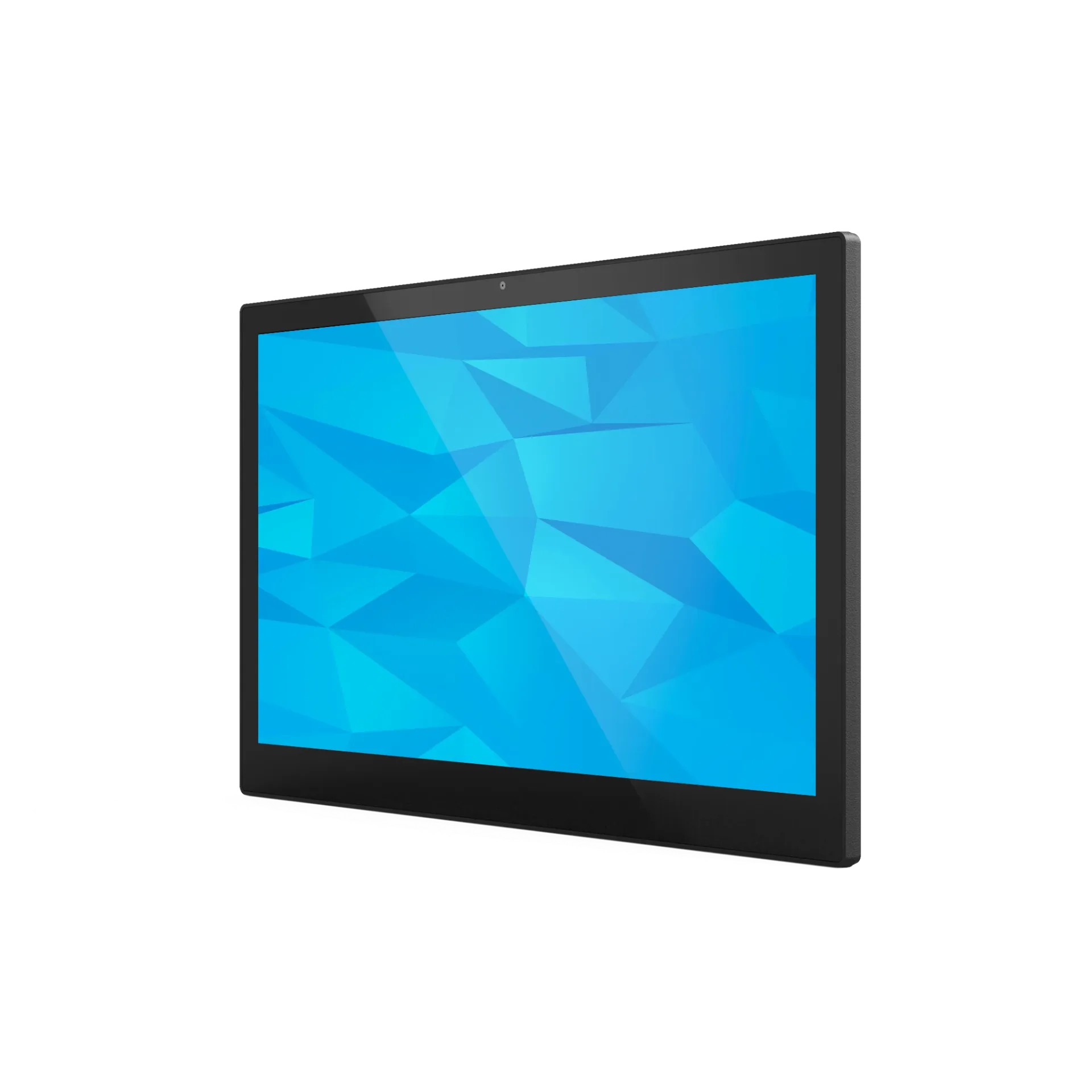

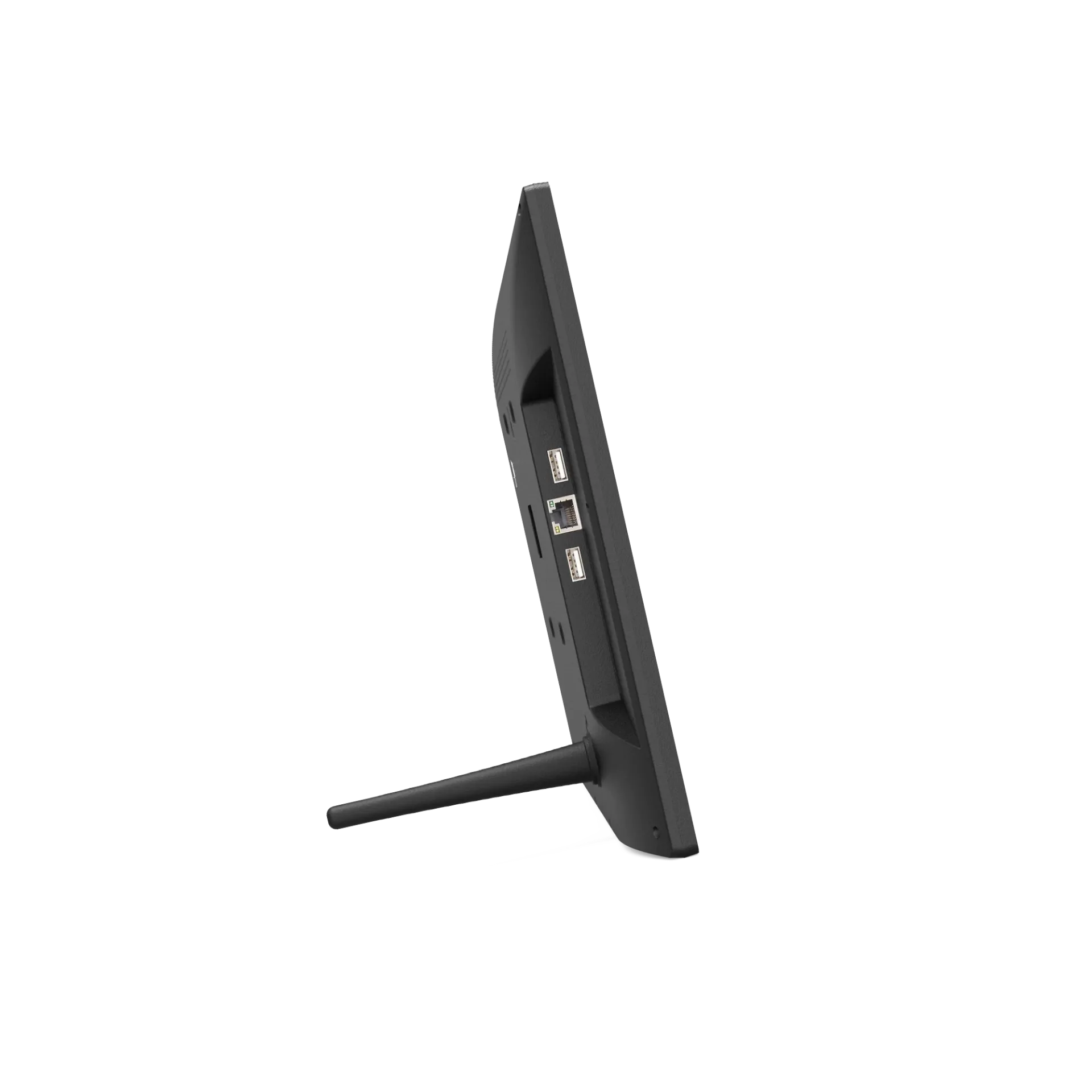

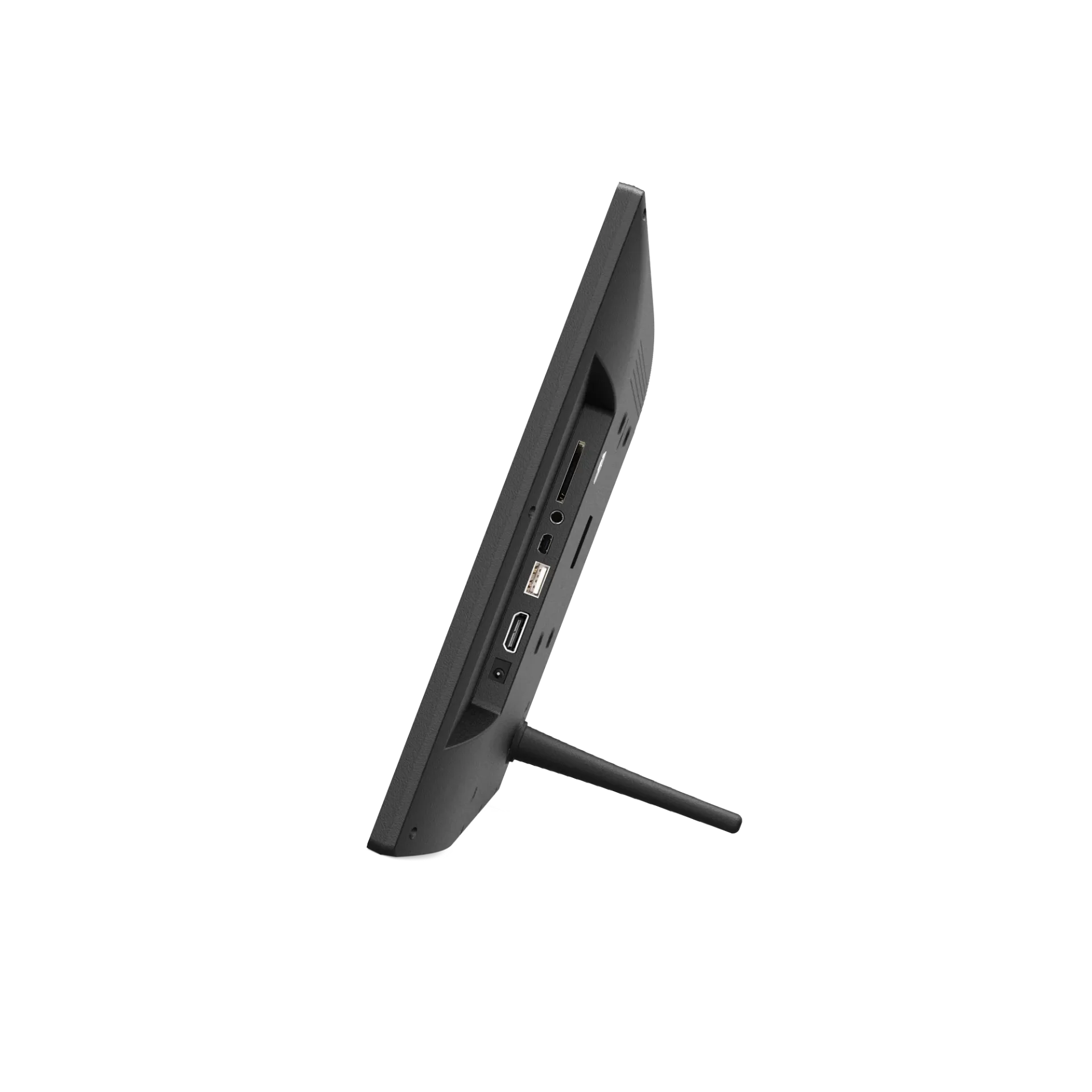

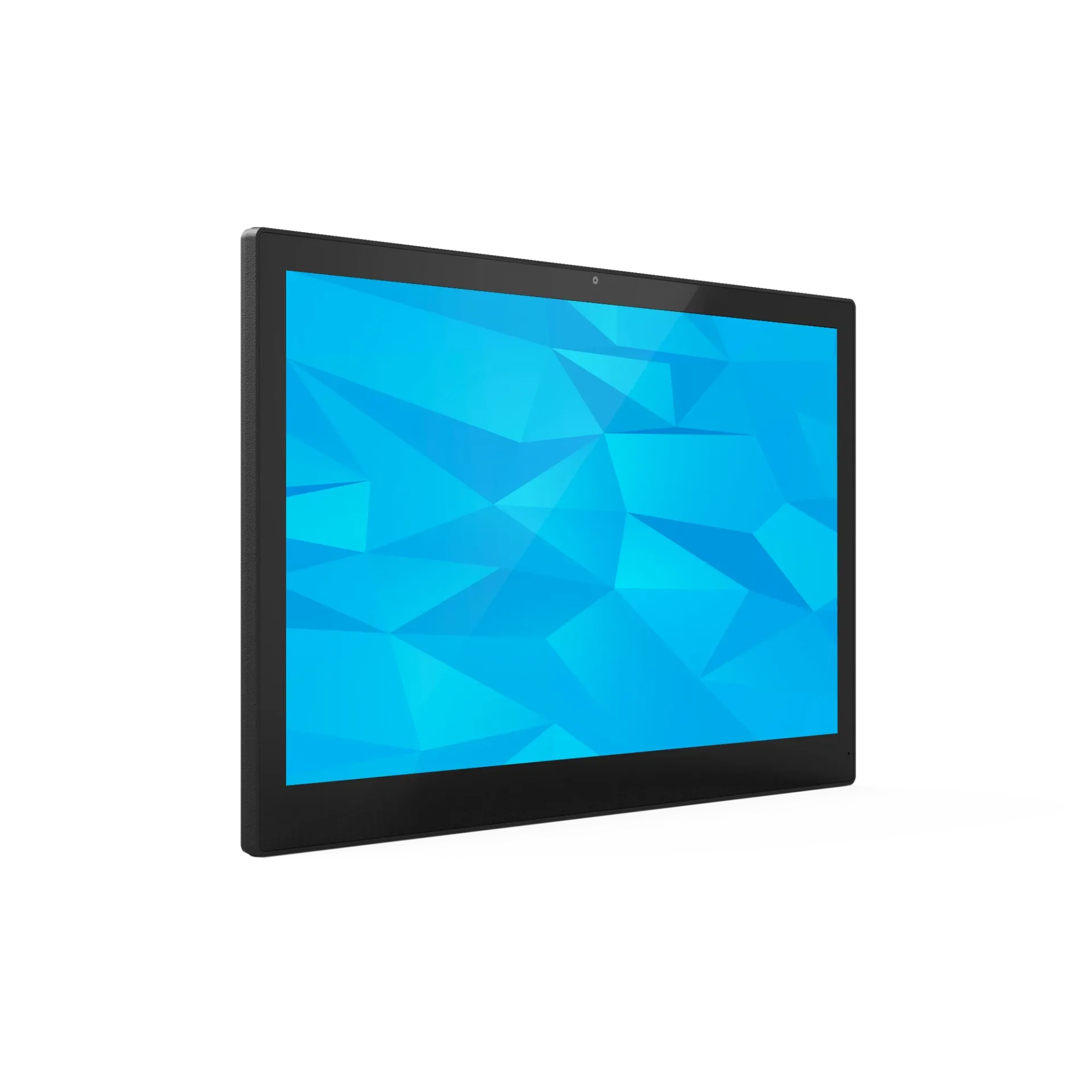

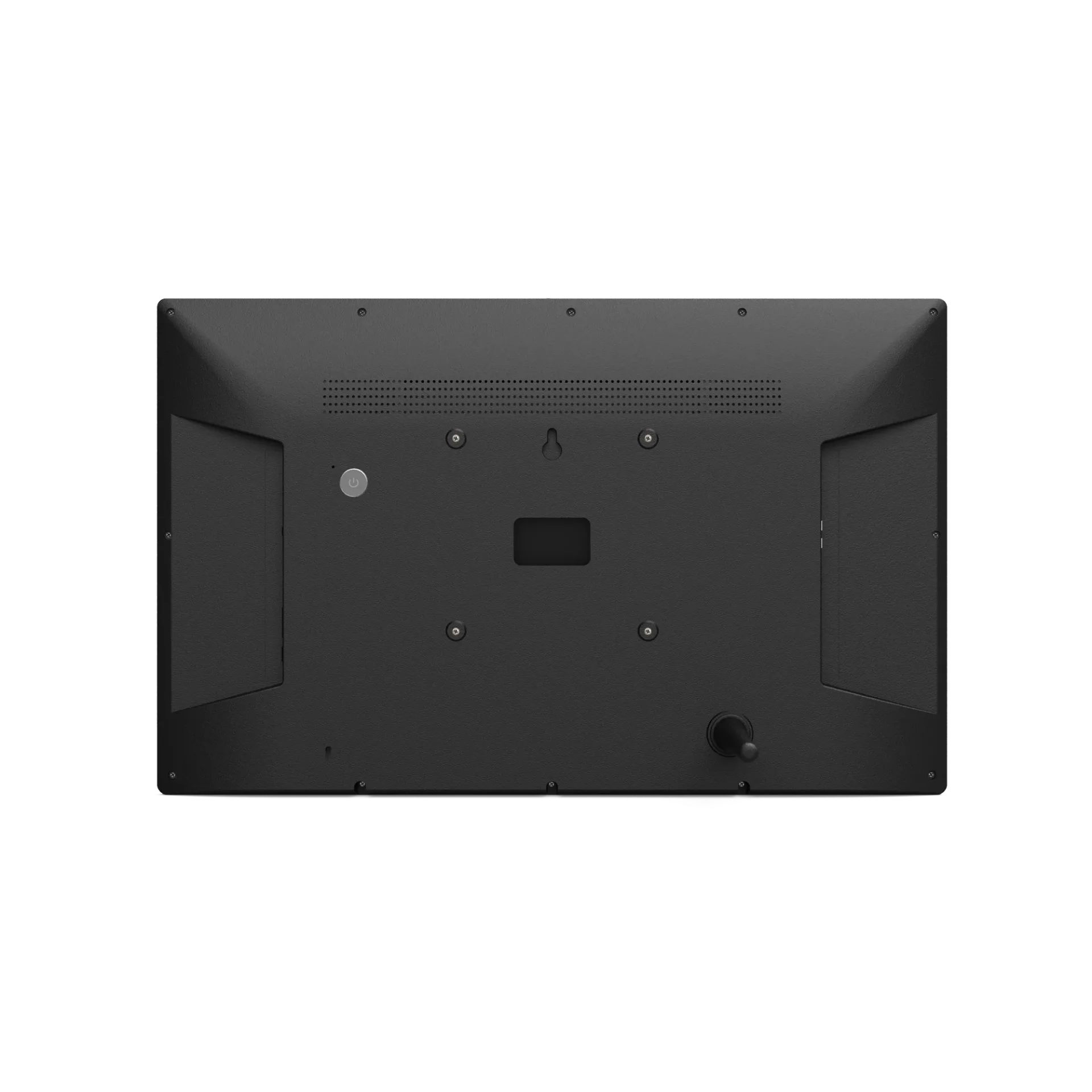

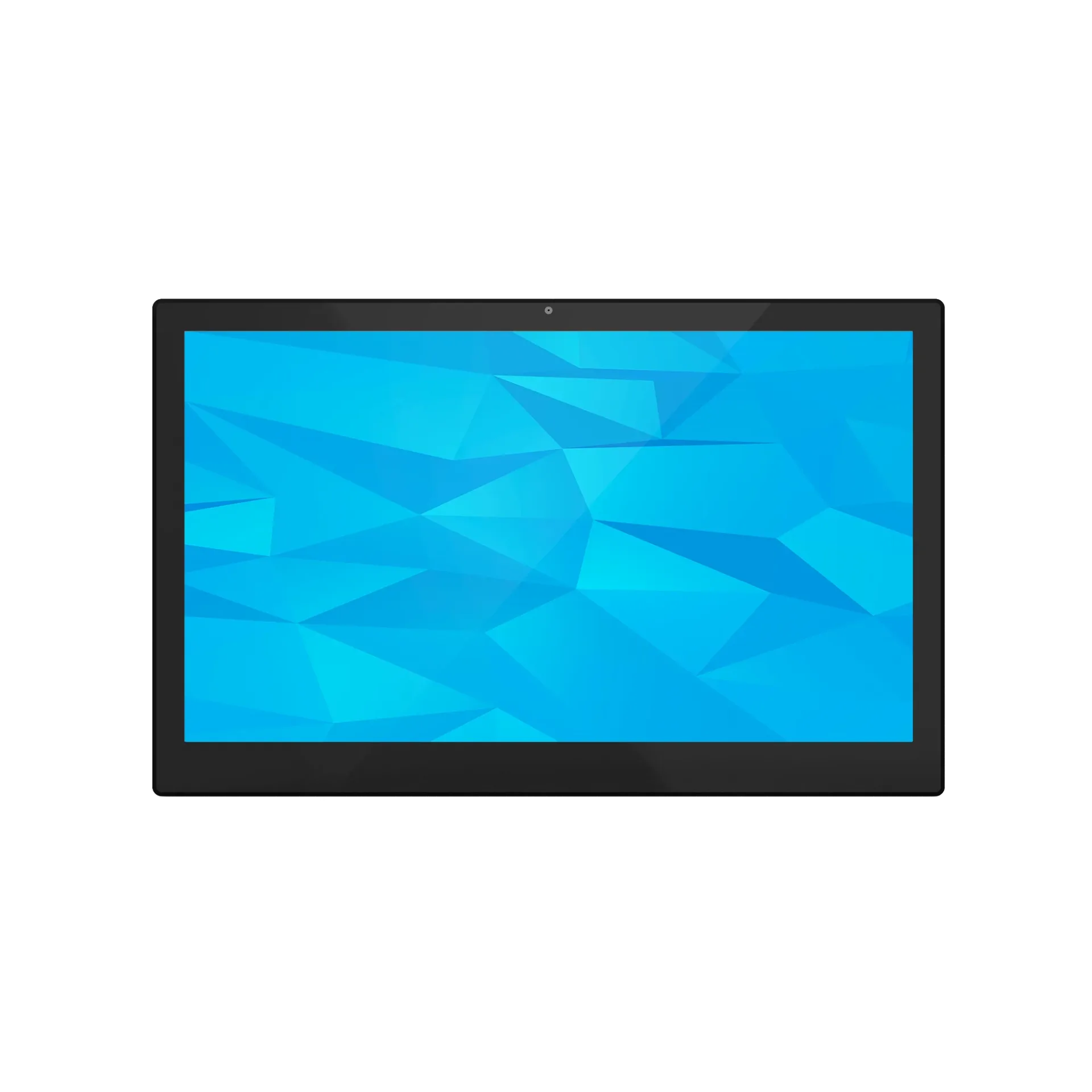

WF1732T 17.3" Touchscreen Signage
Quick Specifications
- Diagonal Size17.3-inch (LCD)
- Resolution1920 x 1080 pixels
- Aspect Ratio16:9
- Viewing AngleR/L 85/85, U/D 85/85
- Display ModeNormally black
- Contrast Ratio800:1
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
17.3-inch (LCD)
Resolution
1920 x 1080 pixels
Aspect Ratio
16:9
Viewing Angle
R/L 85/85, U/D 85/85
Display Mode
Normally black
Contrast Ratio
800:1
Luminance
250 nits
Number of Points
10-point
CPU
WF1732T: RK3288 Quad-core cortex A17WF1733T: RK3399 Dual-core A72+Quad-core A53WF1736T: RK3566 Quad-
RAM
WF1732T: 2GBWF1733T: 2GB (Optional 4GB)WF1736T: 2GB (Optional 4GB)WF1738T: 2GB (Optional 4GB)
ROM
WF1732T: 16GBWF1733T: 16GB (Optional 32GB/64G)WF1736T: 16GB (Optional 32GB/64G)WF1738T: 16GB (Option
Operating System
WF1732T: Android 5.1/6.0/8.1/10.0WF1733T: Android 7.1/10.0WF1736T: Android 11WF1738T: Android 11
Dimensions
417.19 x 262.8 x 26 mm (L × W × D)
WiFi
WF1732T: IEEE 802.11b/g/nWF1733T: IEEE 802.11a/b/g/n/acWF1736T: IEEE 802.11b/g/nWF1738T: IEEE 802.11
USB
WF1733T: USB 3.0 HostWF1736T: USB 3.0 HostWF1738T: USB 3.0 Host
Mini USB
USB OTG
HDMI
HDMI output
Power Port
DC power input
Earphone
3.5mm earphone
RJ45
Ethernet interface
Video Format
WF1732T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4KWF1733T: MPEG-1, MPE
Audio Format
MP3/WMA/AAC, etc
WF1732T: JPEGWF1733T: JPEGWF1736T: JPEGWF1738T: JPEG/PNG
Color
Black
VESA
100mm × 100mm
Speaker
2W*2
Microphone
Single microphone
Camera
WF1732T: Routine angle 2.0MPWF1733T: Routine angle 2.0MPWF1736T: Routine angle 5.0MPWF1738T: Routine
Language
Multi-language
Certificates
CE/FCC
Operating Temperature
0℃-40℃
Adapter
12V/3A
User Manual
×1
Stand
×1
