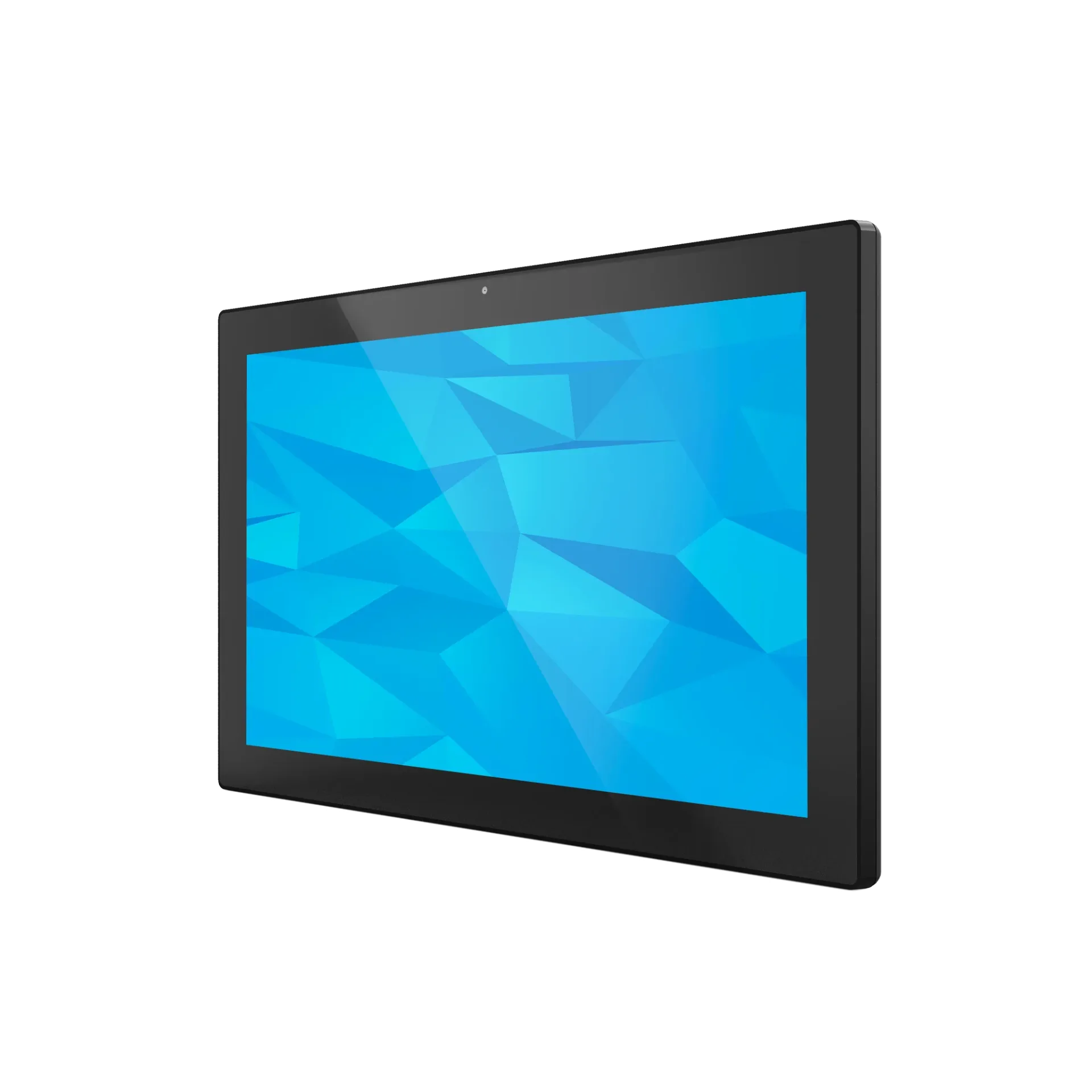

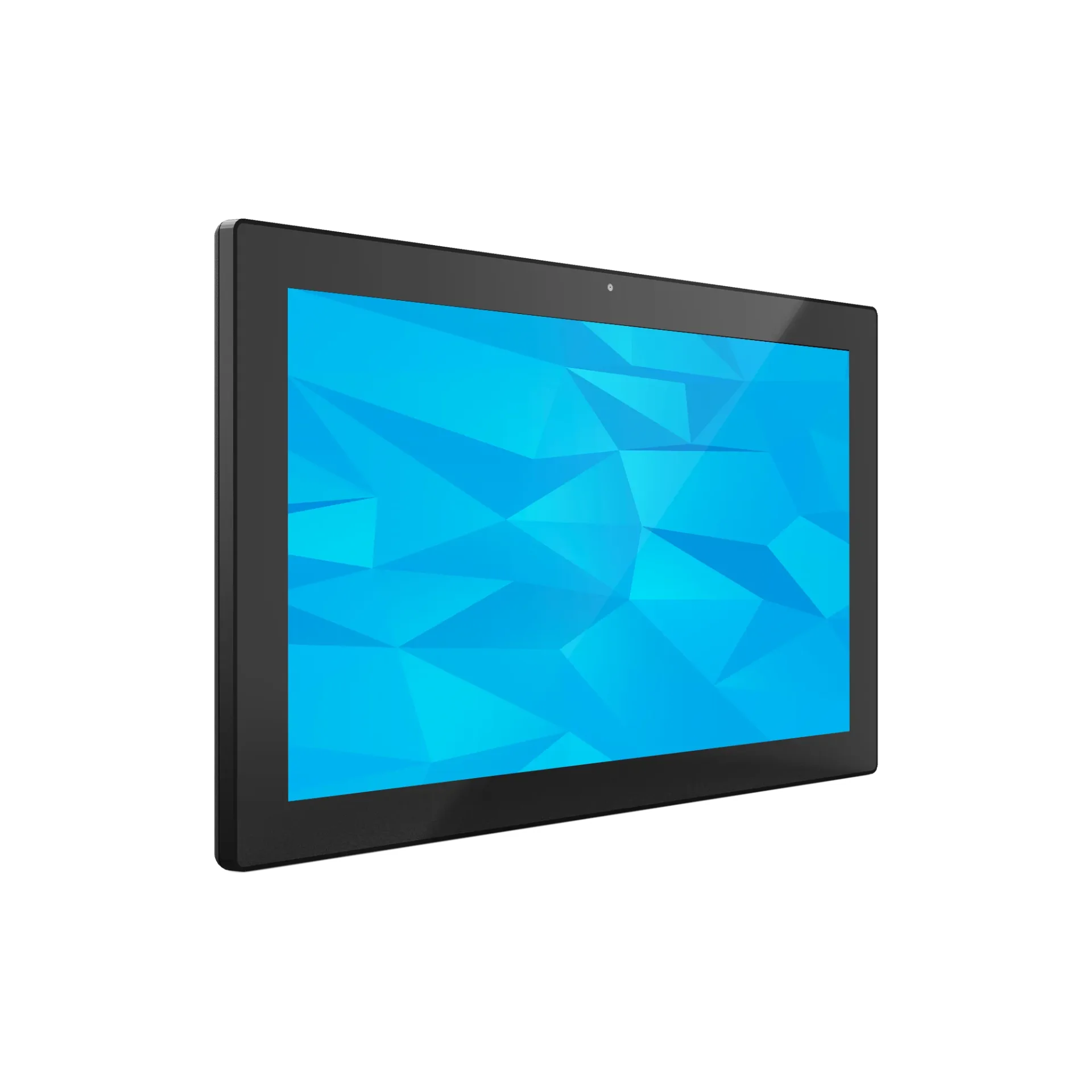

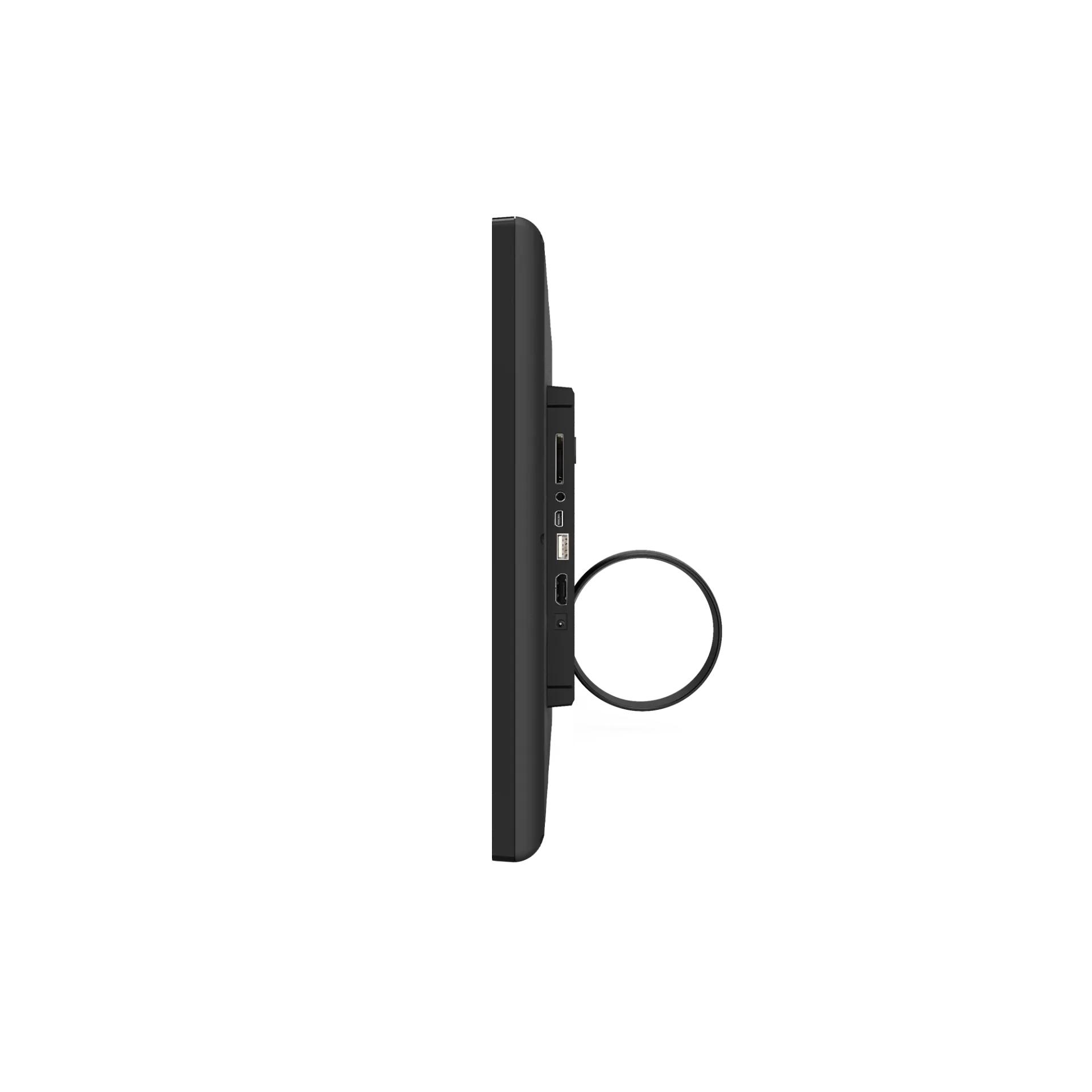

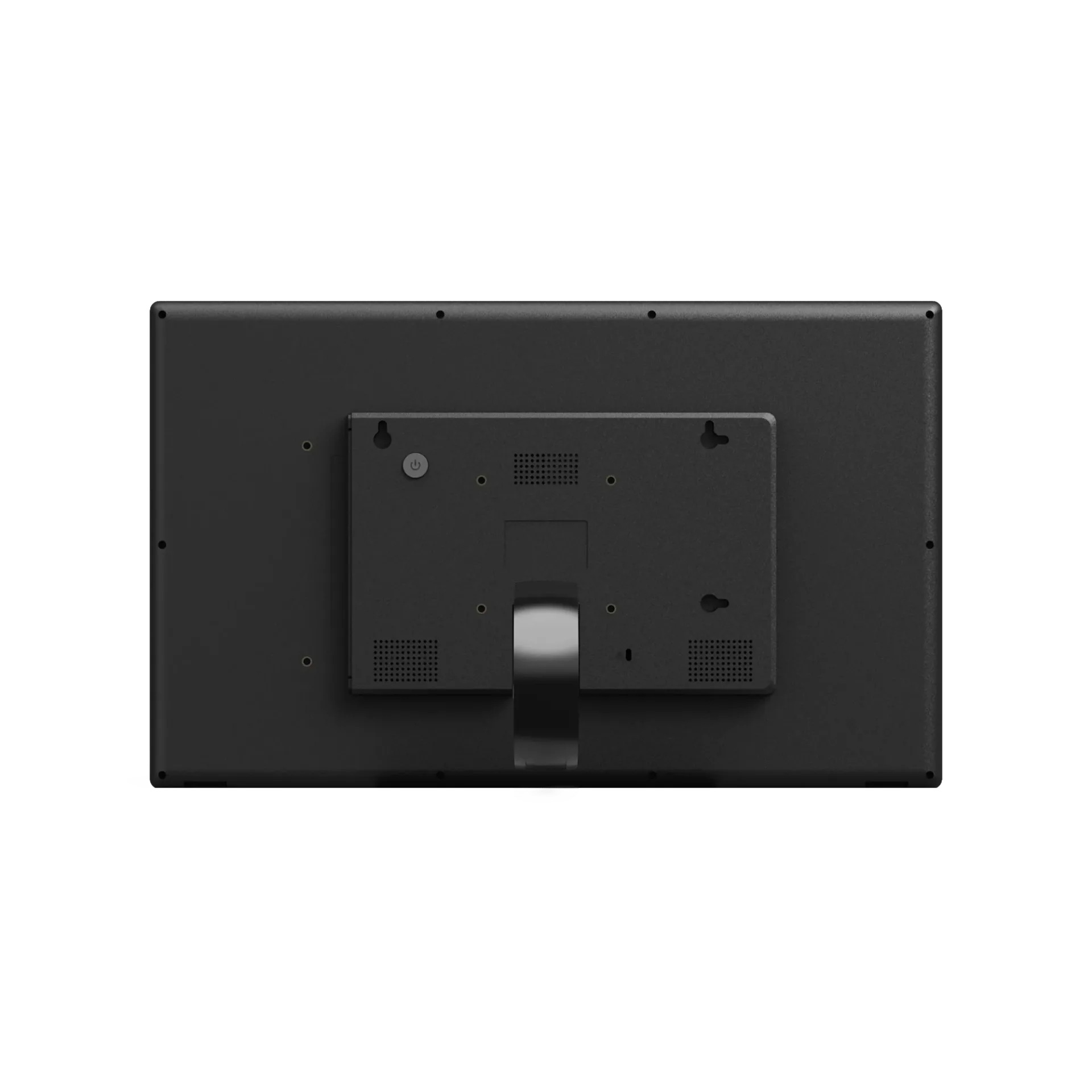

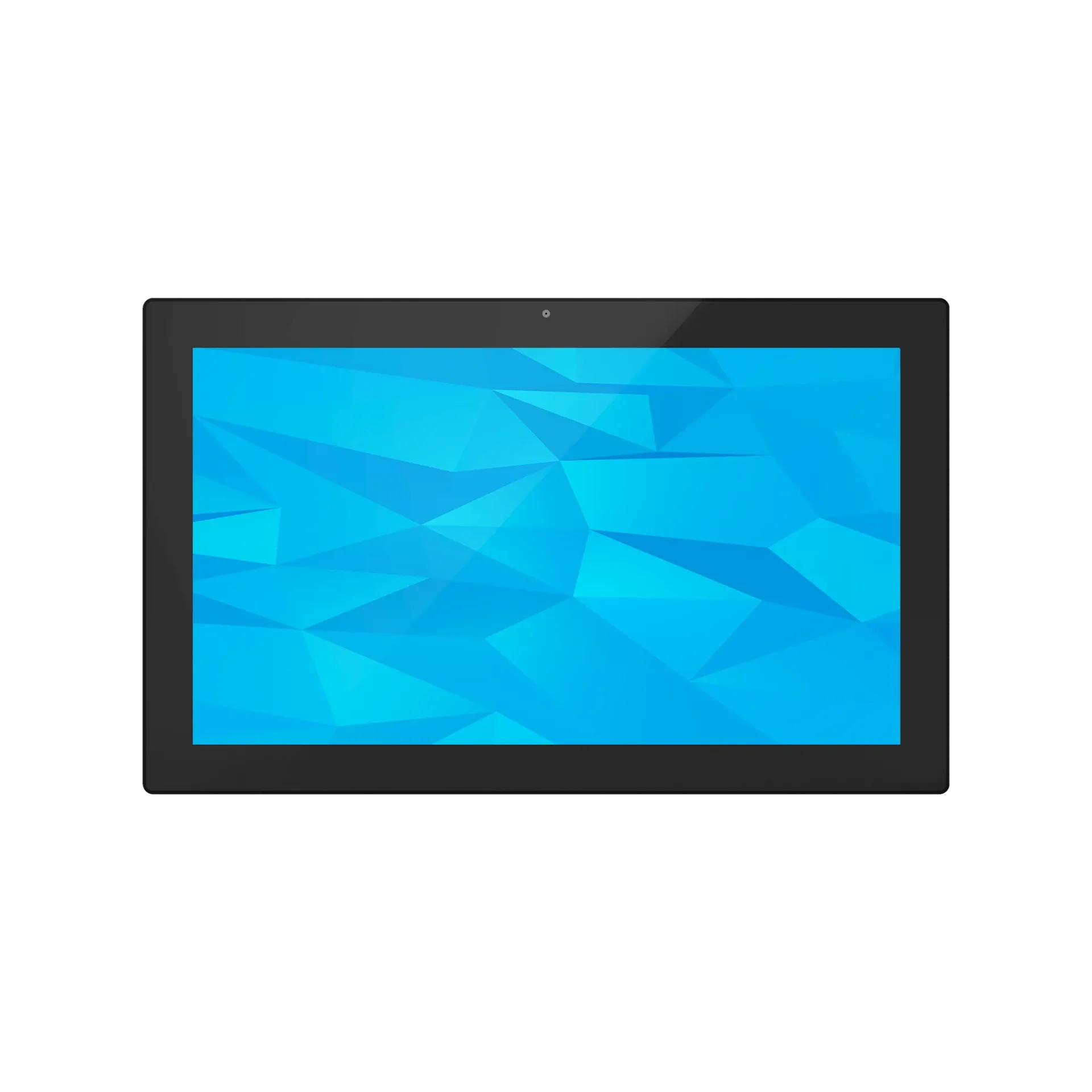

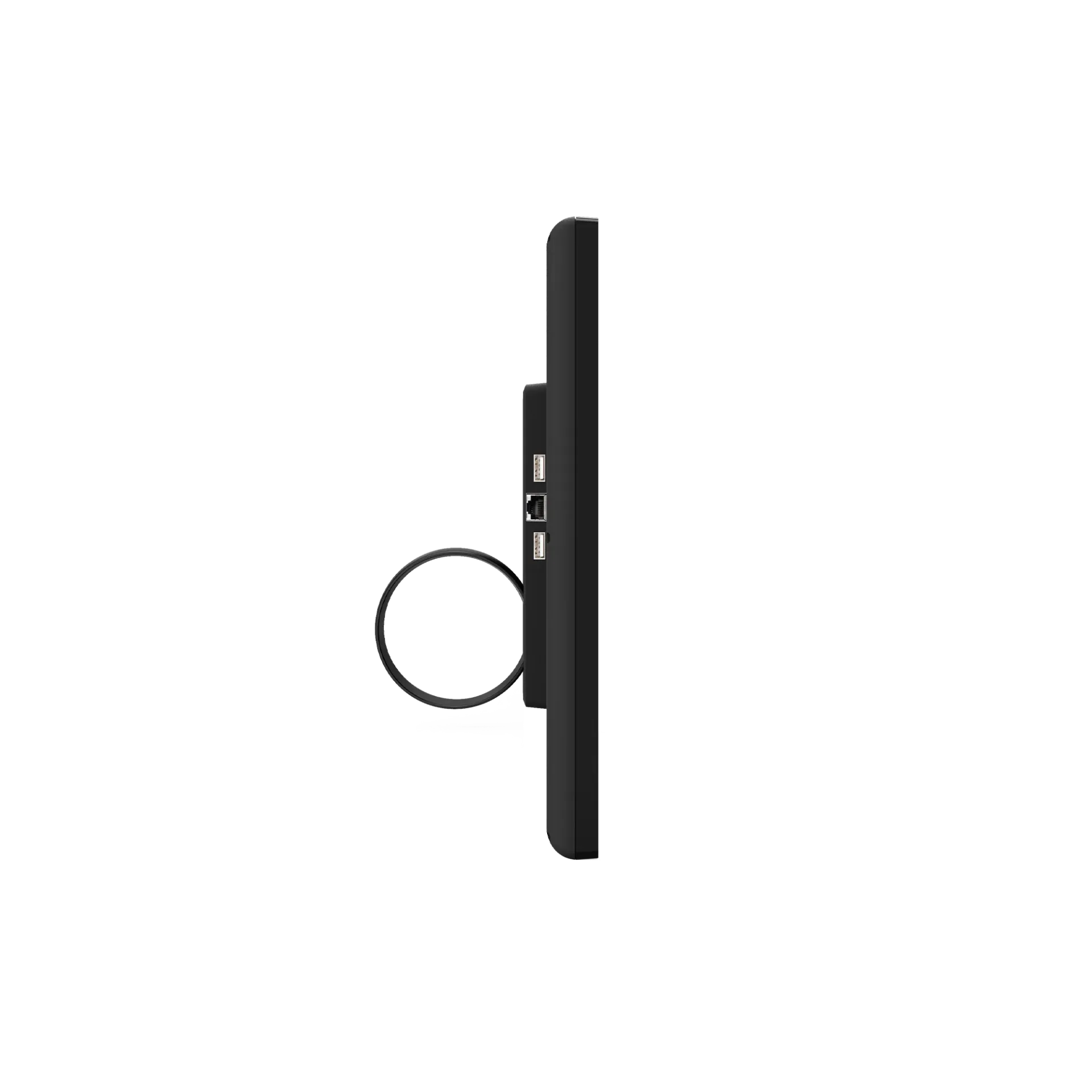

WF1852T 18.5" Touchscreen Signage
Quick Specifications
- Diagonal Size18.5-inch (LCD)
- Resolution1920 x 1080 pixels
- Aspect Ratio16:9
- Viewing AngleR/L 85/85, U/D 85/85
- Display ModeNormally black
- Contrast Ratio800:1
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
18.5-inch (LCD)
Resolution
1920 x 1080 pixels
Aspect Ratio
16:9
Viewing Angle
R/L 85/85, U/D 85/85
Display Mode
Normally black
Contrast Ratio
800:1
Luminance
250 nits
Number of Points
10-point
CPU
WF1852T: RK3288 Quad-core cortex A17WF1853T: RK3399 Dual-core A72+Quad-core A53WF1856T: RK3566 Quad-
RAM
WF1852T: 2GBWF1853T: 2GB (Optional 4GB)WF1856T: 2GB (Optional 4GB)WF1858T: 2GB (Optional 4GB)WF1855T
ROM
WF1852T: 16GBWF1853T: 16GB (Optional 32GB/64G)WF1856T: 16GB (Optional 32GB/64G)WF1858T: 16GB (Option
Operating System
WF1852T: Android 5.1/6.0/8.1/10.0WF1853T: Android 7.1/10.0WF1856T: Android 11WF1858T: Android 11WF18
Dimensions
468 x 288 x 38 mm (L × W × D)
WiFi
WF1852T: IEEE 802.11b/g/nWF1853T: IEEE 802.11b/g/n/a/acWF1856T: IEEE 802.11b/g/nWF1858T: IEEE 802.11
USB
WF1853T: USB 3.0 HostWF1856T: USB 3.0 HostWF1858T: USB 3.0 HostWF1855T: USB 3.0 Host
Mini USB
WF1852T: USB OTGWF1853T: USB OTGWF1856T: USB OTGWF1858T: USB OTG
USB Type-C
WF1855T: Full Function (Except for charging function)
HDMI
WF1852T: HDMI outputWF1853T: HDMI outputWF1856T: HDMI outputWF1858T: HDMI outputWF1855T: HDMI iutput
Power Port
DC power input
Video Format
WF1852T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4KWF1853T: MPEG-1, MPE
Audio Format
MP3/WMA/AAC, etc
WF1852T: JPEGWF1853T: JPEGWF1856T: JPEGWF1858T: JPEG/PNGWF1855T: JPEG/PNG
Color
Black
VESA
75mm × 75mm
Speaker
3W*2
Microphone
Single microphone
Camera
WF1852T: Routine angle 2.0MPWF1853T: Routine angle 2.0MPWF1856T: Routine angle 5.0MPWF1858T: Routine
Language
Multi-language
Certificates
CE/FCC
Operating Temperature
0℃-40℃
Adapter
12V/3A
User Manual
×1
Stand
×1
