Touchscreen Signages 8"-55"

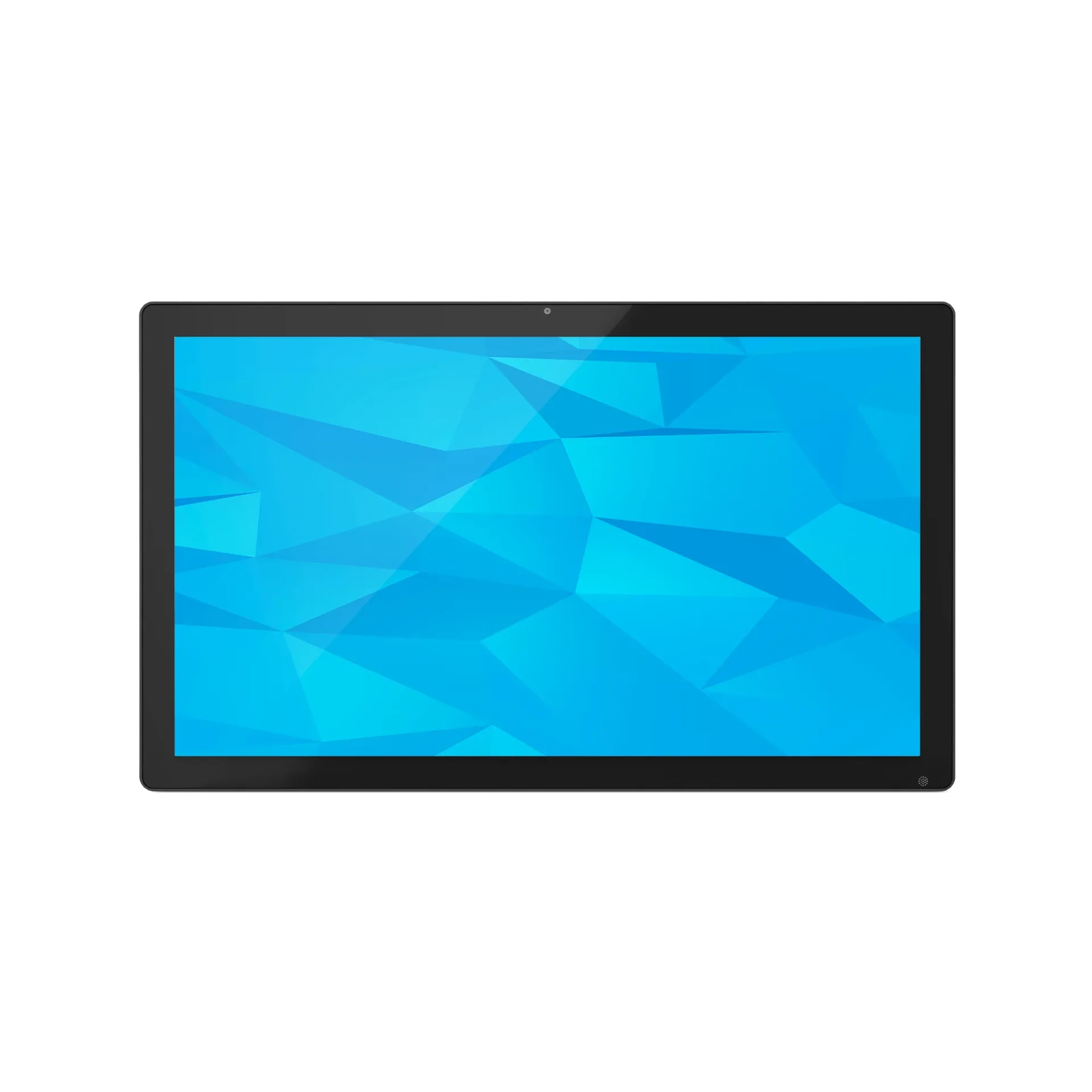

WF2402T 24" Touchscreen Signage
Quick Specifications
- Diagonal Size24-inch (LCD)
- Resolution1920 x 1080 pixels
- Aspect Ratio16:9
- Viewing AngleR/L 85/85, U/D 85/85
- Display ModeNormally black
- Contrast Ratio800:1
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
24-inch (LCD)
Resolution
1920 x 1080 pixels
Aspect Ratio
16:9
Viewing Angle
R/L 85/85, U/D 85/85
Display Mode
Normally black
Contrast Ratio
800:1
Luminance
250 nits
Number of Points
10-point
CPU
WF2402T: RK3288 Quad-core cortex A17WF2403T: RK3399 Dual-core A72+Quad-core A53WF2406T: RK3566 Quad-
RAM
WF2402T: 2GBWF2403T: 2GB (Optional 4GB)WF2406T: 2GB (Optional 4GB)WF2408T: 2GB (Optional 4GB)WF2405T
Operating System
WF2402T: 16GBWF2403T: 16GB (Optional 32GB/64GB)WF2406T: 16GB (Optional 32GB/64GB)WF2408T: 16GB (Opti
Dimensions
580 x 349.2 x 32.5 mm (L × W × D)
WiFi
WF2402T: IEEE 802.11a/b/g/nWF2403T: IEEE 802.11a/b/g/n/ac/axWF2406T: IEEE 802.11a/b/g/nWF2408T: IEEE
USB
WF2403T: USB 3.0 HostWF2406T: USB 3.0 HostWF2408T: USB 3.0 HostWF2405T: USB 3.0 Host
USB Type-C
WF2405T: Full Function (Except for charging function)
Mini USB
WF2402T: USB OTGWF2403T: USB OTGWF2406T: USB OTGWF2408T: USB OTG
HDMI
WF2402T: HDMI outputWF2403T: HDMI outputWF2406T: HDMI outputWF2408T: HDMI outputWF2405T: HDMI input
Power Port
DC power input
Video Format
WF2402T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, etc. support up to 4KWF2403T: MPEG-
Audio Format
MP3/WMA/AAC, etc
WF2402T: JPEGWF2403T: JPEGWF2406T: JPEGWF2408T: JPEG/PNGWF2405T: JPEG/PNG
Color
Black
VESA
100mm × 100mm
Speaker
3W*2
Microphone
WF2403T: Single microphoneWF2406T: Single microphoneWF2408T: Single microphoneWF2405T: Single microp
Camera
Routine angle 5.0MP
Language
Multi-language
Certificates
CE/FCC
Operating Temperature
0℃-40℃
Adapter
12V/4A
User Manual
×1
Stand
×1
