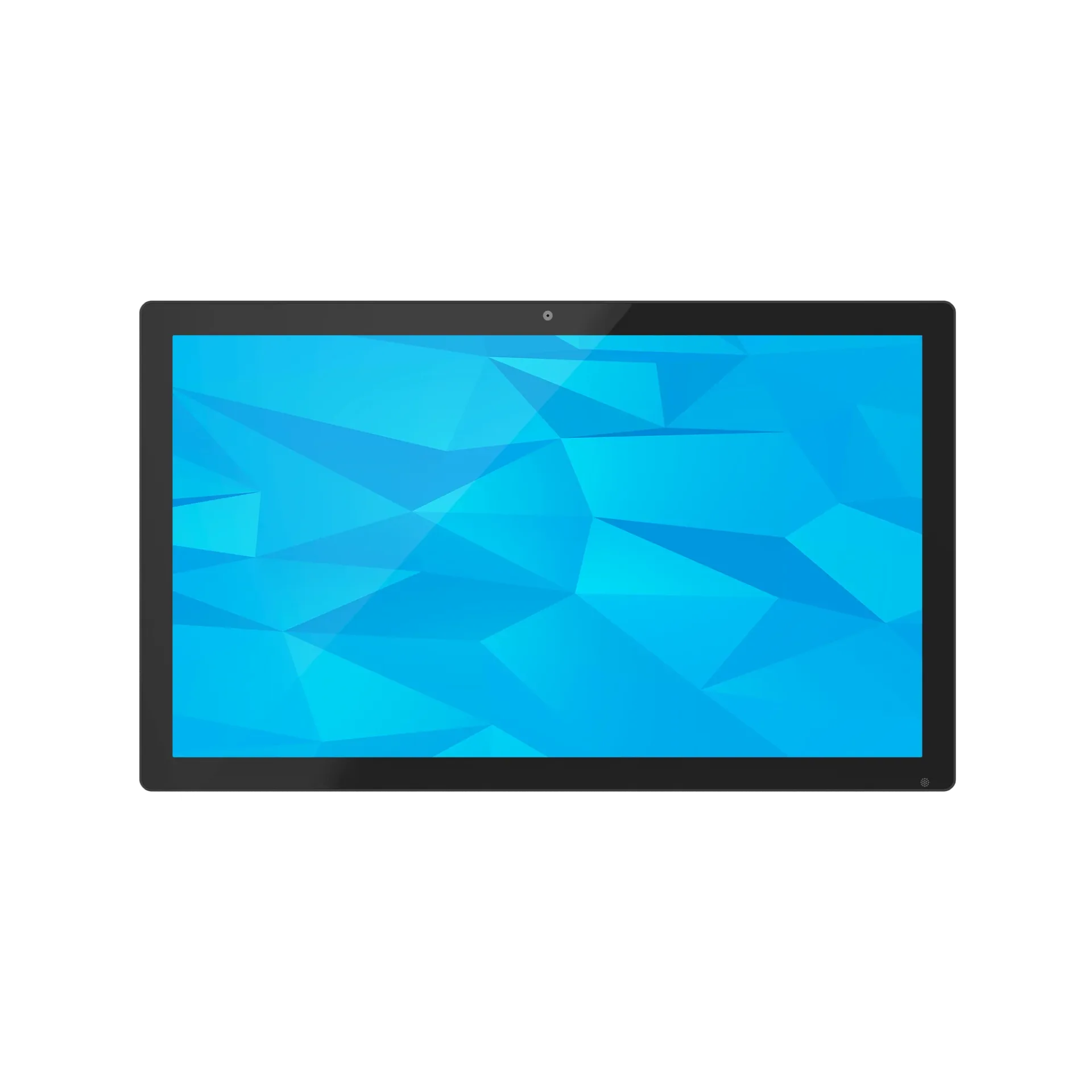

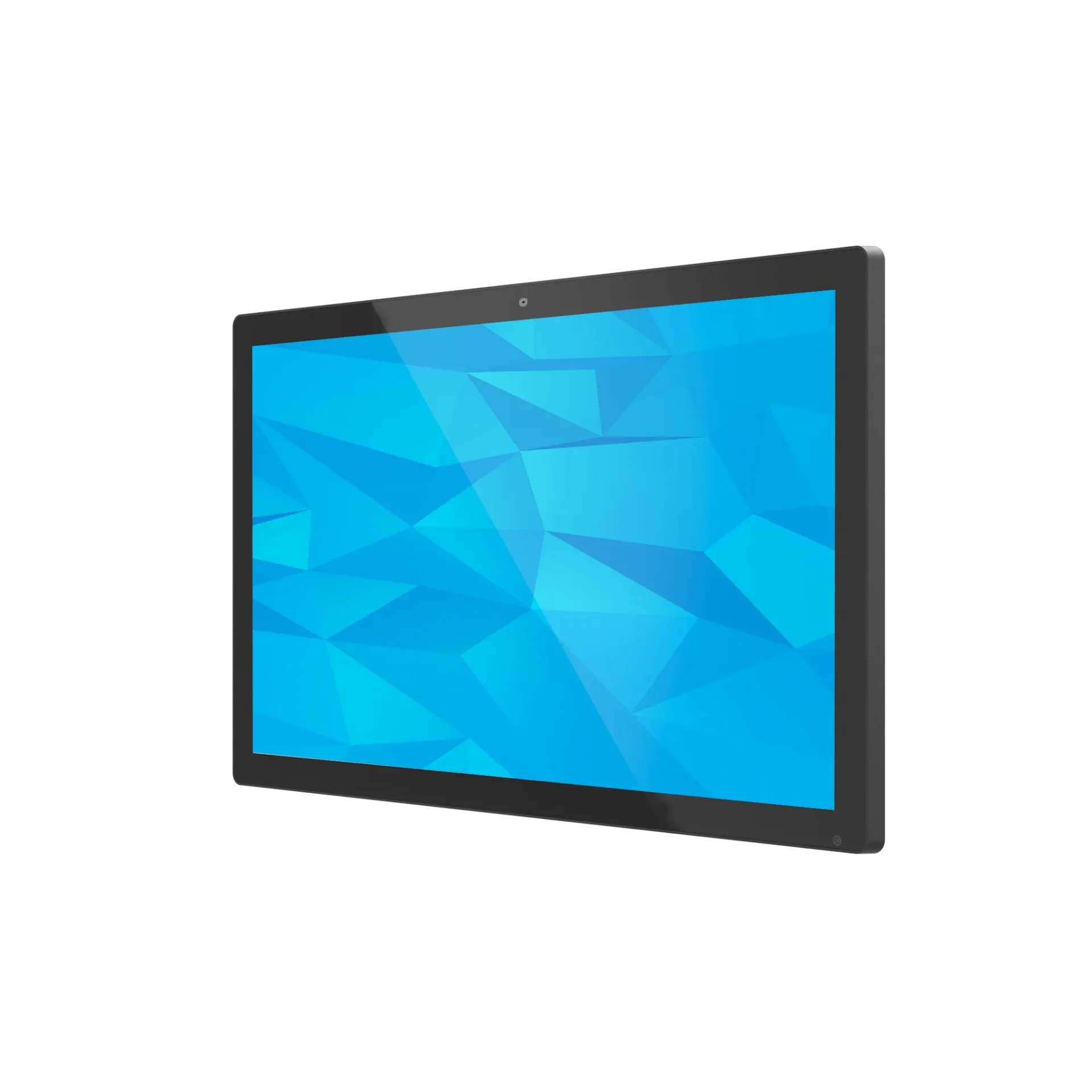

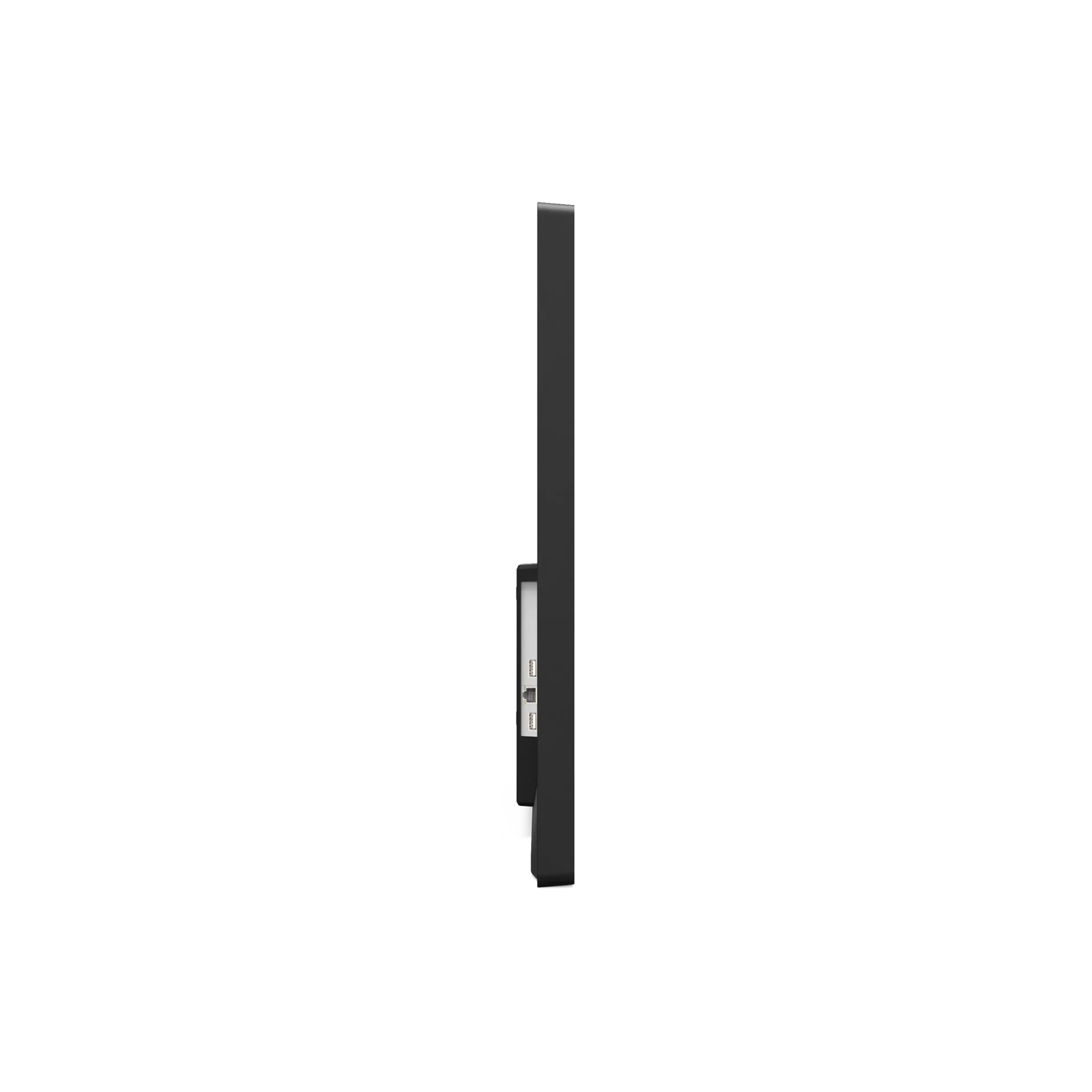

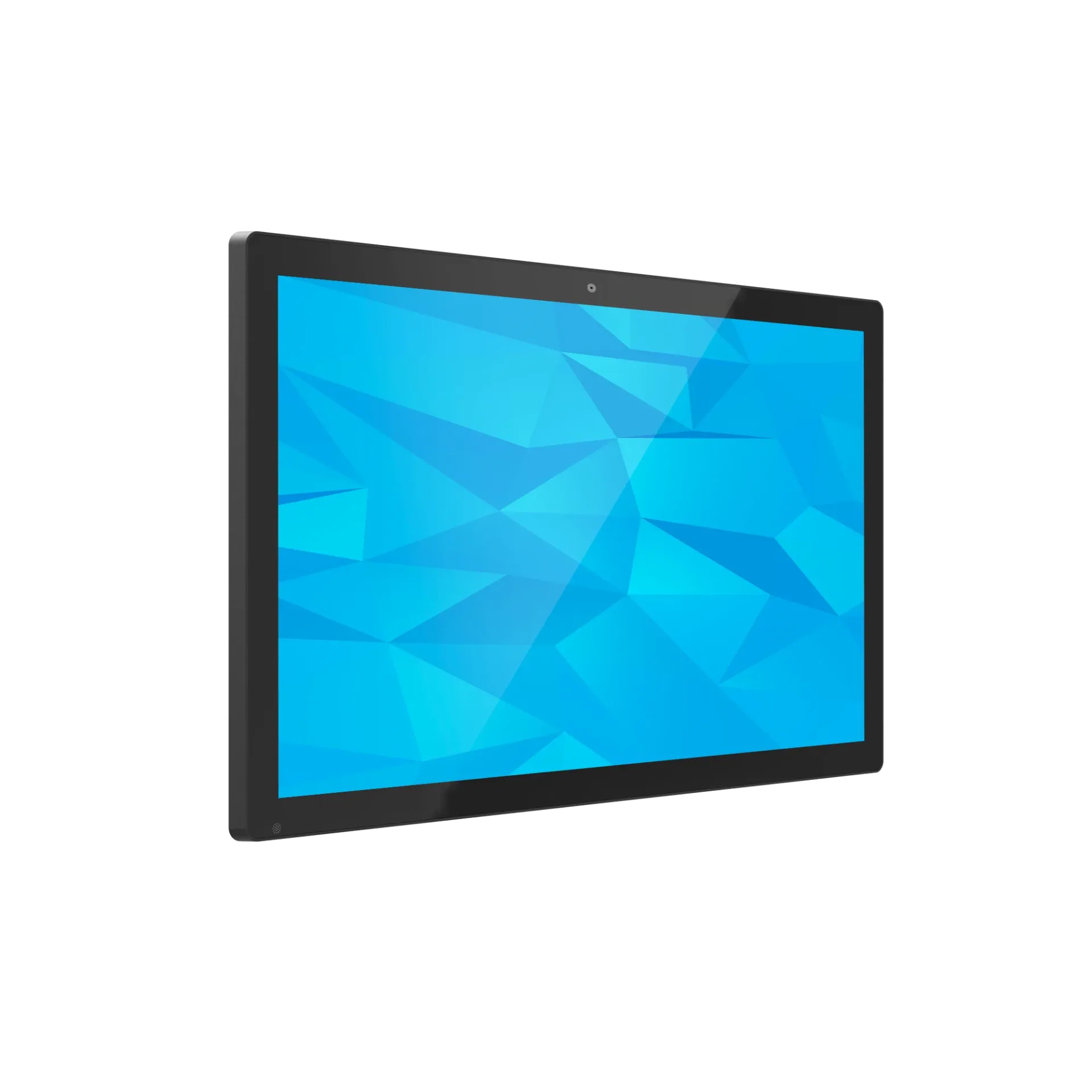

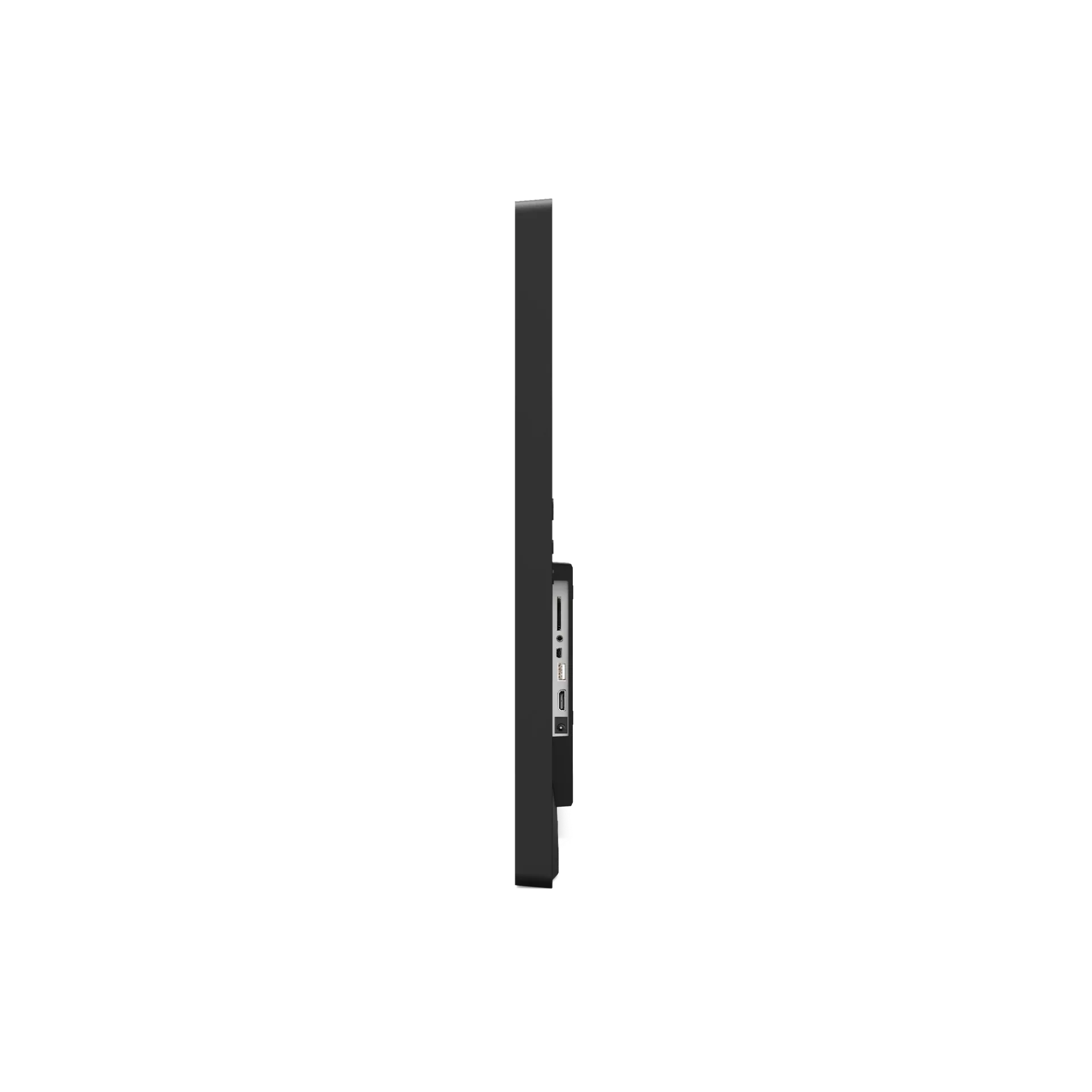

WF2702T 27" Touchscreen Signage
Quick Specifications
- Diagonal Size27-inch (LCD)
- Resolution1920 x 1080 pixels
- Aspect Ratio16:9
- Viewing AngleR/L 85/85, U/D 85/85
- Display ModeNormally black
- Contrast Ratio800:1
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
27-inch (LCD)
Resolution
1920 x 1080 pixels
Aspect Ratio
16:9
Viewing Angle
R/L 85/85, U/D 85/85
Display Mode
Normally black
Contrast Ratio
800:1
Response Time
8ms
Luminance
250 nits
Number of Points
10-point
CPU
WF2702T: RK3288 Quad-core cortex A17WF2703T: RK3399 Dual-core A72+Quad-core A53WF2706T: RK3566 Quad
RAM
WF2702T: 2GBWF2703T: 2GB (Optional 4GB)WF2706T: 2GB (Optional 4GB)WF2708T: 2GB (Optional 4GB)WF2705T
ROM
WF2702T: 16GBWF2703T: 16GB (Optional 32GB/64GB)WF2706T: 16GB (Optional 32GB/64GB)WF2708T: 16GB (Opti
Operating System
WF2702T: Android 5.1/6.0/8.1/10.0WF2703T: Android 7.1/10.0WF2706T: Android 11WF2708T: Android 11WF27
Dimensions
654 x 394.2 x 32.5 mm (L × W × D)
WiFi
WF2702T: IEEE 802.11b/g/nWF2703T: IEEE 802.11b/g/n/a/acWF2706T: IEEE 802.11b/g/nWF2708T: IEEE 802.11
USB
WF2703T: USB 3.0 HostWF2706T: USB 3.0 HostWF2708T: USB 3.0 HostWF2705T: USB 3.0 Host
USB Type-C
WF2705T: Full Function ( Except for charging function )
Mini USB
WF2702T: USB OTGWF2703T: USB OTGWF2706T: USB OTGWF2708T: USB OTG
HDMI
WF2702T: HDMI outputWF2703T: HDMI outputWF2706T: HDMI outputWF2708T: HDMI outputWF2705T: HDMI input
Power Port
DC power input
Video Format
WF2702T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4KWF2703T: MPEG-1, MPE
Audio Format
MP3/WMA/AAC, etc
WF2702T: JPEGWF2703T: JPEGWF2706T: JPEGWF2708T: JPEG/PNGWF2705T: JPEG/PNG
Color
Black

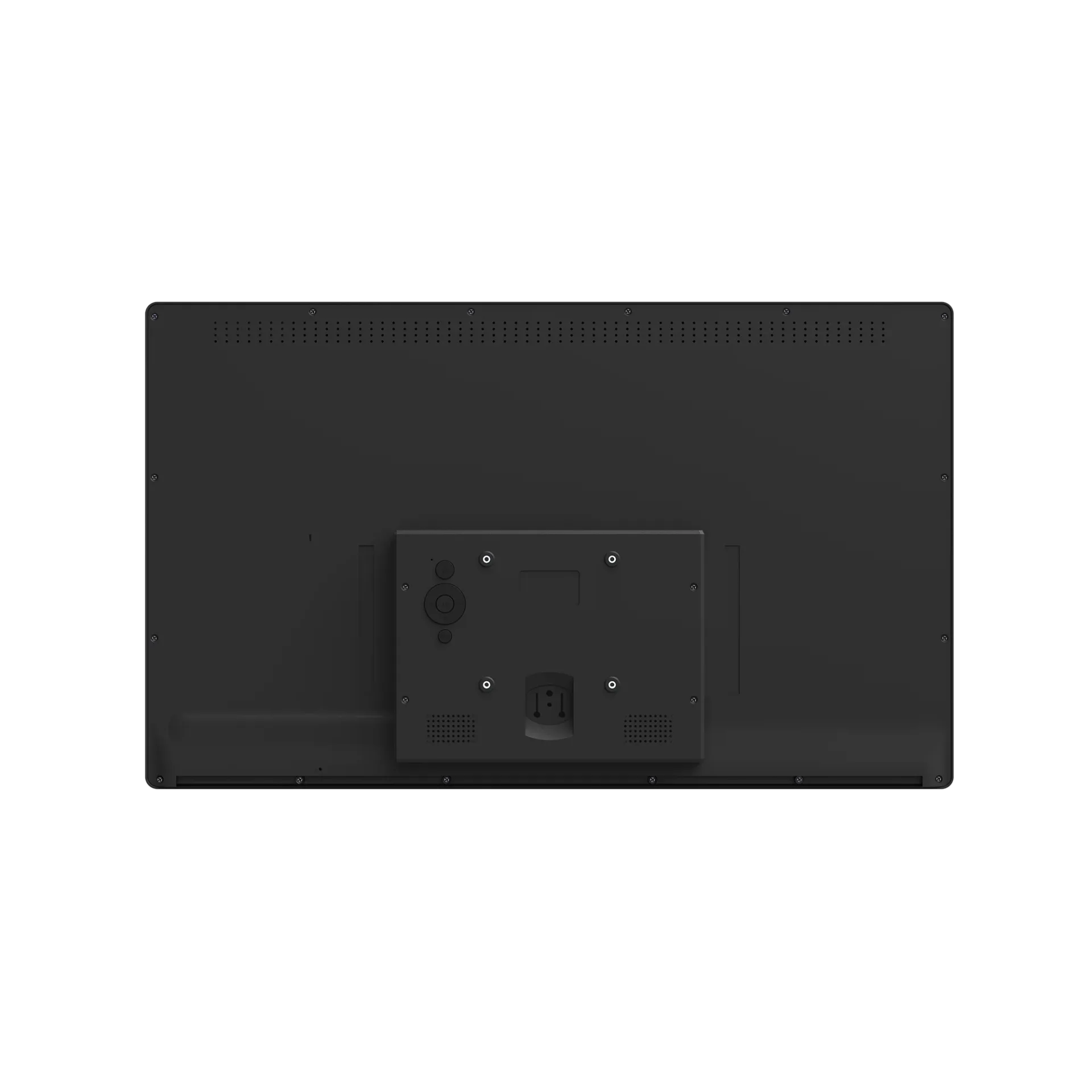

VESA
100mm × 100mm
Speaker
3W*2
Microphone
WF2703T: Single microphoneWF2706T: Single microphoneWF2708T: Single microphoneWF2705T: Single microp
Camera
Routine angle 5.0MP
Language
Multi-language
Certificates
CE/FCC
Operating Temperature
0℃-40℃
Adapter
12V/4A
User Manual
×1
Stand
×1
Related
You May Also Like
Touchscreen Signages 8"-55"

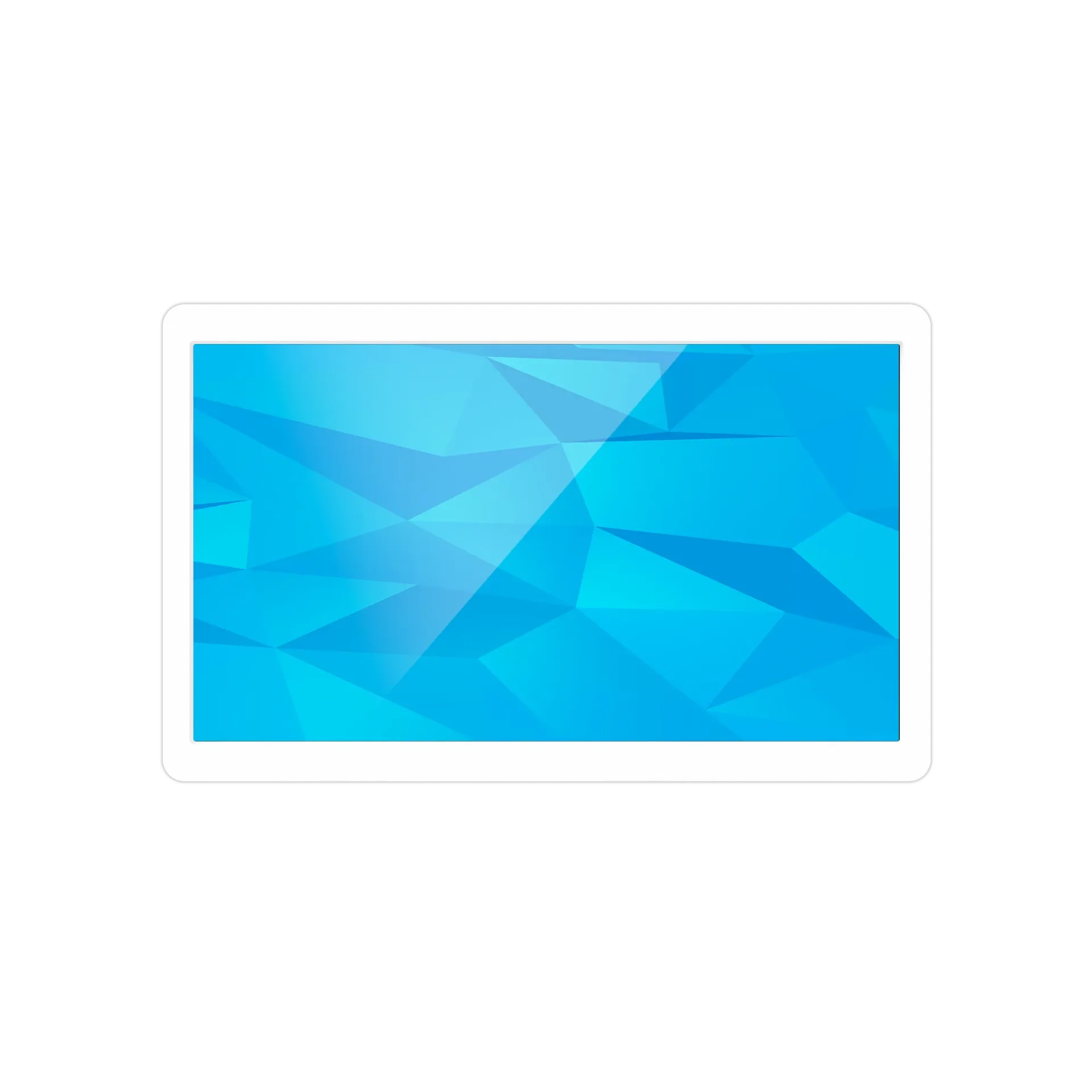

NW1493T 14" Touchscreen Signage
Touchscreen Signages 8"-55"
NW1693T 16" Touchscreen Signage
Touchscreen Signages 8"-55"

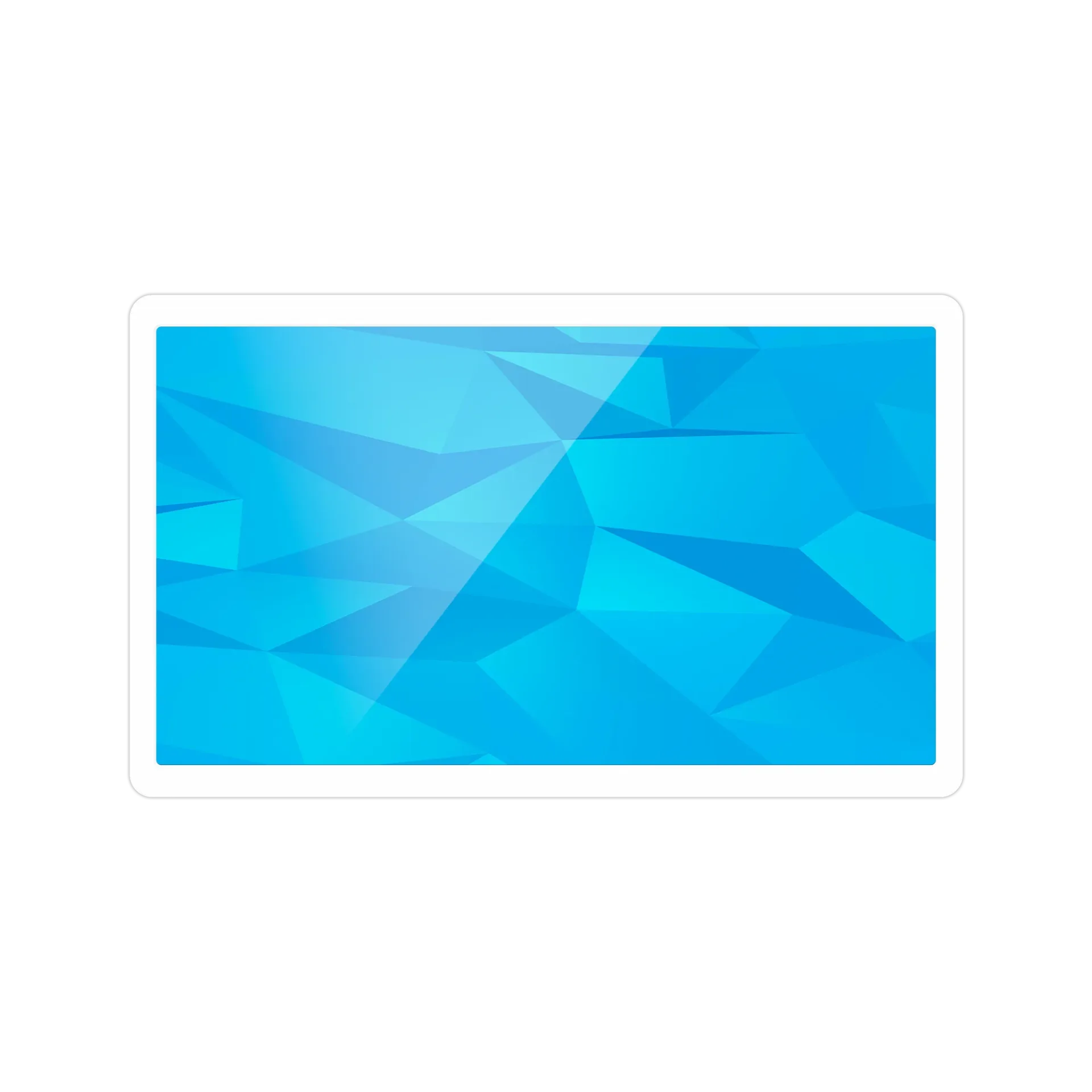

NW2193T 21.5" Touchscreen Signage
