Touchscreen Signages 8"-55"

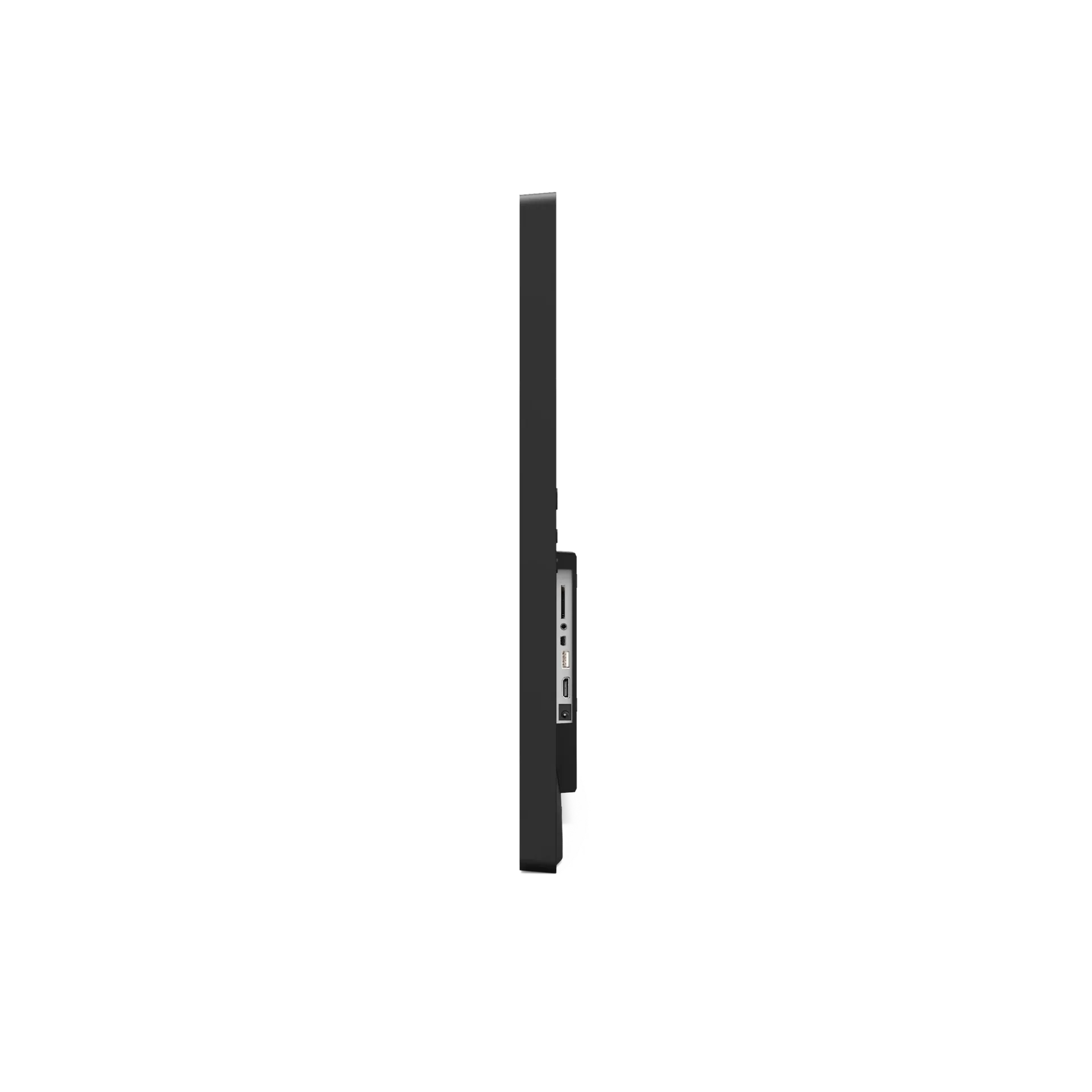

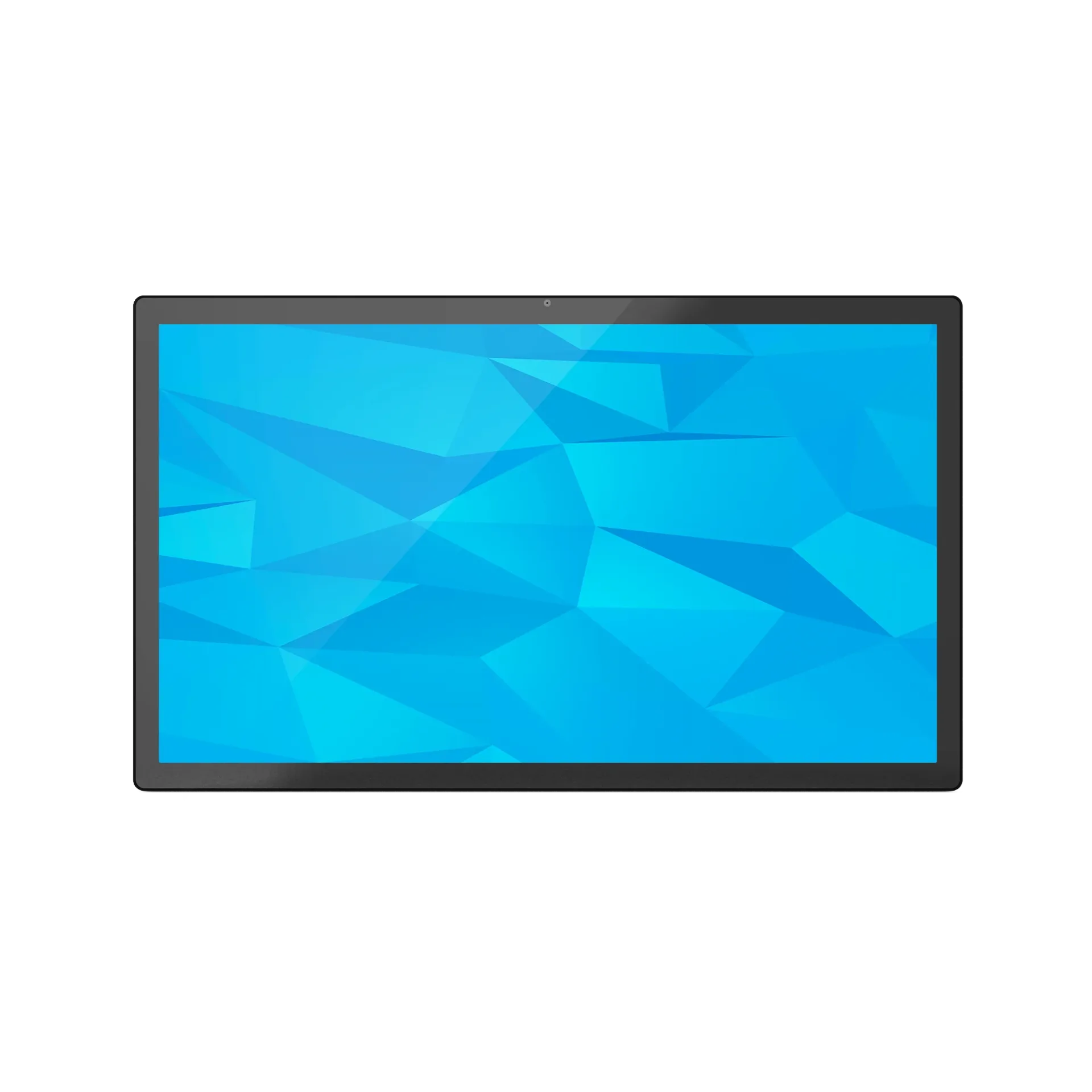

WF3202T 32" Touchscreen Signage
Quick Specifications
- Diagonal Size32-inch (LCD)
- Resolution1920 x 1080 pixels
- Aspect Ratio16:9
- Viewing AngleR/L 85/85, U/D 85/85
- Display ModeNormally black
- Contrast RatioWF3202T: 1000:1WF3203T: 3000:1WF3206T: 3000:1WF3208T: 3000:1WF3205T: 3000:1
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
32-inch (LCD)
Resolution
1920 x 1080 pixels
Aspect Ratio
16:9
Viewing Angle
R/L 85/85, U/D 85/85
Display Mode
Normally black
Contrast Ratio
WF3202T: 1000:1WF3203T: 3000:1WF3206T: 3000:1WF3208T: 3000:1WF3205T: 3000:1
Luminance
250 nits
Number of Points
10-point
CPU
WF3202T: RK3288 Quad-core cortex A17WF3203T: RK3399 Dual-core A72+Quad-core A53WF3206T: RK3566 Quad-
RAM
WF3202T: 2GBWF3203T: 2GB (Optional 4GB)WF3206T: 2GB (Optional 4GB)WF3208T: 2GB (Optional 4GB)WF3205T
ROM
WF3202T: 16GBWF3203T: 16GB (Optional 32GB/64GB)WF3206T: 16GB (Optional 32GB/64GB)WF3208T: 16GB (Opt
Operating System
WF3202T: Android 5.1/6.0/8.1/10.0WF3203T: Android 7.1/10.0WF3206T: Android 11WF3208T: Android 11WF32
Dimensions
750.4 x 449.7 x 42 mm(L × W × D)
WiFi
WF3202T: IEEE 802.11b/g/nWF3203T: IEEE 802.11a/b/g/n/acWF3206T: IEEE 802.11b/g/nWF3208T: IEEE 802.11
USB
WF3203T: USB 3.0 HostWF3206T: USB 3.0 HostWF3208T: USB 3.0 HostWF3205T: USB 3.0 Host
Mini USB
WF3202T: USB OTGWF3203T: USB OTGWF3206T: USB OTGWF3208T: USB OTG
USB Type-C
WF3205T: Full Function (Except for charging function)
HDMI
WF3202T: HDMI outputWF3203T: HDMI outputWF3206T: HDMI outputWF3208T: HDMI outputWF3205T: HDMI input
Power Port
DC power input
Video Format
WF3202T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4KWF3203T: MPEG-1, MPE
Audio Format
MP3/WMA/AAC, etc
WF3202T: JPEGWF3203T: JPEGWF3206T: JPEGWF3208T: JPEG/PNGWF3205T: JPEG/PNG
Color
Black
VESA
100mm × 100mm
Speaker
3W*2
Microphone
WF3203T: Single microphoneWF3206T: Single microphoneWF3208T: Single microphoneWF3205T: Single microp
Camera
Routine angle 5.0MP
Language
Multi-language
Certificates
CE/FCC
Operating Temperature
0℃-40℃
Adapter
12V/5A
User Manual
×1
Stand
×1
