Touchscreen Signages 8"-55"

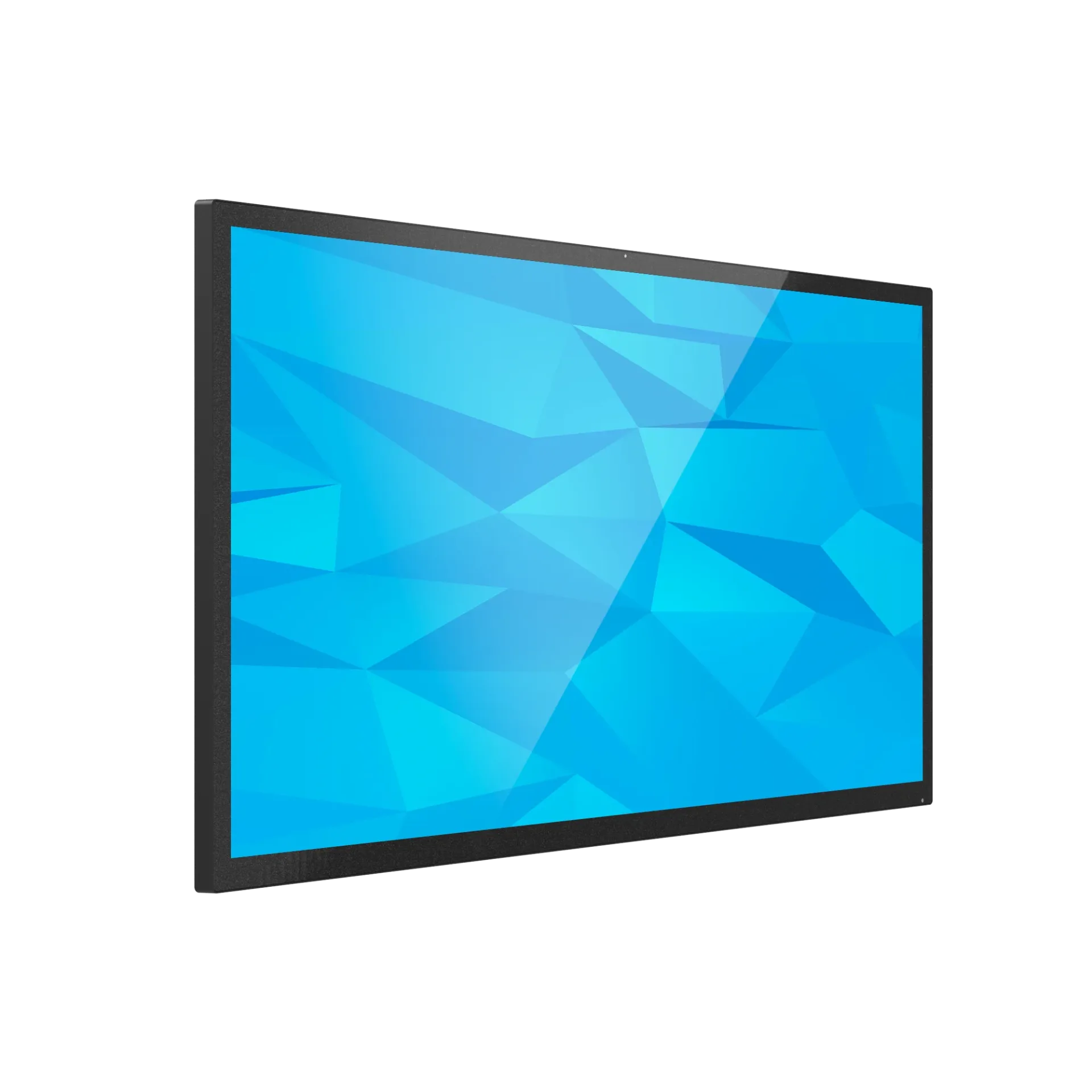

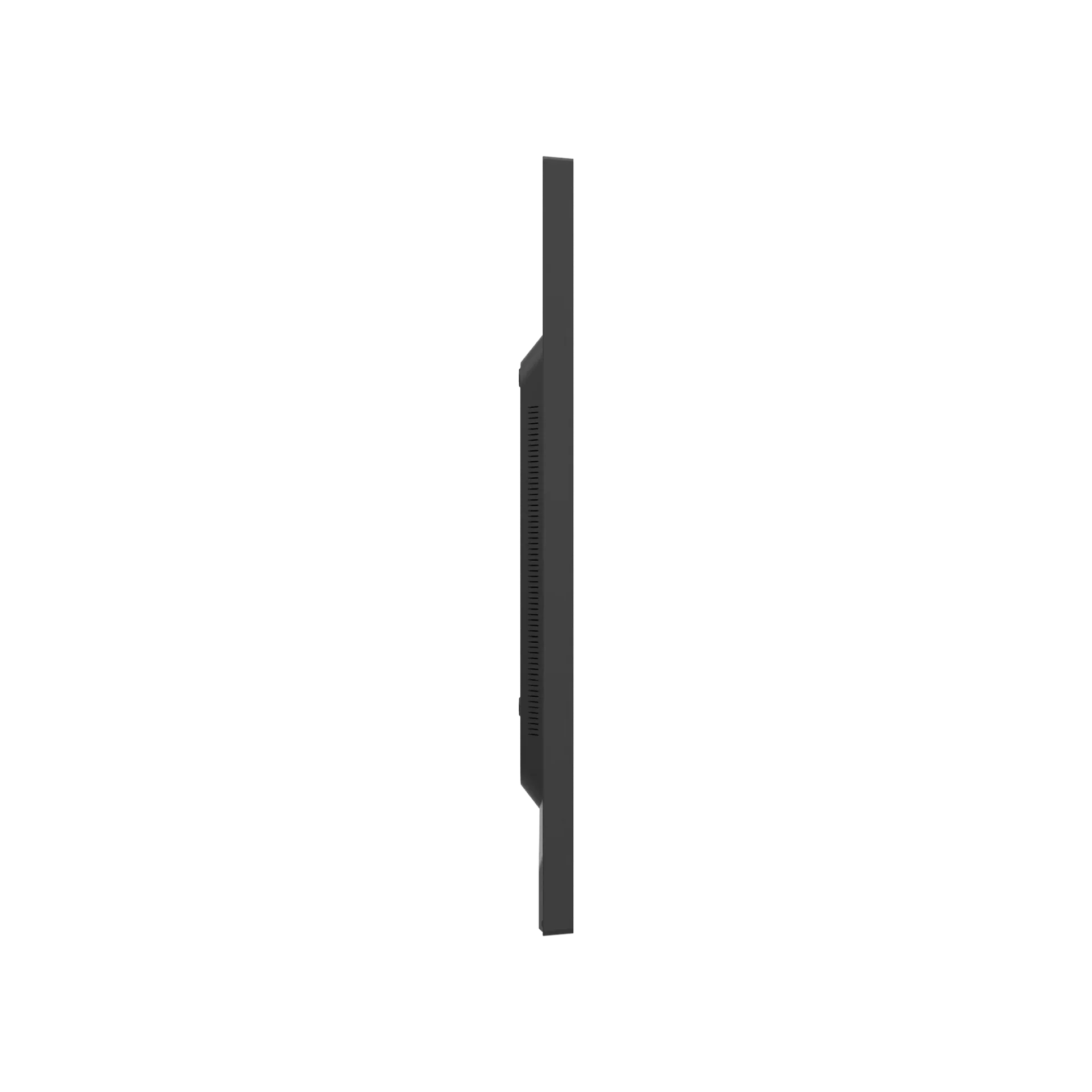

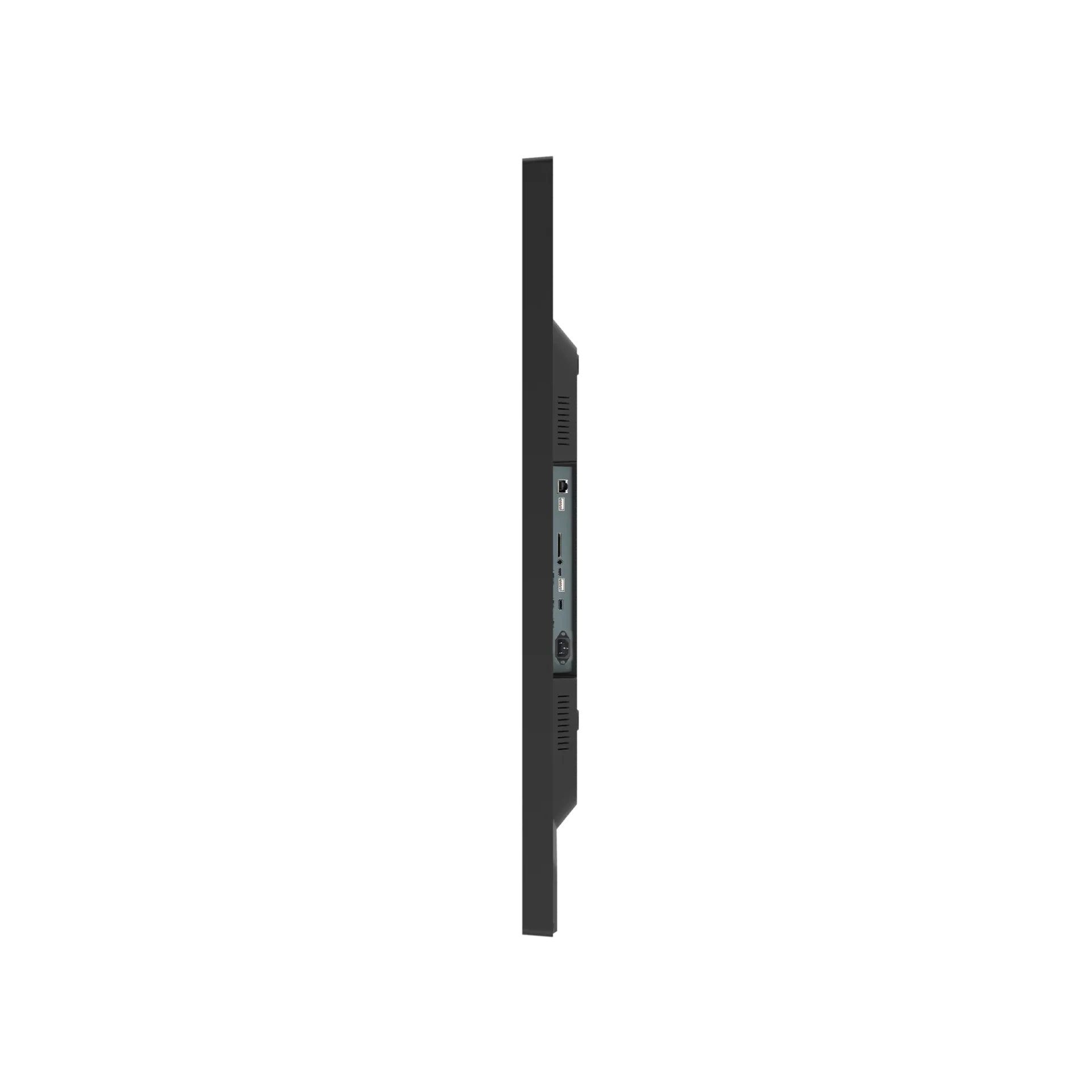

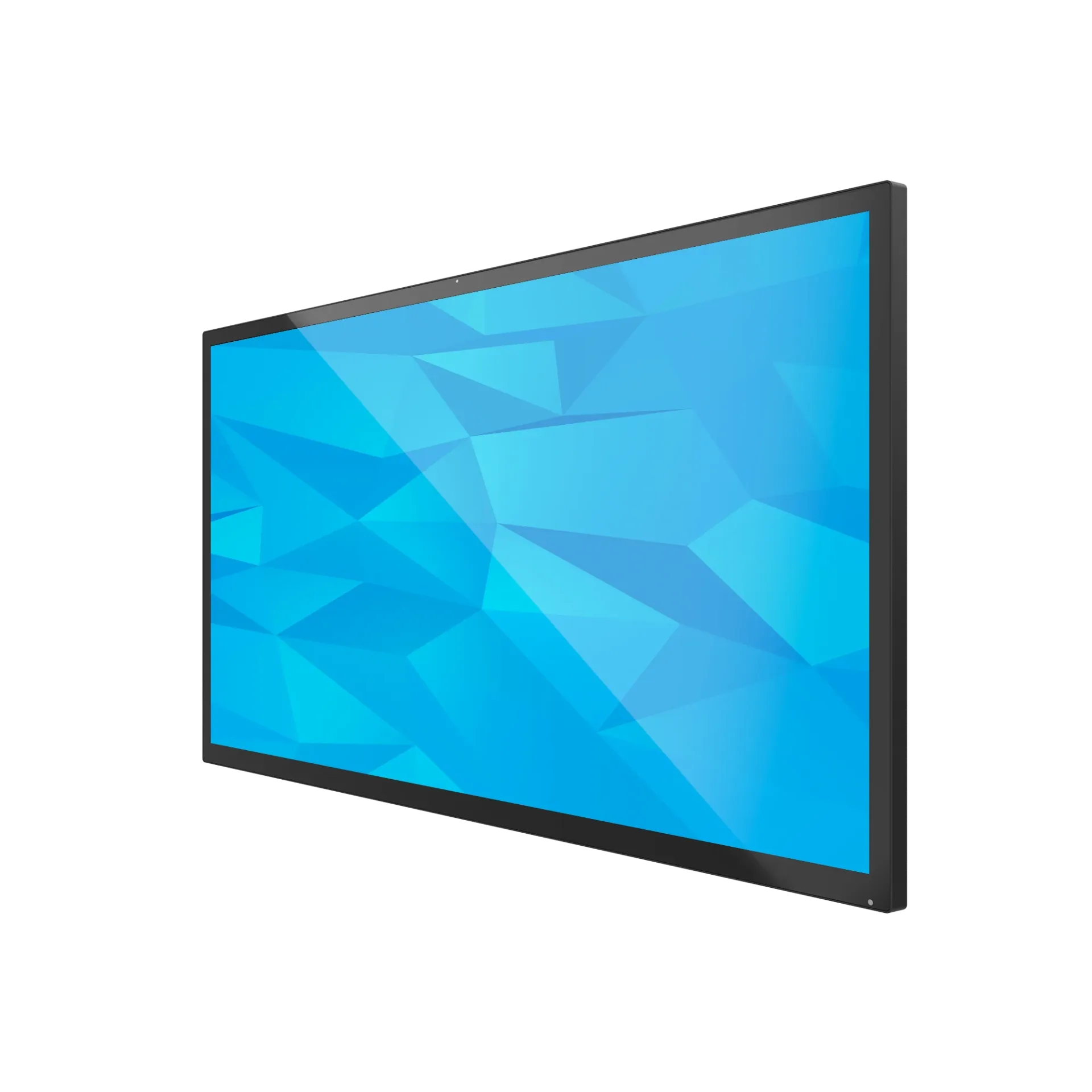

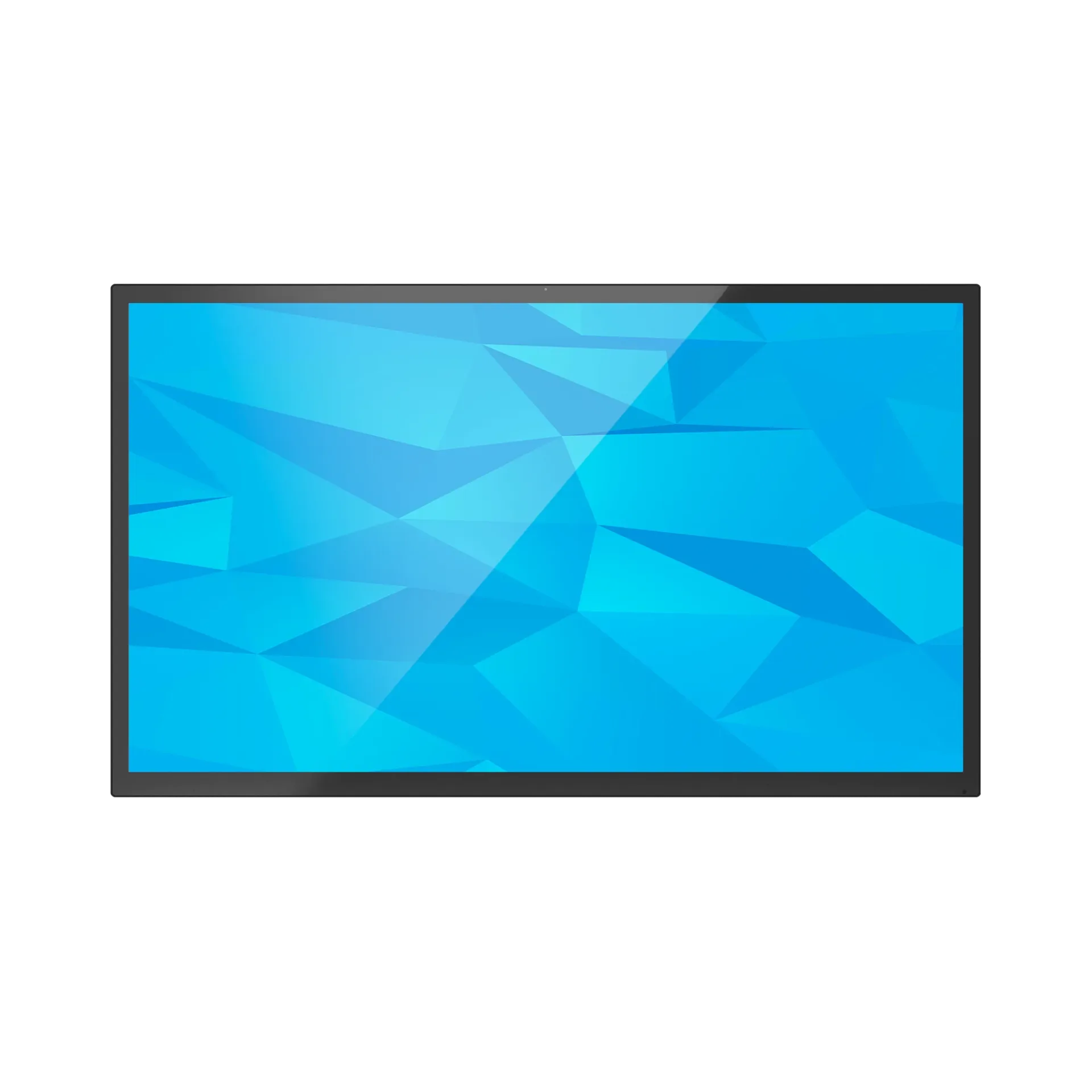

WF5502T 55" Touchscreen Signage
Quick Specifications
- Diagonal Size55-inch (LCD)
- Resolution1920 x 1080 pixels
- Aspect Ratio16:9
- Viewing AngleWF5502T: R/L 85/85, U/D 85/85WF5503T: R/L 89/89, U/D 89/89WF5506T: R/L 89/89, U/D 89/89WF5508T: R/L
- Display ModeNormally black
- Contrast Ratio1200:1
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
55-inch (LCD)
Resolution
1920 x 1080 pixels
Aspect Ratio
16:9
Viewing Angle
WF5502T: R/L 85/85, U/D 85/85WF5503T: R/L 89/89, U/D 89/89WF5506T: R/L 89/89, U/D 89/89WF5508T: R/L
Display Mode
Normally black
Contrast Ratio
1200:1
Luminance
300 nits
Number of Points
10-point
CPU
WF5502T: RK3288 Quad-core cortex A17WF5503T: RK3399 Dual-core A72+Quad-core A53WF5506T: RK3566 Quad-
RAM
WF5502T: 2GBWF5503T: 2GB (Optional 4GB)WF5506T: 2GB (Optional 4GB)WF5508T: 2GB (Optional 4GB)WF5505T
ROM
WF5502T: 16GBWF5503T: 16GB (Optional 32GB/64GB)WF5506T: 16GB (Optional 32GB/64GB)WF5508T: 16GB (Opti
Operating System
WF5502T: Android 5.1/6.0/8.1/10.0WF5503T: Android 7.1/10.0WF5506T: Android 11WF5508T: Android 11WF55
Dimensions
1263.18 × 747.28 × 56.50 mm (L × W × D)
WiFi
WF5502T: IEEE 802.11b/g/nWF5503T: IEEE 802.11a/b/g/n/acWF5506T: IEEE 802.11b/g/nWF5508T: IEEE 802.11
USB
WF5503T: USB 3.0 HostWF5506T: USB 3.0 HostWF5508T: USB 3.0 HostWF5505T: USB 3.0 Host
USB Type-C
WF5505T: Full Function (Except for charging function)
Mini USB
WF5502T: USB OTGWF5503T: USB OTGWF5506T: USB OTGWF5508T: USB OTG
HDMI
WF5502T: HDMI outputWF5503T: HDMI outputWF5506T: HDMI outputWF5508T: HDMI outputWF5505T: HDMI input
Video Format
WF5502T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4KWF5503T: MPEG-1, MPE
Audio Format
MP3/WMA/AAC, etc
WF5502T: JPEGWF5503T: JPEGWF5506T: JPEGWF5508T: JPEG/PNGWF5505T: JPEG/PNG
Color
Black

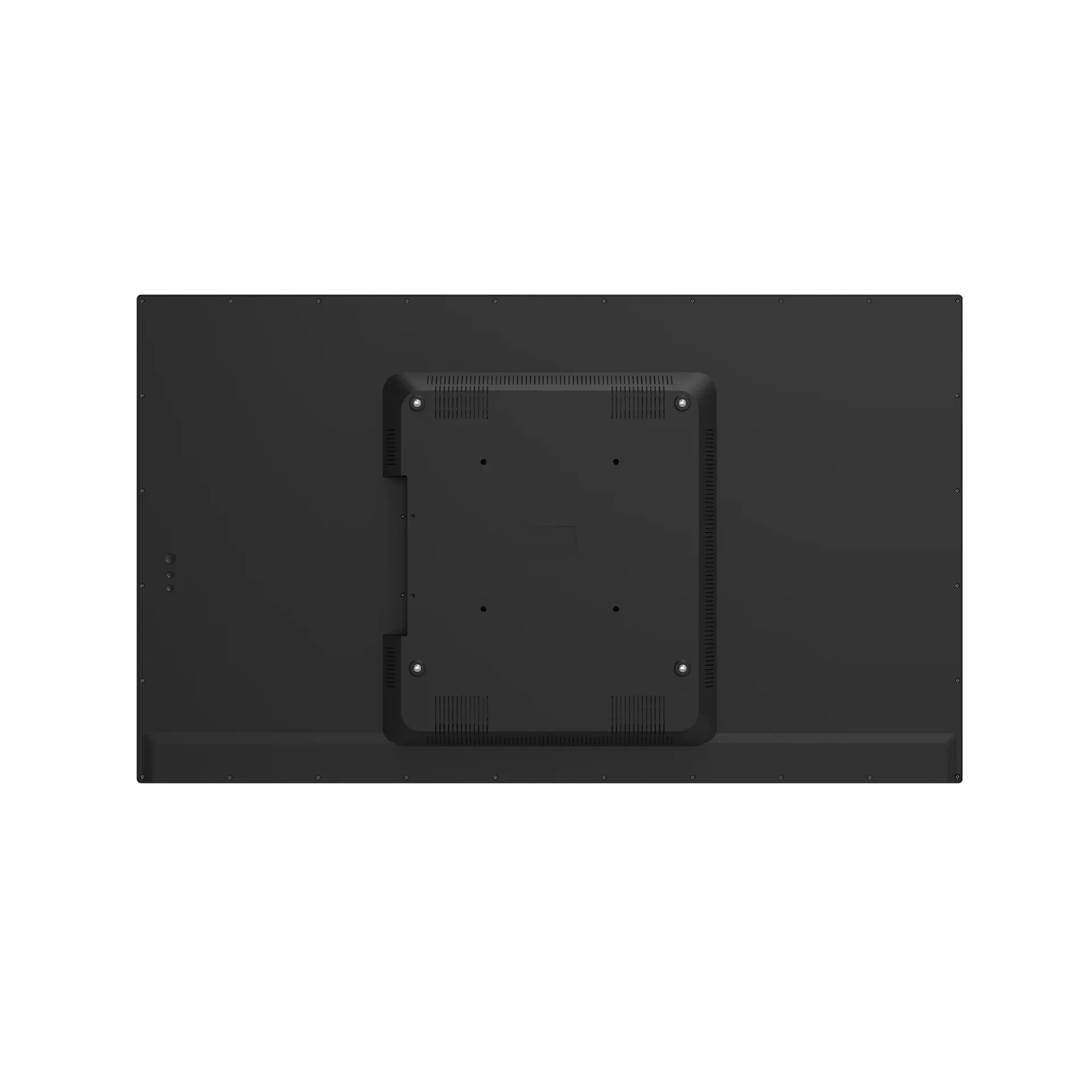

VESA
400mm × 400mm
Speaker
5W*2
Microphone
WF5503T: Single microphoneWF5506T: Single microphoneWF5508T: Single microphoneWF5505T: Single microp
Camera
Routine angle 5.0 MP
Language
Multi-language
Certificates
CE/FCC
Operating Temperature
0℃-40℃
User Manual
×1
