Touchscreen Signages 8"-55"

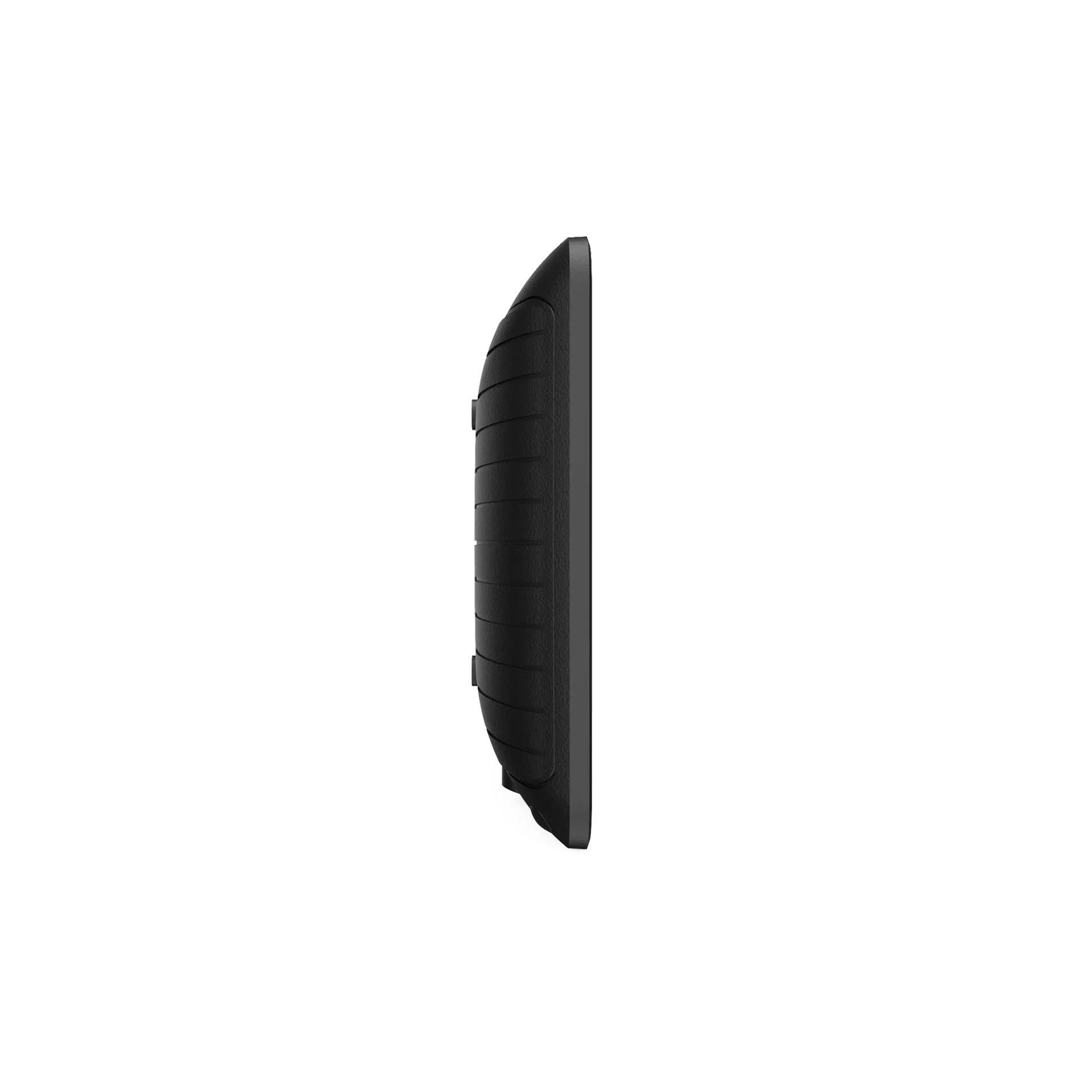

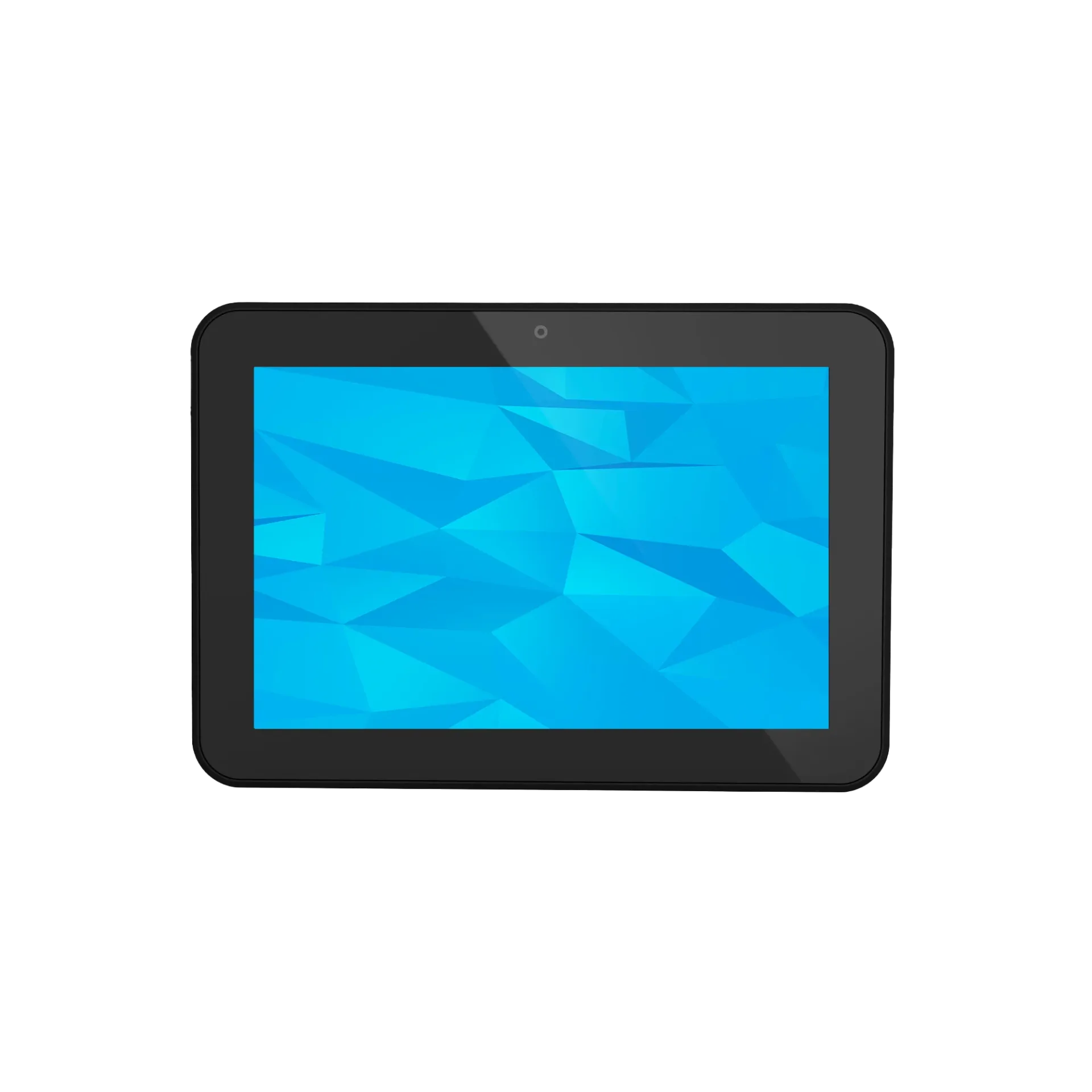

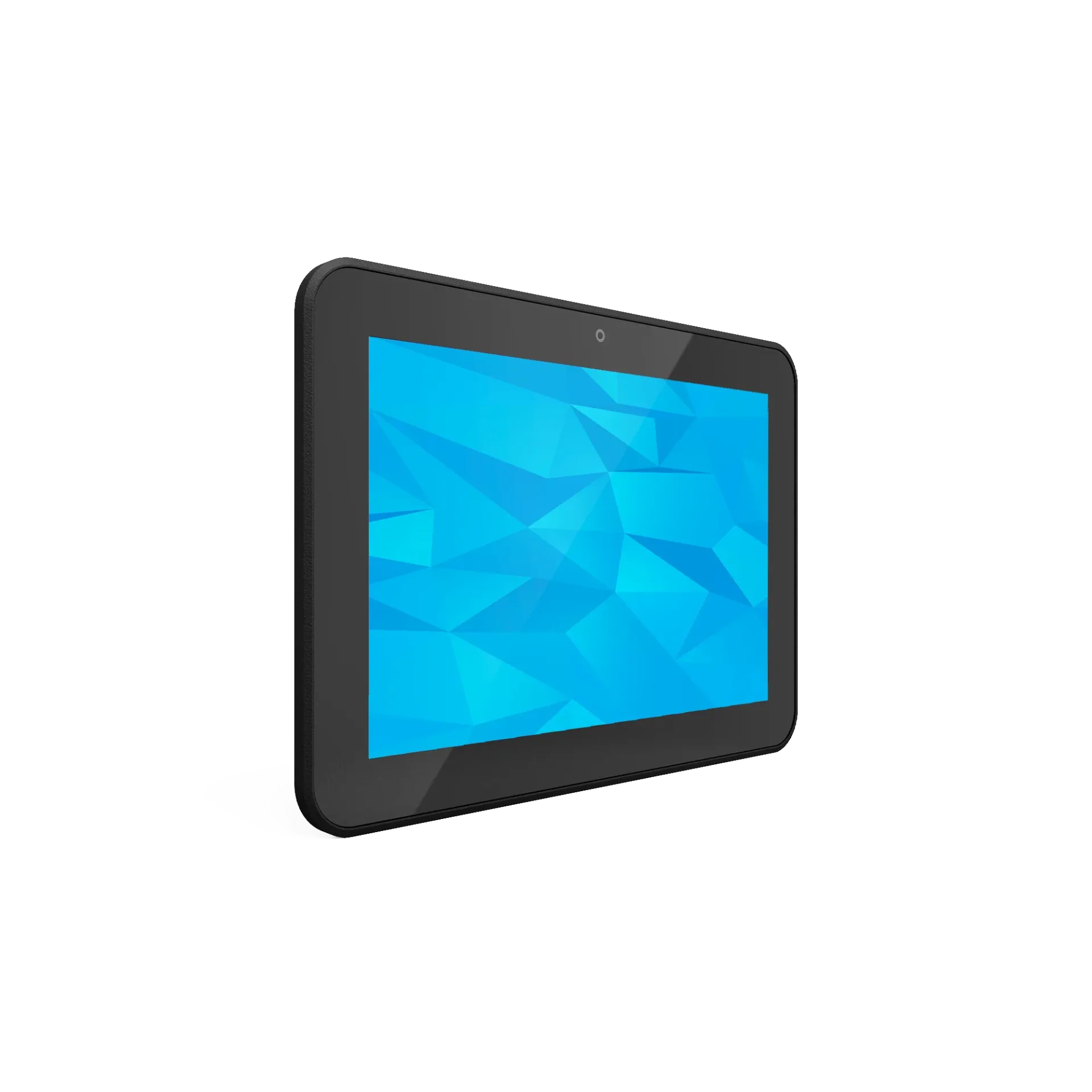

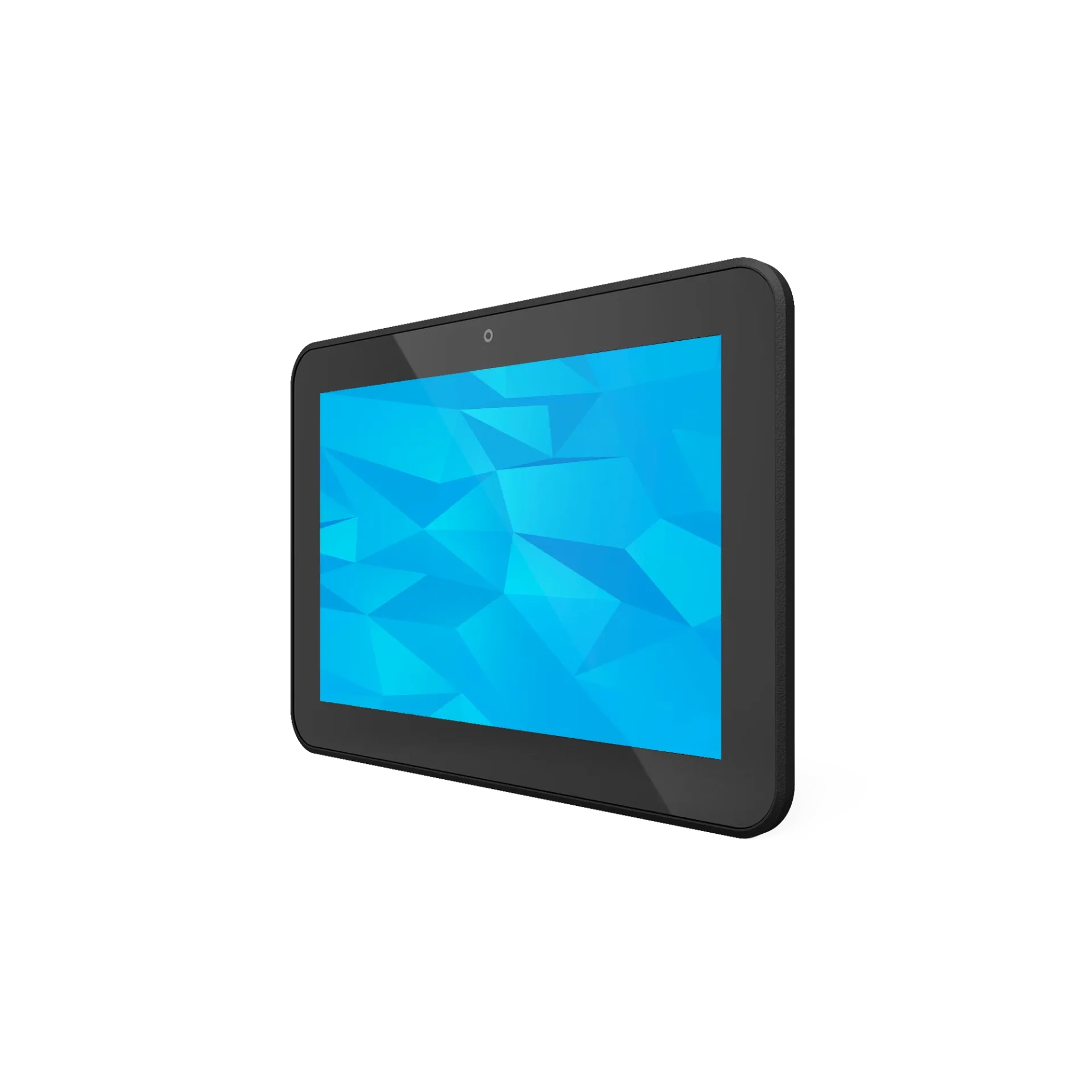

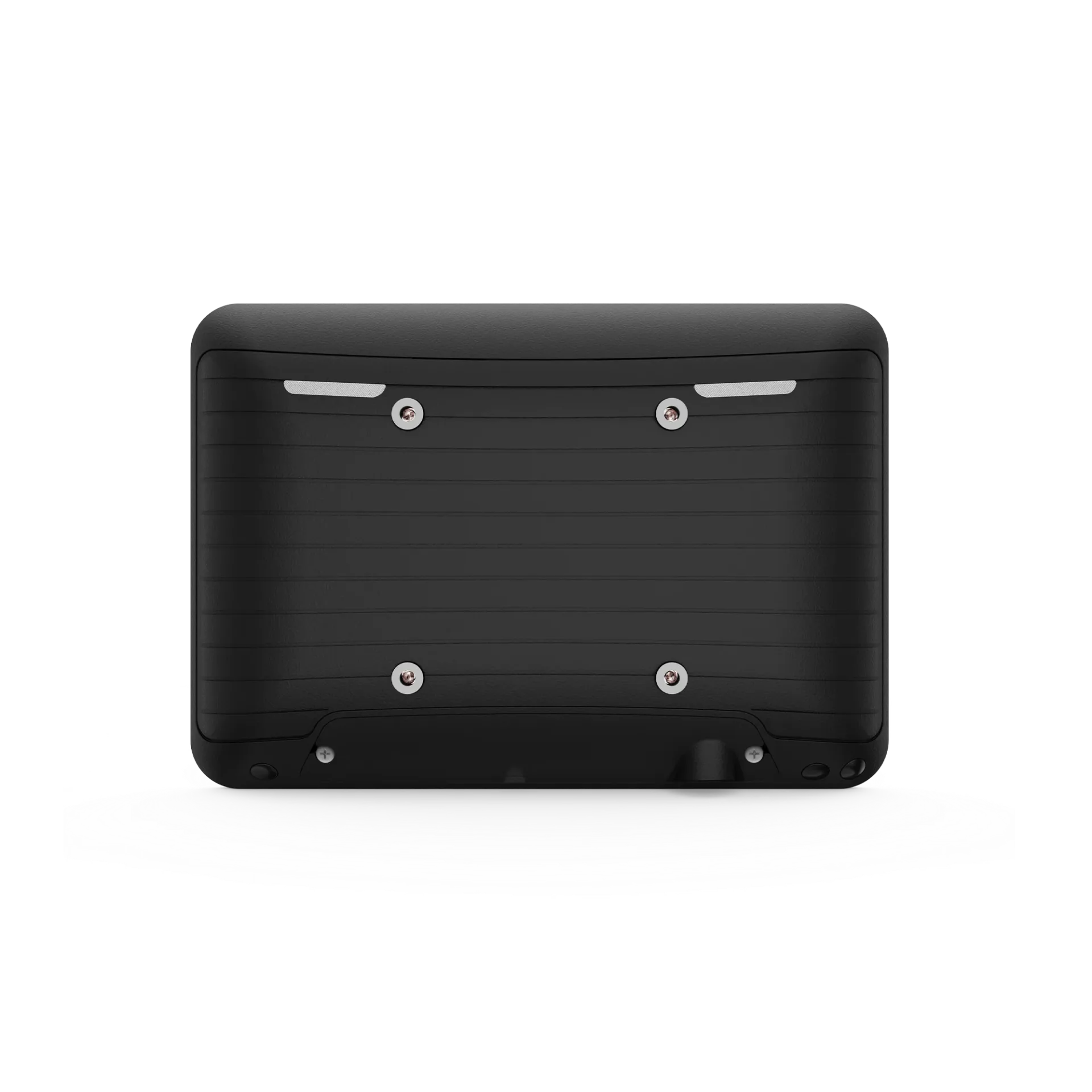

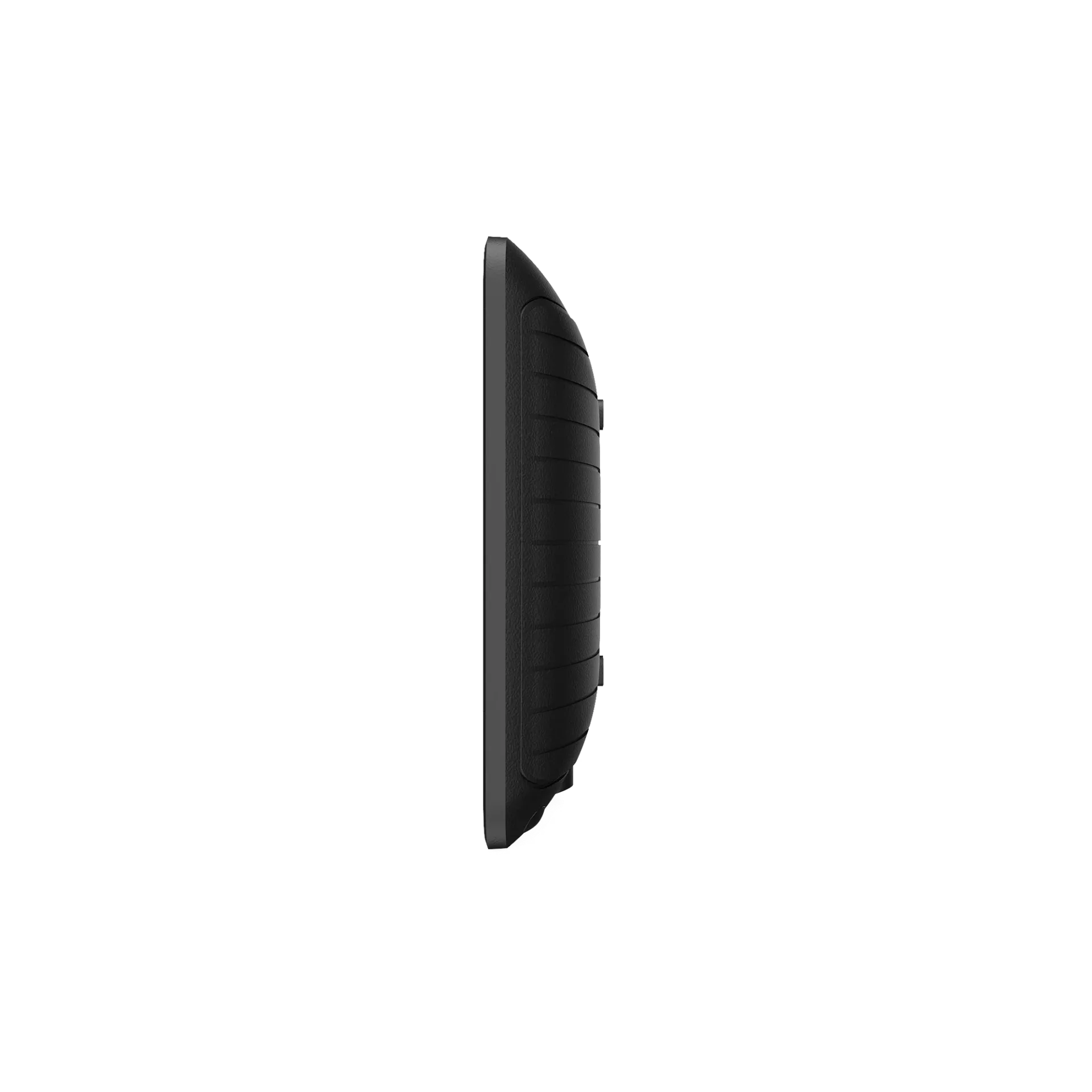

WF8382T 8" Touchscreen Signage
Quick Specifications
- Diagonal Size8-inch
- Panel TypeLCD
- Resolution1280 x 800 pixels
- Aspect Ratio16:10
- Display ModeNormally black
- Contrast Ratio800:1
Product Overview
Detailed description is not available.
Technical Specifications
Diagonal Size
8-inch
Panel Type
LCD
Resolution
1280 x 800 pixels
Aspect Ratio
16:10
Display Mode
Normally black
Contrast Ratio
800:1
Luminance
280 nits
Number of Points
5-point
CPU
WF8382T: RK3288 Quad-core cortex A17WF8386T: RK3566 Quad-core cortex A55WF8388T: RK3568 Quad-core co
RAM
WF8382T: 2GBWF8386T: 2GB (Optional 4GB)WF8388T: 2GB (Optional 4GB)
ROM
WF8382T: 16GBWF8386T: 16GB (Optional 32GB)WF8388T: 16GB (Optional 32GB)
Operating System
WF8382T: Android 5.1/8.1/10.0WF8386T: Android 11WF8388T: Android 11
Dimensions
212.2 × 147.6 × 31 mm (L × W × D)
WiFi
802.11b/g/n
USB
USB host 2.0*2
Micro USB
Micro USB OTG
HDMI
HDMI output
Power Port
DC power input
RJ45
Ethernet interface, Optional POE IEEE802.3at, POE+, class 4, 25.5W
Earphone
3.5mm earphone
Video Format
MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
Audio Format
MP3/WMA/AAC, etc
WF8382T: JPEGWF8386T: JPEGWF8388T: JPEG/PNG
VESA
75mm × 75mm
Speaker
2W*2
Microphone
Single Microphone
Camera
Routine angle 2.0MP
Language
Multi-language
Certificates
CE/FCC
Operating Temperature
0℃-40℃
Adapter
12V/1.5A
User Manual
×1
